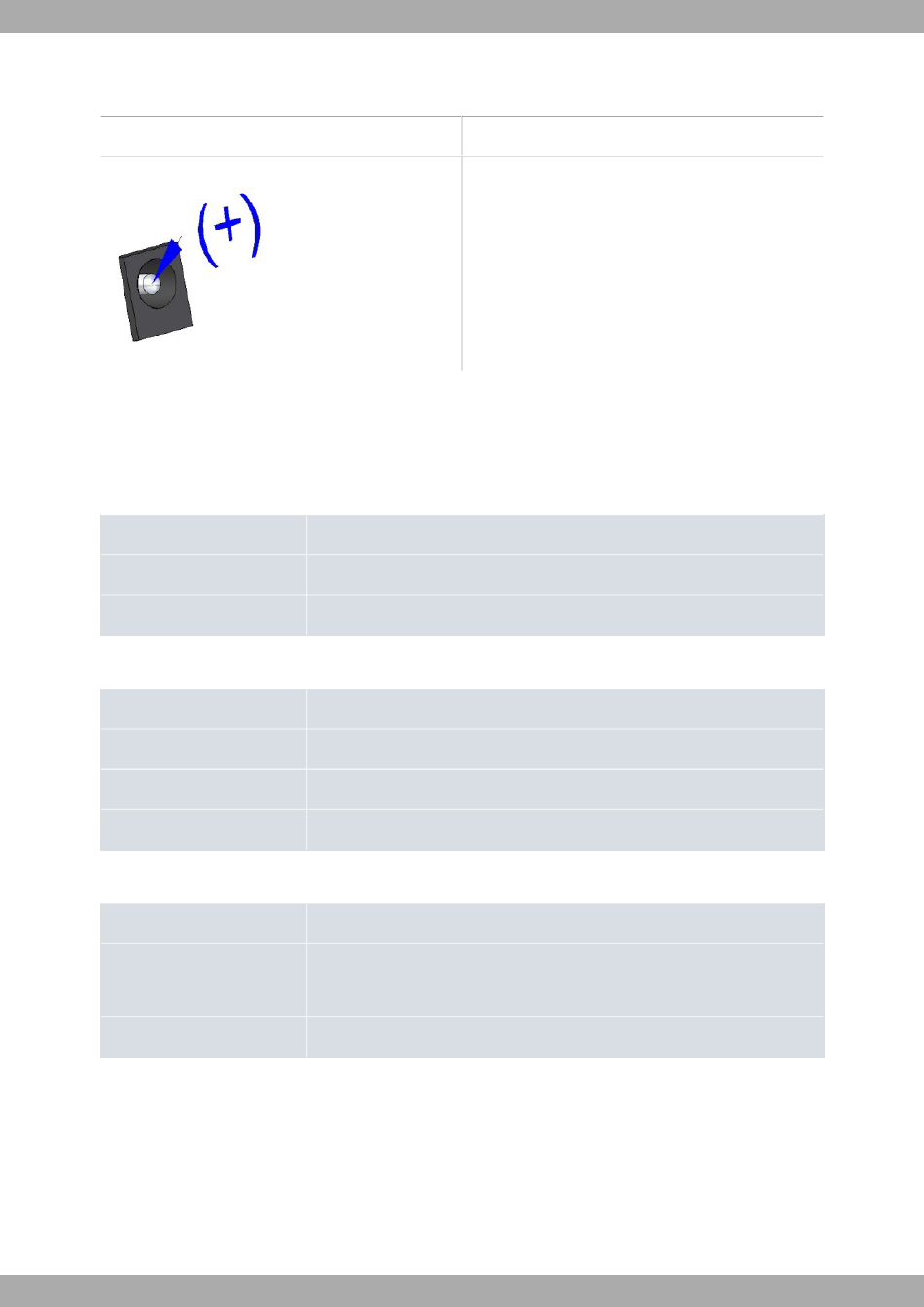

A.4.5 Power supply connector
Jack 5.5/2.5mm
A.5 Technical specifications
A.5.1 Hardware architecture
PROCESSORS
MEMORY
STORAGE UNIT
A.5.2 LAN interface
PROTOCOLS
PORTS
SPEED
CONNECTOR
A.5.3 WAN Base-T interface
STANDARDS
SPEED
CONNECTOR
Teldat Connect-FW
PIN
Internal -> POSITIVE
External -> NEGATIVE
Freescale LayerScape.
1 GByte (DDR4)
eMMC Memory (4 GBytes).
Ethernet (802.3).
4-port MDI/MDX auto-detection.
10/100/1000 Mbps (Base-T).
RJ45 female.
Ethernet (802.3).
WAN-1: 10/100/1000 Mbps (Base-T).
WAN-2: 10/100/1000/2500 Mbps (Base-T).
RJ45 female.
