12.3 Wire Connection Method of Power Supply Unit Connector for CN23 (External Contactor Control Connector)

12.3 Wire Connection Method of Power Supply Unit Connector for CN23
(External Contactor Control Connector)

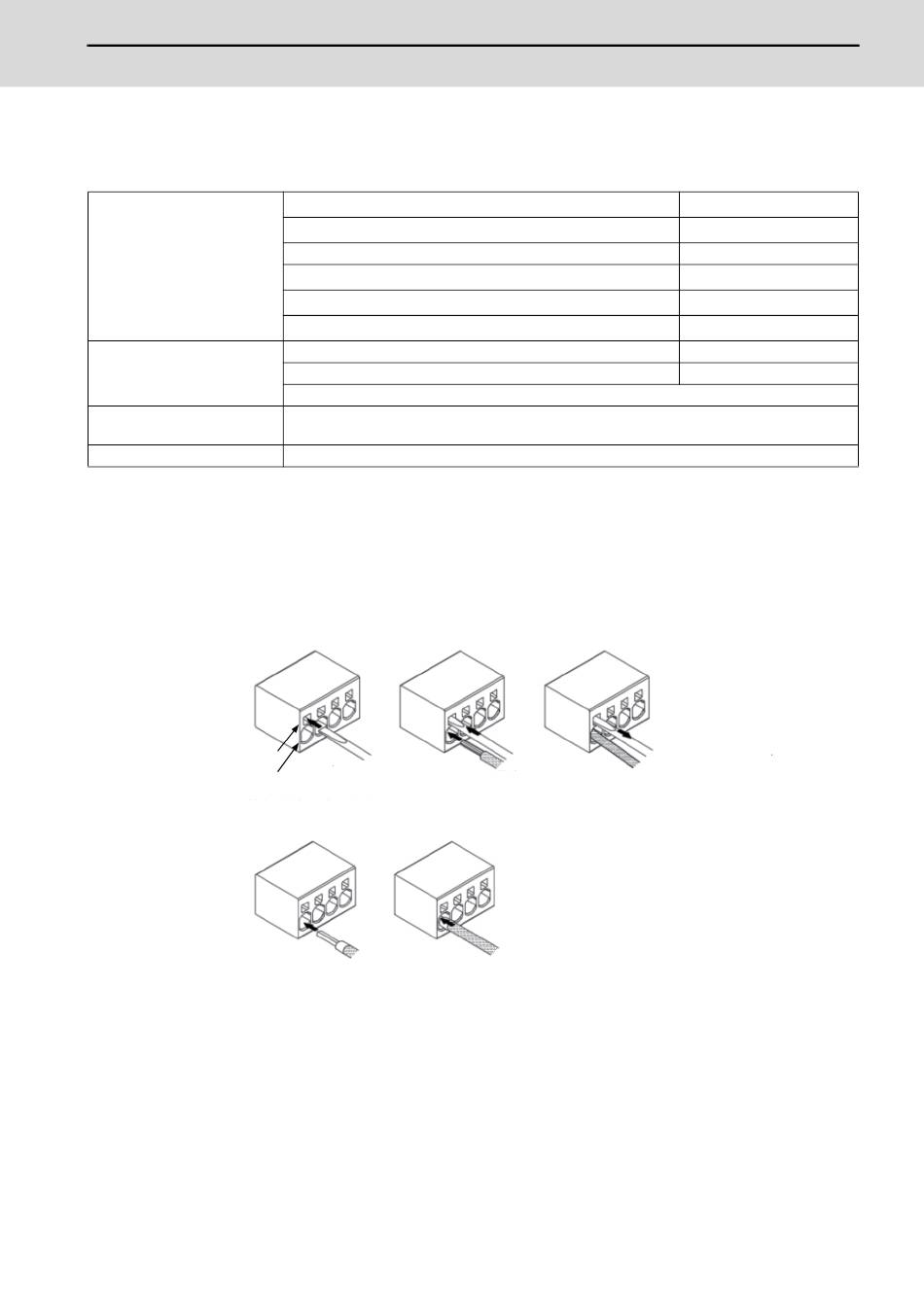

(1) Strip the wire sheath.
Applicable wire
Length of ferrule
Cable length after stripping
Recommended screwdriver
(2) Connect a ferrule to the end of the wire as required.
(3) Insert a flat-blade screwdriver with an edge width of 3.5 mm or less and an edge thickness of 0.6 mm or less completely
into the screwdriver insertion slot (*2). With the screwdriver inserted, insert the wire completely to the end of a wire inser-
tion slot. Remove the screwdriver.
(*1) The actual connector has 2 pins.
(*2) Insert the flat blade screwdriver at an angle to the wire insertion slot to prevent damaging the connector.
Screwdriver insertion slot
Wire insertion slot
* When using Push-In function
Insert a wire *1 or a twisted wire with a ferrule completely to the end of a wire insertion slot.
Solid wire
Twisted wire
AWG
Twisted wire with a ferrule (without plastic sleeve)
Twisted wire with a ferrule (with plastic sleeve)
TWIN two wires with a ferrule (with plastic sleeve)
Without plastic sleeve
With plastic sleeve
Crimping tools CRIMPF0X6 (1212034)
15 mm for a bare wire
Refer to the specifications for a ferrule when using it.
SZF 1-0,6x3,5 (1204517)
Flat-blade
screwdriver
Remove the screwdriver
Wire
to connect the wire.
*1
Depending on wire thickness and hardness,
some wires cannot be used.
71
2
0.2 to 10 mm
2
0.2 to 6 mm
24 to 8
2
0.25 to 6 mm
2
0.25 to 6 mm
2
0.25 to 1.5 mm
10 to 15 mm
12 to 15 mm
