Operation
6.5

Menu

6
28

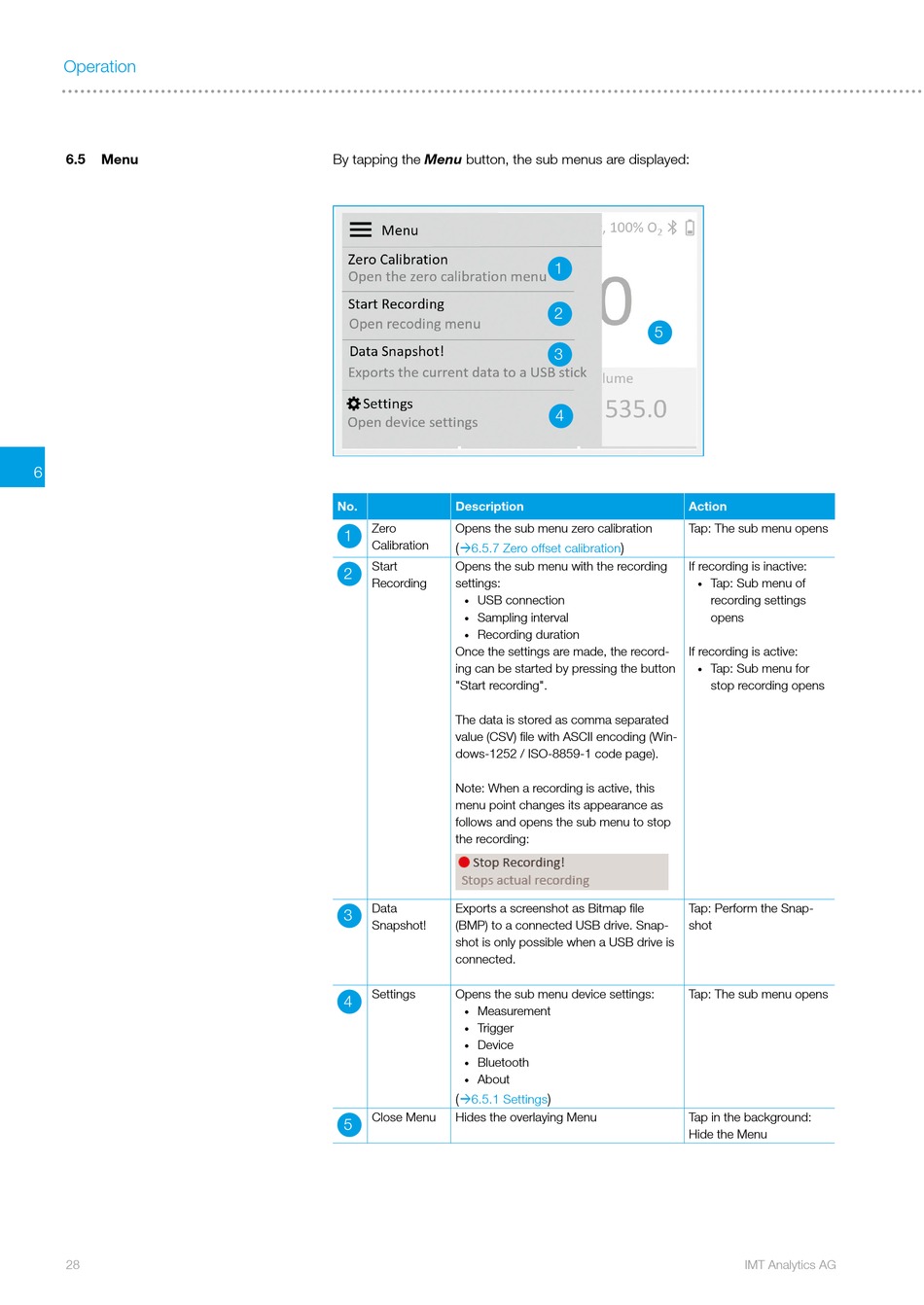

By tapping the Menu button, the sub menus are displayed:
No. Description
Zero Opens the sub menu zero calibration
1
Calibration
(
6.5.7 Zero offset calibration
Start Opens the sub menu with the recording
2
Recording settings:
USB connection
•
Sampling interval
•
Recording duration
•
Once the settings are made, the record-
ing can be started by pressing the button
"Start recording".
The data is stored as comma separated
value (CSV) file with ASCII encoding (Win-
dows-1252 / ISO-8859-1 code page).
Note: When a recording is active, this
menu point changes its appearance as
follows and opens the sub menu to stop
the recording:
Data Exports a screenshot as Bitmap file
3
Snapshot! (BMP) to a connected USB drive. Snap-
shot is only possible when a USB drive is
connected.
Settings Opens the sub menu device settings:
4
Measurement
•
Trigger
•
Device
•
Bluetooth
•
About
•
(
6.5.1 Settings
Close Menu Hides the overlaying Menu
5
1
2
5
3
4
Action
Tap: The sub menu opens
)
If recording is inactive:
Tap: Sub menu of
•
recording settings
opens
If recording is active:
Tap: Sub menu for
•
stop recording opens
Tap: Perform the Snap-
shot
Tap: The sub menu opens
)
Tap in the background:
Hide the Menu
