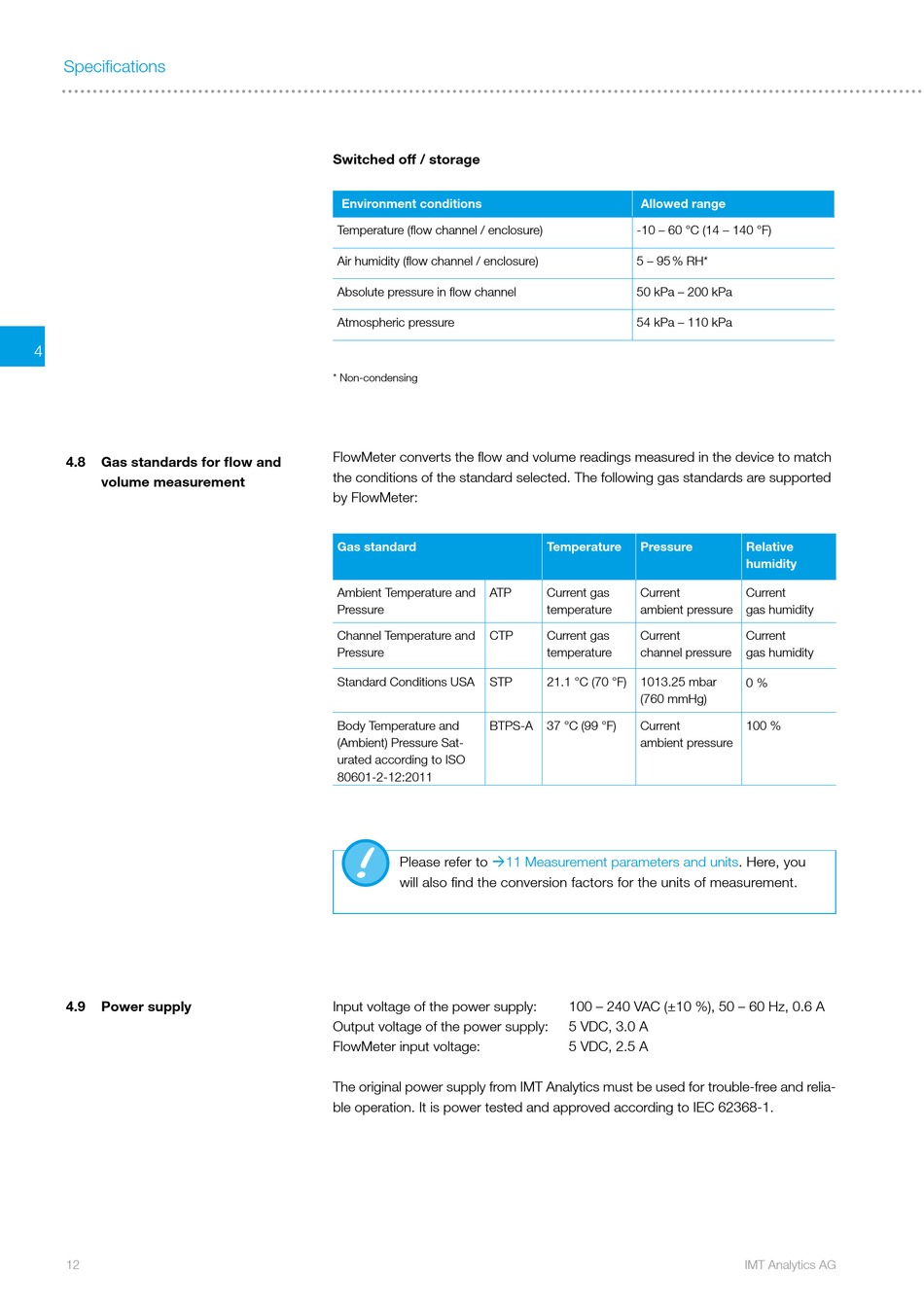

Specifications
4
4.8 Gas standards for flow and
volume measurement
4.9

Power supply

12
Switched off / storage
Environment conditions
Temperature (flow channel / enclosure)
Air humidity (flow channel / enclosure)
Absolute pressure in flow channel
Atmospheric pressure
* Non-condensing
FlowMeter converts the flow and volume readings measured in the device to match
the conditions of the standard selected. The following gas standards are supported
by FlowMeter:
Gas standard
Ambient Temperature and ATP
Pressure
Channel Temperature and CTP
Pressure
Standard Conditions USA STP
Body Temperature and BTPS-A
(Ambient) Pressure Sat-
urated according to ISO
80601-2-12:2011
Please refer to 11 Measurement parameters and
will also find the conversion factors for the units of measurement.
Input voltage of the power supply:
Output voltage of the power supply:
FlowMeter input voltage:
The original power supply from IMT Analytics must be used for trouble-free and relia-
ble operation. It is power tested and approved according to IEC 62368-1.
Allowed range
-10 – 60 °C (14 – 140 °F)
5 – 95 % RH*
50 kPa – 200 kPa
54 kPa – 110 kPa
Temperature Pressure
Current gas Current
temperature ambient pressure
Current gas Current
temperature channel pressure
21.1 °C (70 °F) 1013.25 mbar
(760 mmHg)
37 °C (99 °F) Current
ambient pressure
units. Here, you
100 – 240 VAC (±10 %), 50 – 60 Hz, 0.6 A
5 VDC, 3.0 A
5 VDC, 2.5 A
Relative
humidity
Current
gas humidity
Current
gas humidity
0 %
100 %
