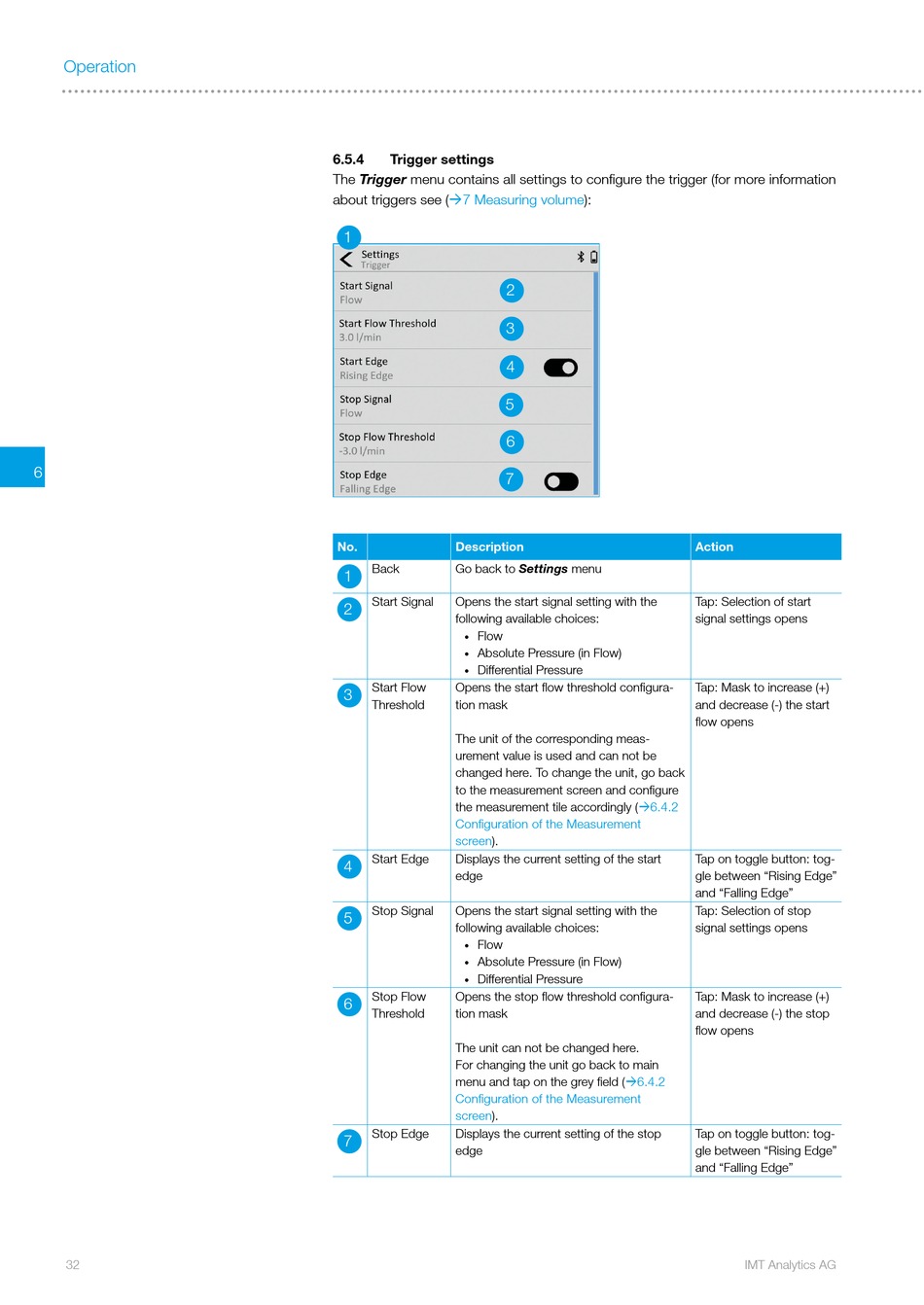

IMT Analytics FlowMeter F1 User Manual page 32

Operation
6
32
6.5.4 Trigger settings
The Trigger menu contains all settings to configure the trigger (for more information
about triggers see (7 Measuring
1
2
3
4
5
6
7
No. Description
Back Go back to Settings menu
1
Start Signal Opens the start signal setting with the
2
following available choices:
Flow
•
Absolute Pressure (in Flow)
•
Differential Pressure
•
Start Flow Opens the start flow threshold configura-
3
Threshold tion mask
The unit of the corresponding meas-
urement value is used and can not be
changed here. To change the unit, go back
to the measurement screen and configure
the measurement tile accordingly
Configuration of the Measurement
screen).
Start Edge Displays the current setting of the start
4
edge
Stop Signal Opens the start signal setting with the
5
following available choices:
Flow
•
Absolute Pressure (in Flow)
•
Differential Pressure
•
Stop Flow Opens the stop flow threshold configura-
6
Threshold tion mask
The unit can not be changed here.
For changing the unit go back to main
menu and tap on the grey field
Configuration of the Measurement
screen).
Stop Edge Displays the current setting of the stop
7
edge
volume):
Action
Tap: Selection of start
signal settings opens
Tap: Mask to increase (+)
and decrease (-) the start
flow opens
(6.4.2
Tap on toggle button: tog-
gle between "Rising Edge"
and "Falling Edge"
Tap: Selection of stop
signal settings opens
Tap: Mask to increase (+)
and decrease (-) the stop
flow opens
(6.4.2
Tap on toggle button: tog-
gle between "Rising Edge"
and "Falling Edge"
IMT Analytics AG
