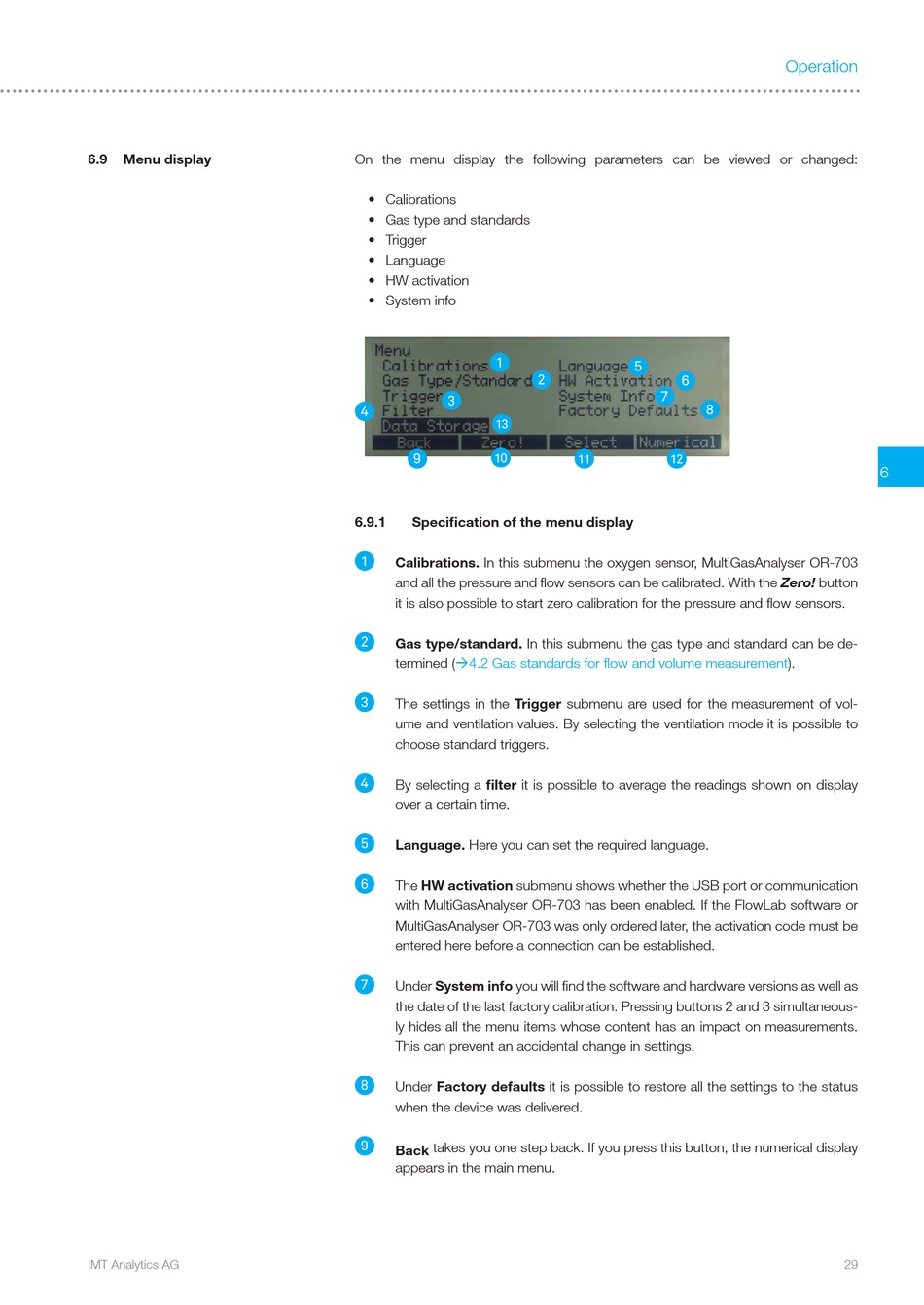

Menu display

IMT Analytics AG
On the menu display the following parameters can be viewed or changed:
• Calibrations
• Gas type and standards
• Trigger
• Language
• HW activation
• System info
1
3
4
13
9 10
6.9.1 Specification of the menu display
1
Calibrations. In this submenu the oxygen sensor, MultiGasAnalyser OR-703
and all the pressure and flow sensors can be calibrated. With the Zero! button
it is also possible to start zero calibration for the pressure and flow sensors.
2
Gas type/standard. In this submenu the gas type and standard can be de-
termined (4.2 Gas standards for flow and volume
3
The settings in the Trigger submenu are used for the measurement of vol-
ume and ventilation values. By selecting the ventilation mode it is possible to
choose standard triggers.
4 By selecting a filter it is possible to average the readings shown on display
over a certain time.
5
Language. Here you can set the required language.
6
The HW activation submenu shows whether the USB port or communication
with MultiGasAnalyser OR-703 has been enabled. If the FlowLab software or
MultiGasAnalyser OR-703 was only ordered later, the activation code must be
entered here before a connection can be established.
7
Under System info you will find the software and hardware versions as well as
the date of the last factory calibration. Pressing buttons 2 and 3 simultaneous-
ly hides all the menu items whose content has an impact on measurements.
This can prevent an accidental change in settings.
8
Under Factory defaults it is possible to restore all the settings to the status
when the device was delivered.
9
Back takes you one step back. If you press this button, the numerical display
appears in the main menu.
5
2
6
7
8
11 12
measurement).
Operation
6
29
