5.2

Power supply

5.3

Mechanical connectors

IMT Analytics AG

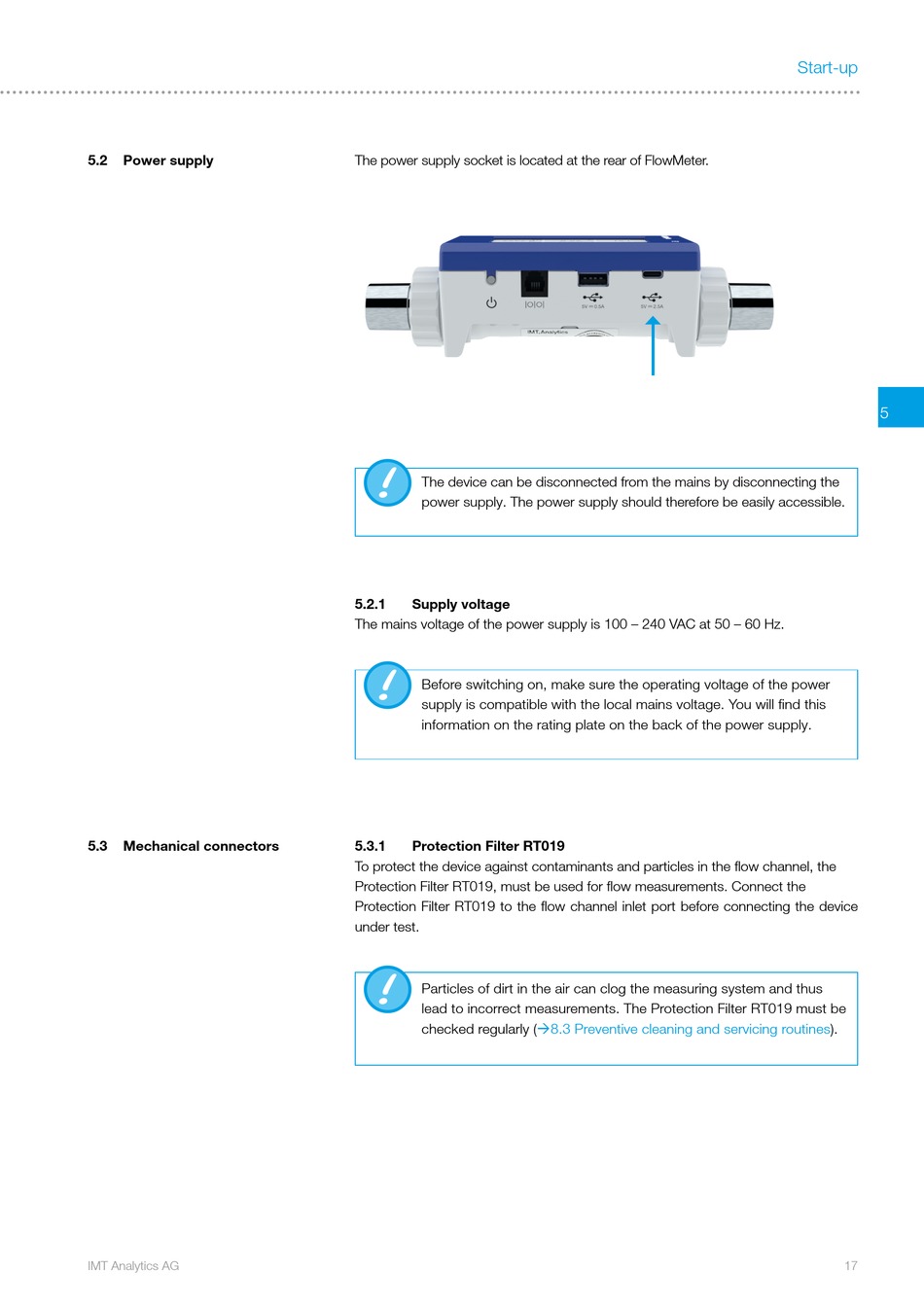

The power supply socket is located at the rear of FlowMeter.
The device can be disconnected from the mains by disconnecting the
power supply. The power supply should therefore be easily accessible.
5.2.1 Supply voltage
The mains voltage of the power supply is 100 – 240 VAC at 50 – 60 Hz.
Before switching on, make sure the operating voltage of the power
supply is compatible with the local mains voltage. You will find this
information on the rating plate on the back of the power supply.
5.3.1 Protection Filter RT019
To protect the device against contaminants and particles in the flow channel, the
Protection Filter RT019, must be used for flow measurements. Connect the
Protection Filter RT019 to the flow channel inlet port before connecting the device
under test.
Particles of dirt in the air can clog the measuring system and thus
lead to incorrect measurements. The Protection Filter RT019 must be
checked regularly (8.3 Preventive cleaning and servicing
Start-up
5
routines).
