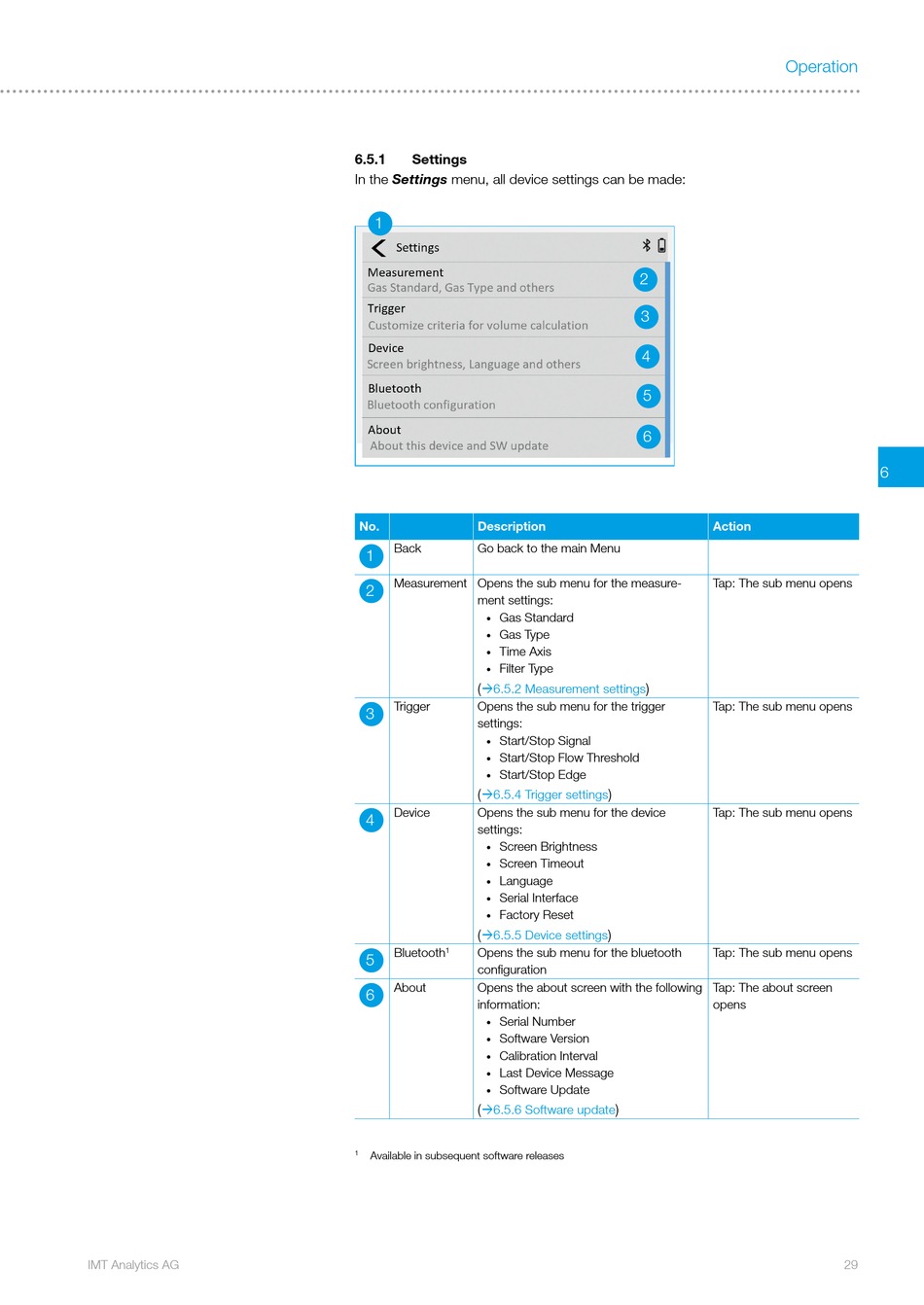

6.5.1 Settings
In the Settings menu, all device settings can be made:
1
No. Description
Back Go back to the main Menu
1
Measurement Opens the sub menu for the measure-
2
ment settings:
Gas Standard
•
Gas Type
•
Time Axis
•
Filter Type
•
(
6.5.2 Measurement settings
Trigger Opens the sub menu for the trigger
3
settings:
Start/Stop Signal
•
Start/Stop Flow Threshold
•
Start/Stop Edge
•
(
6.5.4 Trigger settings
Device Opens the sub menu for the device
4
settings:
Screen Brightness
•
Screen Timeout
•
Language
•
Serial Interface
•
Factory Reset
•
(
6.5.5 Device settings
Bluetooth Opens the sub menu for the bluetooth
1
5
configuration
About Opens the about screen with the following
6
information:
Serial Number
•
Software Version
•
Calibration Interval
•
Last Device Message
•
Software Update
•
(
6.5.6 Software update
Available in subsequent software releases
1
2
3
4
5
6
Action
Tap: The sub menu opens
)
Tap: The sub menu opens
)
Tap: The sub menu opens
)
Tap: The sub menu opens
Tap: The about screen
opens
)
