5.0 Overview

TIP: The plunger button (Figure 6) can be used to increase the volume and to change modes and settings the same as the Up button
(Figure 7) during function mode selection and volume settings. This feature can speed up the setting process.
SYS System Setting
AUTO Auto Pipetting
MD Multiple Dispensing
MIX Mixing
SE Sequential Aspirating/Dispensing
Direction
Speed
Battery Charge
Reset Button: Piston
automatically returns to
the home position
Back Button: Exits to
previous mode/setting
LCD Display
Reset Button
Keypad
Tip Ejector
Bushing
Lower Part
Tip Fitting

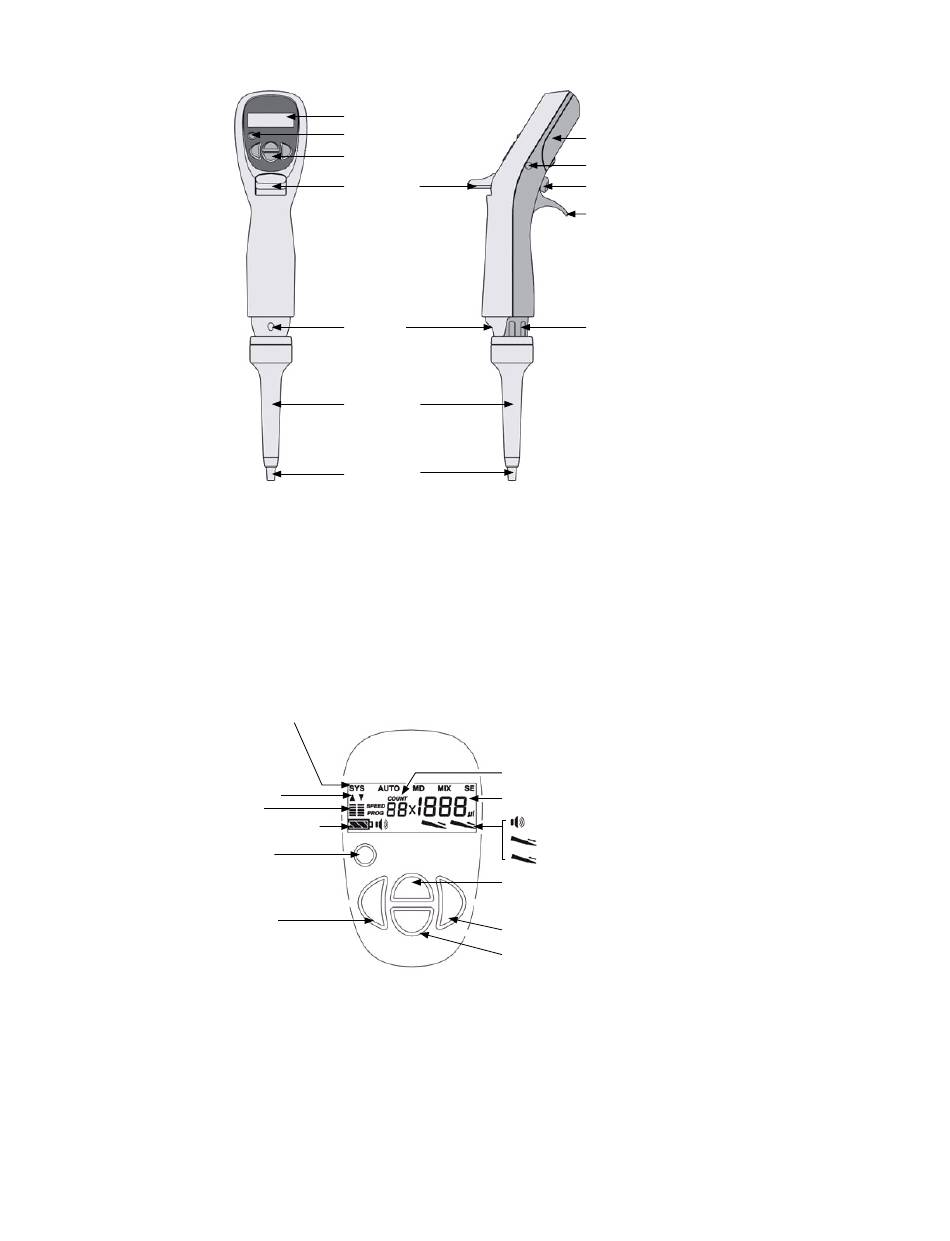

Figure 6. Single-channel Labnet Excel electronic pipettor overview.
Figure 7. LCD display panel.
Battery Cover
DC-in Jack
Plunger Button
Finger Rest
Connector Nut
Count No./Prog No.
Volume (μL)
Audible Signals
Blow Out
Reverse Pipetting
Up Button: Increases volume, changes
parameters, or activates aspirating/dispensing
Enter Button: Confirms your choice
Down Button: Decreases volume
and changes parameters
