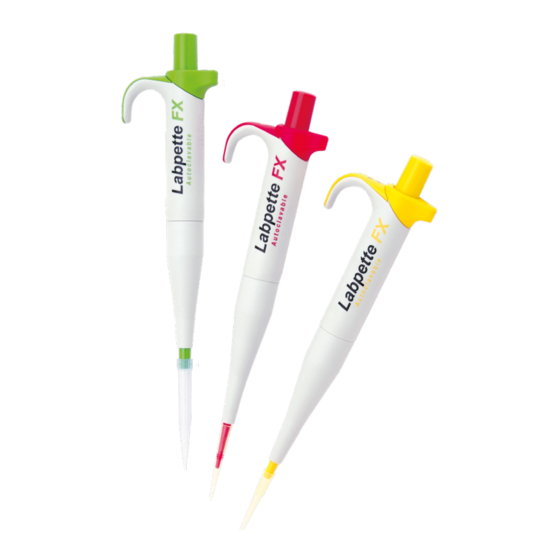

- Page 1 Labnet Labpette FX Single-channel, Fixed Volume Pipettors Instruction Manual This manual is available in additional languages at www.labnetlink.com.
-
Page 2: Table Of Contents
Table of Contents 1. Product Description ..............1 2. Packing ....................2 3. Pipettor Design ................2 4. Safety Recommendations ............3 5. Specifications ................4 6. Pipettor Operation ..............5 7. Operating Instructions .............6 8. Aspiration and Dispensing Instructions ......7 9. Checking Pipetting Accuracy Parameters and Pipettor Recalibration ............8 10. -
Page 3: Product Description
Green 1,000 P3900-1000 Green Labnet pipettors operate using an air-cushion (i.e., the aspirated liquid does not come into contact with the shaft or plunger of the pipettor). The liquid is drawn into the disposable tip attached to the pipettor. Instruction Manual – 1... -
Page 4: Packing
Quality control certificate Calibration key Shelf clip Lubricant 3. Pipettor Design Model Identification The volume of the pipettor is shown on its pushbutton. Pipetting pushbutton (A) Ejector pushbutton (N) Handle (O) Tip ejector (D) Shaft (C) 2 – LABNET LABPETTE FX PIPETTORS... -
Page 5: Safety Recommendations
4. Safety Recommendations Long-term use of the pipettor relies on correct method of use. Please read and follow the instructions for use carefully. Symbols used: Danger, risk of injury. NOTE Risk of damage to the pipettor or errors in pipetting. NOTE: •... -
Page 6: Specifications
20°C ± 1°C according to EN ISO 8655 standards. The use of tips from other manufacturers or filter tips may result in incorrect liquid aspiration and require pipettor recalibration. The design of the pipettor enables the user to recalibrate it according to the information presented in Section 9. 4 – LABNET LABPETTE FX PIPETTORS... -
Page 7: Pipettor Operation
6. Pipettor Operation Attaching the Tips • Attach the correct tip corresponding to the model number displayed on the pipettor finger rest (Section 5). • Position the pipettor vertically when attaching tips. • Press the pipettor against the tip positioned in the rack box. The suspension system will ensure even and airtight sealing of the pipet tips. -
Page 8: Operating Instructions
• Do not pipettor liquids with temperatures above 70°C. NOTE: When pipetting acids or corrosive solutions which emit vapors, it is recommended to disassemble the shaft and rinse the plunger and O-ring with distilled water after finishing the pipetting operation. 6 – LABNET LABPETTE FX PIPETTORS... -
Page 9: Aspiration And Dispensing Instructions
8. Aspiration and Dispensing Instructions Aspirating Liquid 1. Press the pushbutton to the first stop point. Holding the pipettor vertically, immerse the pipet tip into the sample liquid to the recommended depth (for recommended values see Section 7). If the pipet tip is not immersed to the recommended depth or if the pipetting pushbutton is rapidly released, air may enter the pipet tip. -
Page 10: Checking Pipetting Accuracy Parameters And Pipettor Recalibration
If during pipettor operation the accuracy error exceeds the permissible value given in the table in Section 5, pipettor recalibration should be carried out. Recalibration of the pipettor involves adjusting the settings according to the table on page 10. 8 – LABNET LABPETTE FX PIPETTORS... - Page 11 Parameters for Checking the Pipetting Accuracy The pipetting accuracy is influenced by factors such as: tips used, characteristics of the pipetted liquid (density, viscosity), and operating conditions (ambient temperature, pressure). To determine the accuracy error of the pipettor, the following conditions should be met: • Ambient temperature and temperature of the pipettor, pipet tips, and liquid should be within the range of 20°C to 25°C and stabilized during weighing within ±0.5°C.
- Page 12 • Calculate the volume in [μL] by multiplying the value in [mg] by the conversion factor Z [μL/mg]. If the average aspirated volume exceeds the permissible values of the range, the pipettor should be recalibrated. 10 – LABNET LABPETTE FX PIPETTORS...
- Page 13 Pipettor Recalibration 1. Remove the pipetting pushbutton. 2. Insert the calibration key into the calibration screw. 3. Turn the key clockwise to reduce the aspirated volume, or counter-clockwise to increase the aspirated volume Use the values given in the above table to precisely adjust the volume.
-
Page 14: Pipettor Maintenance
The pipettors are UV resistant. The distance from the radiation source to the exposed element of the pipettor should be at least 50 cm. Prolonged or intense UV exposure can cause discoloration of pipettor parts but does not affect its performance. 12 – LABNET LABPETTE FX PIPETTORS... -
Page 15: Troubleshooting
11. Troubleshooting If a problem is encountered during pipettor operation, use the following table to identify and eliminate the fault following the instructions provided. Replacement of parts should be required only occasionally and should not be required with normal pipettor use. Problem Cause Solution... - Page 16 If the problem persists after carrying out the above steps, contact our regional representative. Before returning the pipettor, please ensure the pipettor is completely free of any chemical, radioactive, or microbiological contamination which could pose a threat during transport and repair. 14 – LABNET LABPETTE FX PIPETTORS...
-
Page 17: Spare Parts
12. Spare Parts Contact our Customer Service to inquire about availability of spare parts. Pipettor model and name of the part required should be specified. The most common parts are depicted below. NOTE: The replacement of the plunger requires conducting the calibration procedure according to Section 9. 2-20 µL 40-1,000 µL I, J I, J... - Page 18 250 - 1,000 SP9161 I, J Seal, O-ring and Bush 2 - 10 SP9054 SP9055 40, 50 SP9132 70 - 100 SP9070 120 - 200 SP9073 250 - 500 SP9133 1,000 SP9076 Calibration key SP9174 16 – LABNET LABPETTE FX PIPETTORS...
-
Page 19: Limited Warranty
13. Limited Warranty Corning Incorporated (Corning) warrants that this product will be free from defects in material and workmanship for a period of three (3) years from date of purchase. CORNING DISCLAIMS ALL OTHER WARRANTIES WHETHER EXPRESSED OR IMPLIED, INCLUDING ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR OF FITNESS FOR A PARTICULAR PURPOSE. - Page 20 Not intended for use in diagnostic or therapeutic procedures. Corning makes no claims regarding the performance of these products for clinical or diagnostic applications. Product availability may vary per region. 18 – LABNET LABPETTE FX PIPETTORS...
- Page 21 For additional product or technical information, visit www.labnetlink.com or contact your local sales office. N O R T H A M E R I C A E U R O P E t 800.492.1110 CSEurope@corning.com t 978.442.2200 France t 0800 916 882 A S I A / PA C I F I C Germany Australia/New Zealand t 0800 101 1153...
