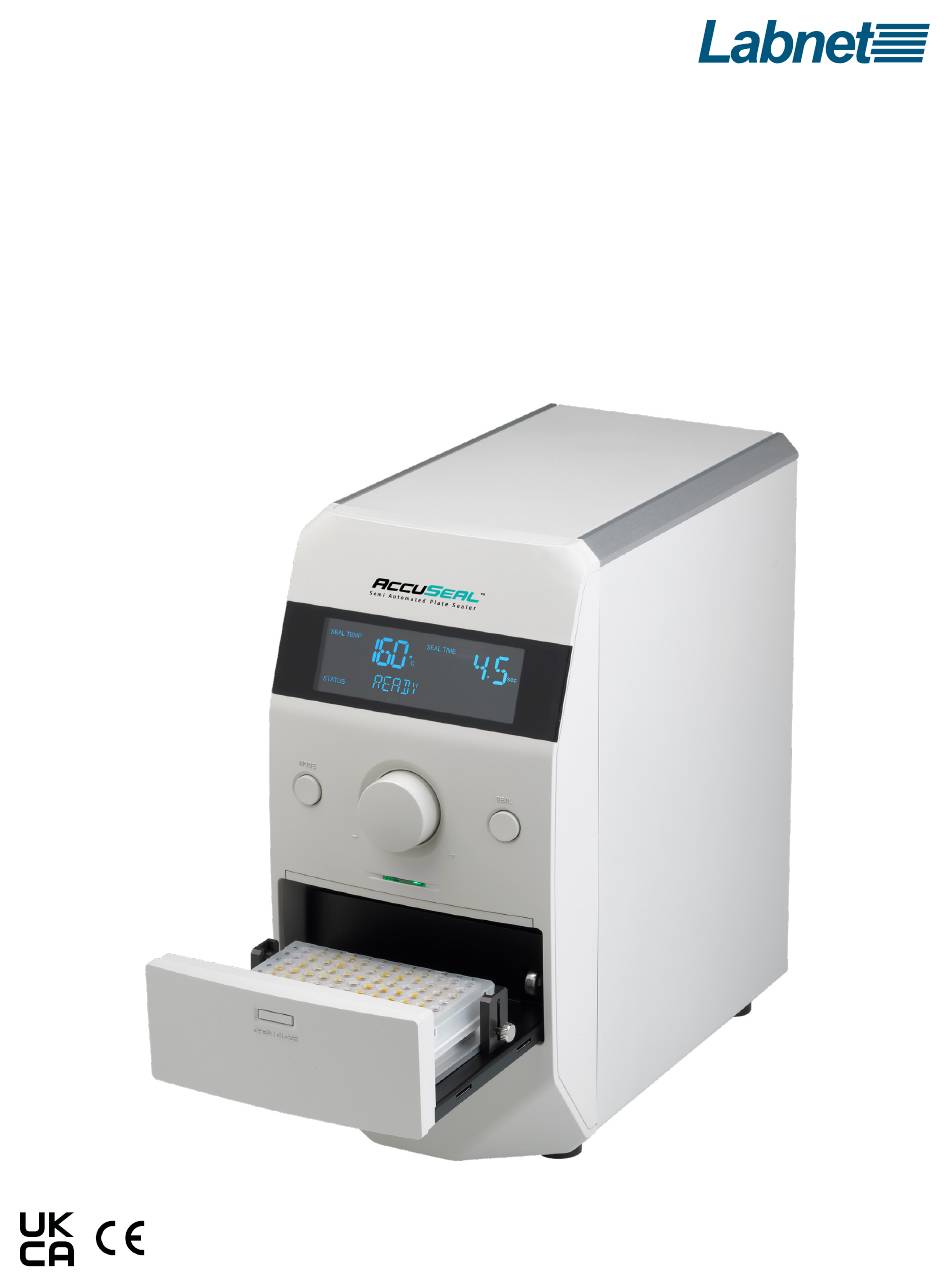

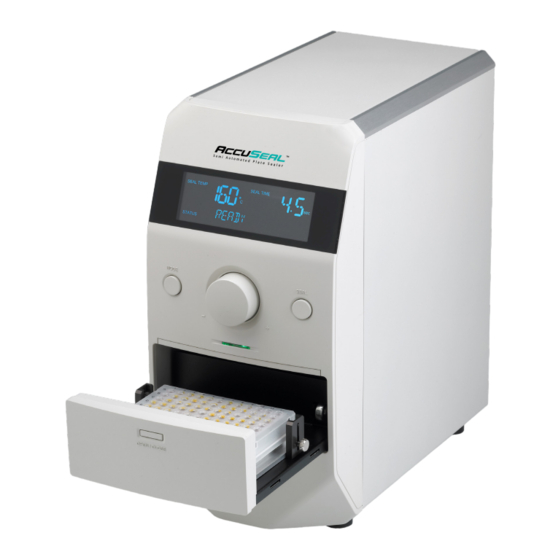

- Page 1 Labnet AccuSeal™ Semi-automated Plate Sealer Instruction Manual Catalog Numbers: PS1000 PS1000-230V...
-
Page 2: Table Of Contents
Table of Contents 1.0 Introduction ..................1 1.1 Overview . -
Page 3: Introduction
1.0 Introduction 1.1 Overview The Labnet AccuSeal™ semi-automated plate sealer is used for heat sealing of a wide variety of microplates to store samples, prevent evaporation, and minimize contamination. It thermally bond seals and foils to a wide variety of microtiter, cell culture, PCR, and deep well plates. The digital temperature and timer control allows user selection of parameters for combinations of plates and seals. -
Page 4: Specifications
Environmental Conditions 15°C to 30°C, ≤80% RH Storage Temperatures 0°C to 60°C The Labnet AccuSeal™ semi-automated plate sealer is designed to be safe at least when operated under the following conditions: Indoor use Altitude up to 2,000 meters ... -
Page 5: Display Overview
2.2 Display Overview 1. SEAL TEMP: Indicates sealing platen temperature. 2. SEAL TIME: Displays sealing time. 3. STATUS: Shows Heating, Cooling, Ready or Error states. 2.3 Unit Overview 1. Display: Shows platen temperature, sealing time, and unit status. 2. Mode Button: Selects parameter (Sealing temperature or Sealing time) to be changed using the rotary encoder. -
Page 6: Operation
After installing the unit, you will need to power it up using the power switch in the back, then choose your sealing settings. NOTE: The Labnet AccuSeal™ plate sealer should be used only with microplates and seals that are designed for heat sealing. It is the user’s responsibility to confirm that the consumables being used are appropriate for the application. -
Page 7: Sealing A Plate
3.5 Sealing a Plate Based on the type of seal and plate being used, select the time and temperature using the Mode button and control knob. Consult the seal manufacturer for recommended settings. If the plate you are using will require an adapter, place it into the recessed area in the middle of the drawer. -
Page 8: Power Save Mode
3.7 Power Save Mode If the unit is left On but inactive for long periods, it will enter a power saving mode. These modes are described below. Display Time Frame Temperature STND_BY 1 hour of inactivity 60°C PWRSAVE 3 hours of inactivity after entering STND_BY mode Ambient (heater Off) 4.0 Troubleshooting Error... -
Page 9: Limited Warranty
5.0 Limited Warranty Corning Incorporated (Corning) warrants that this product will be free from defects in material and workmanship for a period of one (1) year from date of purchase. CORNING DISCLAIMS ALL OTHER WARRANTIES WHETHER EXPRESSED OR IMPLIED, INCLUDING ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR OF FITNESS FOR A PARTICULAR PURPOSE. - Page 10 To request certificates, please contact us at www.labnetlink.com. Warranty/Disclaimer: Unless otherwise specified, all products are for research use or general laboratory use only.* Not intended for use in diagnostic or therapeutic procedures. Not for use in humans. These products are not intended to mitigate the presence of microorganisms on surfaces or in the environment, where such organisms can be deleterious to humans or the environment.
