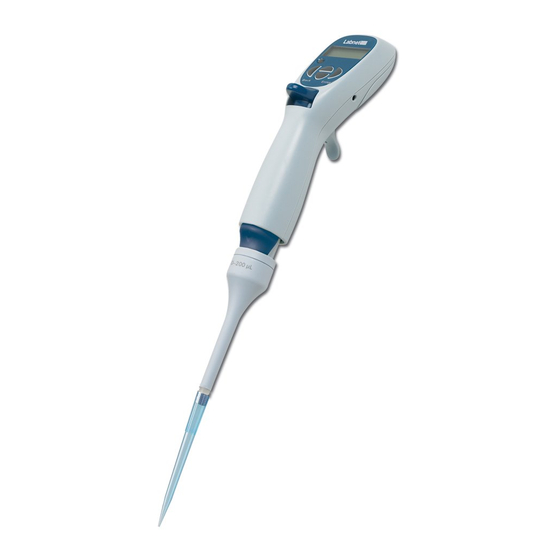

Labnet Excel™ Single- and Multi-channel
Electronic Pipettors
Quick Start Guide
Catalog Numbers: P3600L-10, P3608L-10, P3612L-10, P3600L-20, P3608L-20, P3612L-20, P3600L-200, P3608L-200, P3612L-200,
P3600L-1200, P3608L-1200, P3612L-1200
For the complete Labnet Excel Electronic Pipettors Instruction Manual (CLSLN-AN-1032DOC), visit www.labnetlink.com.
Single-channel Pipettor Overview
LCD Display Panel
SYS
System Setting
AUTO Auto Pipetting
MD
Multiple Dispensing
MIX
Mixing
SE
Sequential Aspirating/Dispensing
Reset Button: Piston
automatically returns to
the home position
Back Button: Exits to
previous mode/setting
LCD Display
Reset Button
Keypad
Tip Ejector
Bushing
Lower Part
Tip Fitting
Direction
Speed
Battery Charge
Battery Cover
DC-in Jack
Plunger Button
Finger Rest
Connector Nut
Count No./Prog No.
Volume (µL)
Audible Signals
Blow Out
Reverse Pipetting
Up Button: Increases volume, changes
parameters, or activates aspirating/dispensing
Enter Button: Confirms your choice
Down Button: Decreases volume
and changes parameters
Advertisement
Related Manuals for Labnet Excel P3600L-10
Summary of Contents for Labnet Excel P3600L-10
- Page 1 Electronic Pipettors Quick Start Guide Catalog Numbers: P3600L-10, P3608L-10, P3612L-10, P3600L-20, P3608L-20, P3612L-20, P3600L-200, P3608L-200, P3612L-200, P3600L-1200, P3608L-1200, P3612L-1200 For the complete Labnet Excel Electronic Pipettors Instruction Manual (CLSLN-AN-1032DOC), visit www.labnetlink.com. Single-channel Pipettor Overview LCD Display Reset Button Battery Cover...
- Page 2 Function Modes and Examples The shown icons will appear on LCD display after previous action. , , PLUNGER: press Back, Up/Down, Enter, and Plunger button. : (Mix 100 μL) means action and setting volumes. (Mix 100 μL) SYS (System Settings) Example: Switch off audible signals Steps: AUTO (Automatic Pipetting)
