12.0 Tip Ejector Height Adjustment

Use a flat-head screwdriver or other tool to turn the tip ejector height adjustment screw as shown in Figure 11. By turning the screw
in a counterclockwise direction, the tip ejector can be adjusted down. This height adjustment feature enables efficient ejecting of
different manufacturers' tips.

13.0 Maintenance

The outside of the Labnet Excel™ electronic pipettor may be wiped clean with 60% isopropanol, 70% ethanol, or mild detergent, and then
wiped dry with a lint-free cloth. If the pipettor is severely contaminated or if very corrosive chemicals are dispensed, the lower part of the
Labnet electronic pipettor should be disassembled. The individual parts should be rinsed in distilled water and then air dried.
It is recommended to clean the Labnet Excel electronic pipettor at regular intervals depending on how much the pipettor is used, as well
as lubricating it once per year. If the pipettor is autoclaved often, you may need to lubricate the pipettor more frequently. Lubrication of
the piston should be performed only by authorized Corning representative, and only the proper Labnet Excel electronic pipettor lubricant
available from Labnet should be used. For more information on the proper service of your Labnet Excel electronic pipettor, contact your
Corning representative.
It is recommended to check the performance of your Labnet Excel electronic pipettor regularly (e.g., every 3 to 6 months) and
always after maintenance or service. More frequent testing of the Labnet Excel electronic pipettor may be desired depending upon
requirements of the application, frequency of use, number of operators using the pipettor, nature of the liquid dispensed and the
acceptable maximum permissible errors established by the user (ISO 8655-1). For more information on Labnet Excel electronic pipettor
calibration procedures, contact Corning Customer Service.
NOTE: Using improper lubricants may deter or block the movement of the Labnet Excel electronic pipettor's piston.

14.0 Troubleshooting

To ensure the product's quality and performance, the Labnet Excel electronic pipettor is designed with a self-diagnosis program. This
program will constantly monitor the accuracy of pipetting volume, battery status, and auto-calibration function. Error (Err) messages
will appear on the display if the Labnet Excel electronic pipettor fails to perform the attempted action properly. Refer to the following
table to clear the error (Err) messages or faults.
If the following solutions do not resolve the problem, please contact your Corning representative to arrange for authorized service.
Message Cause
Err 01 Battery not charged
Faulty power adapter
Err 02 Auto-calibration is not working
Err 03 Inaccurate pipetting volume
Err 04 Step motor failure
Photo-couple failure
Droplets left Unsuitable tip
inside the tip
12 | LABNET EXCEL ELECTRONIC PIPETTORS

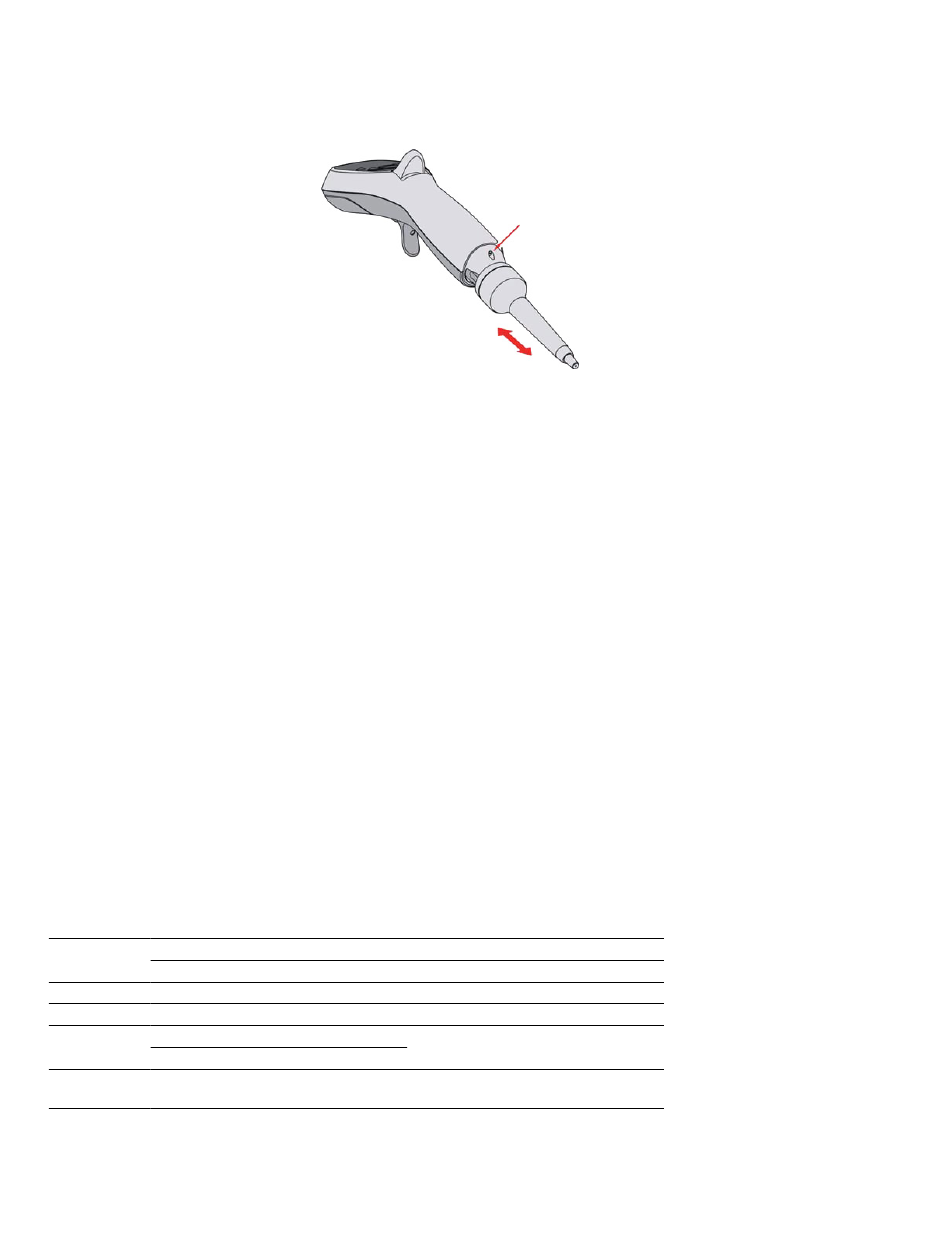

Flat-head screw
Figure 11. Tip ejector height adjustment.
Solution
Charge the battery.
Replace the power adapter.
Press the Reset button.
Press the Reset button.
Press the Reset button.
Use quality, low retention tips.
