INSTALLATION, CONT'D: SHIM / ATTACH SPLASH GUARD BRACKET AND REAR TOE-KICK TO CASE
2. Shim Frame Support Rails As Needed
Shims are provided with case shipment.
Check that case is level.
Place shims, as needed, at underside of frame
support rails until case is level and plumb.

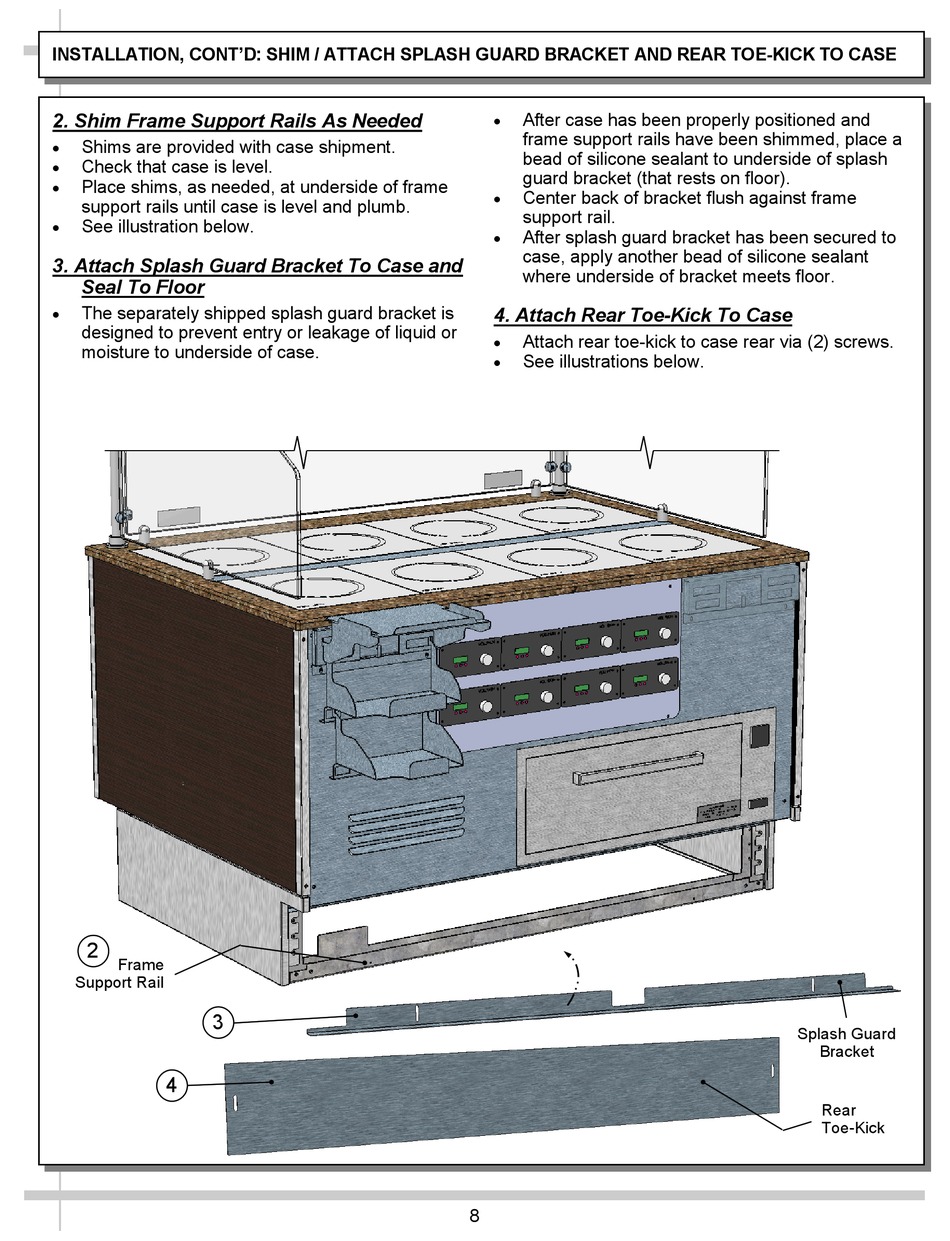

See illustration below.
3. Attach Splash Guard Bracket To Case and
Seal To Floor
The separately shipped splash guard bracket is
designed to prevent entry or leakage of liquid or
moisture to underside of case.
2
Frame
Support Rail
3
4
After case has been properly positioned and
frame support rails have been shimmed, place a
bead of silicone sealant to underside of splash
guard bracket (that rests on floor).
Center back of bracket flush against frame
support rail.
After splash guard bracket has been secured to
case, apply another bead of silicone sealant
where underside of bracket meets floor.
4. Attach Rear Toe-Kick To Case
Attach rear toe-kick to case rear via (2) screws.
See illustrations below.
8
Splash Guard
Bracket
Rear
Toe-Kick
