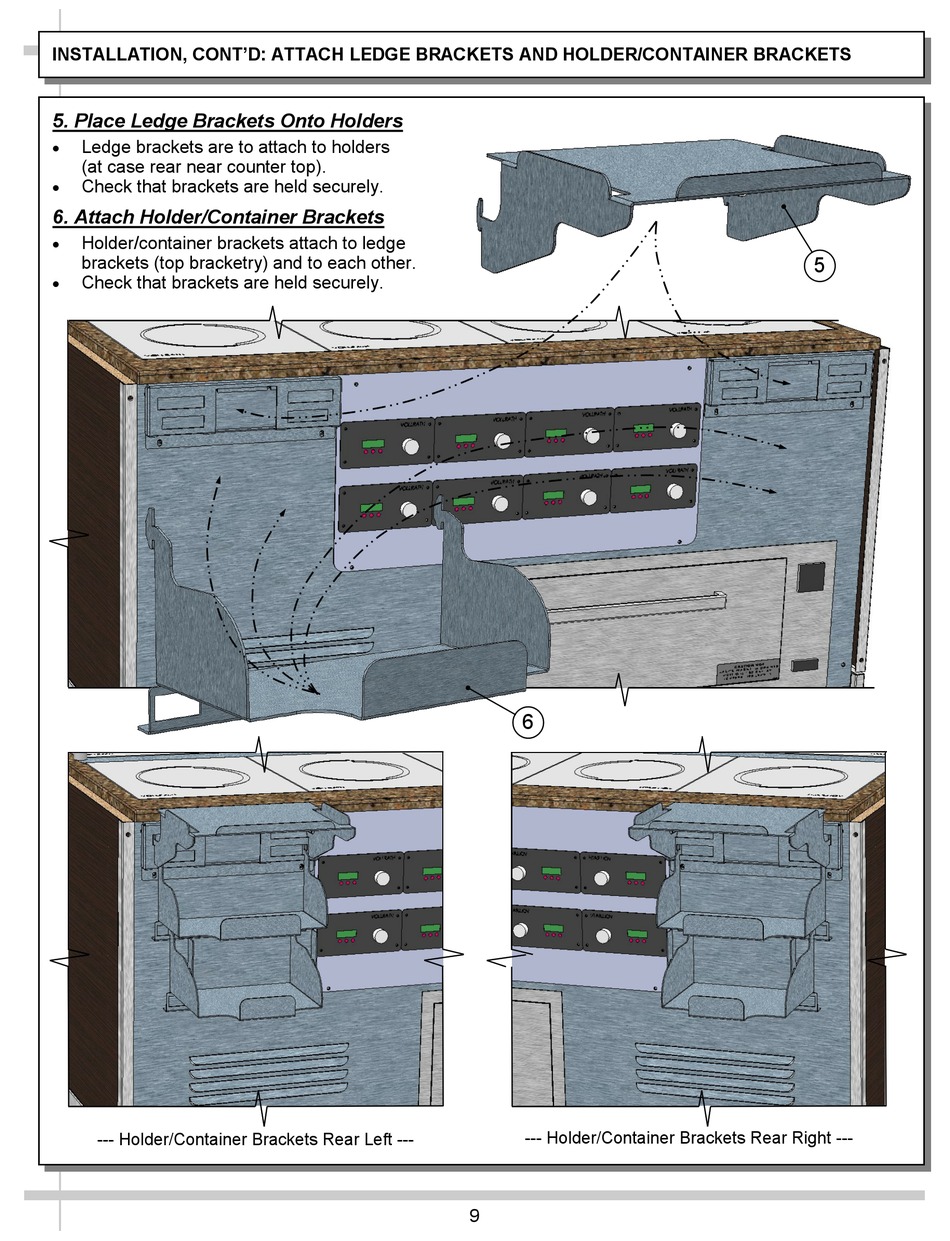

INSTALLATION, CONT'D: ATTACH LEDGE BRACKETS AND HOLDER/CONTAINER BRACKETS
5. Place Ledge Brackets Onto Holders
Ledge brackets are to attach to holders
(at case rear near counter top).
Check that brackets are held securely.
6. Attach Holder/Container Brackets
Holder/container brackets attach to ledge
brackets (top bracketry) and to each other.
Check that brackets are held securely.
--- Holder/Container Brackets Rear Left ---
6
--- Holder/Container Brackets Rear Right ---
9
5
