MODEL DP8HP60WD.5718B OVERVIEW / VOLLRATH® WARMING SYSTEM / HATCO® HEATED DRAWER
1. Model DP8HP60WD.5718B Overview

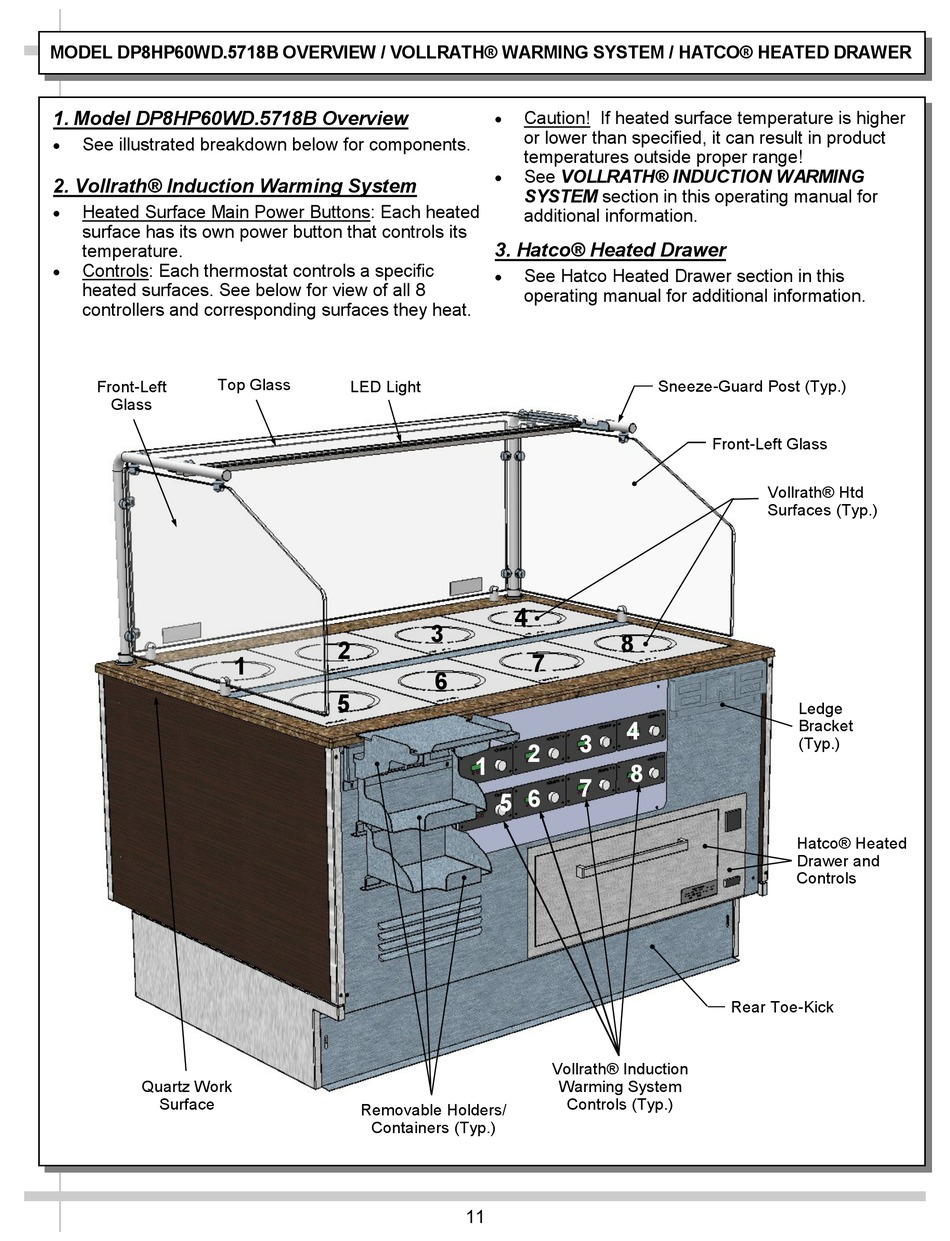

See illustrated breakdown below for components.
2. Vollrath® Induction Warming System
Heated Surface Main Power Buttons: Each heated
surface has its own power button that controls its
temperature.
Controls: Each thermostat controls a specific
heated surfaces. See below for view of all 8
controllers and corresponding surfaces they heat.
Top Glass
Front-Left
Glass
Quartz Work
Surface
LED Light
2
1
5
Removable Holders/
Containers (Typ.)
Caution! If heated surface temperature is higher
or lower than specified, it can result in product
temperatures outside proper range!
See VOLLRATH® INDUCTION WARMING
SYSTEM section in this operating manual for
additional information.
3. Hatco® Heated Drawer
See Hatco Heated Drawer section in this
operating manual for additional information.
4
3
7
6
3
2
1
7
5 6
Vollrath® Induction
Warming System
Controls (Typ.)
11
Sneeze-Guard Post (Typ.)
Front-Left Glass
Vollrath® Htd
Surfaces (Typ.)
8
Ledge
Bracket
4
(Typ.)
8
Hatco® Heated
Drawer and
Controls
Rear Toe-Kick
