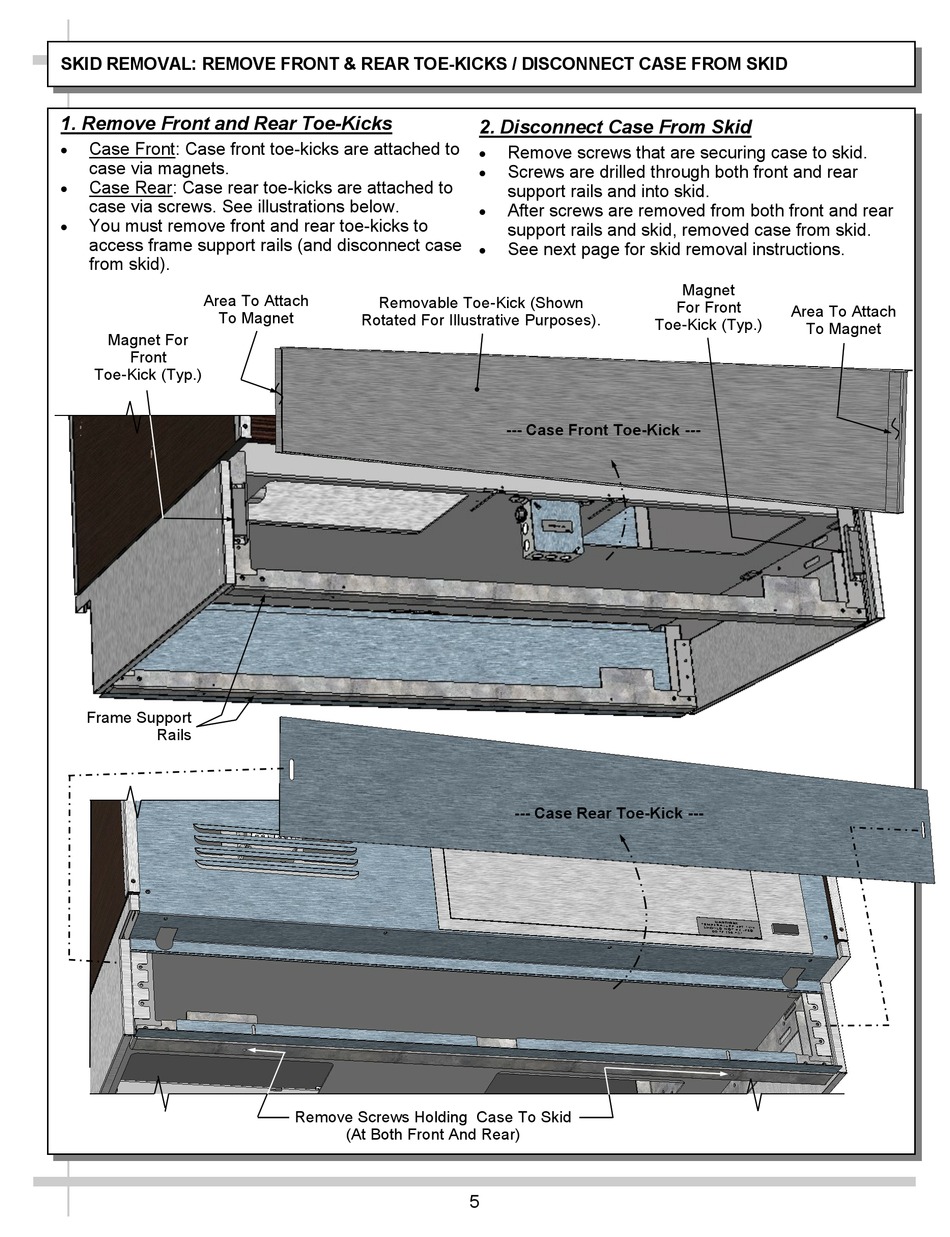

SKID REMOVAL: REMOVE FRONT & REAR TOE-KICKS / DISCONNECT CASE FROM SKID
1. Remove Front and Rear Toe-Kicks
Case Front: Case front toe-kicks are attached to
case via magnets.
Case Rear: Case rear toe-kicks are attached to
case via screws. See illustrations below.
You must remove front and rear toe-kicks to
access frame support rails (and disconnect case
from skid).
Area To Attach
To Magnet
Magnet For
Front
Toe-Kick (Typ.)
Frame Support
Rails
Removable Toe-Kick (Shown
Rotated For Illustrative Purposes).
Remove Screws Holding Case To Skid
(At Both Front And Rear)
5
2. Disconnect Case From Skid
Remove screws that are securing case to skid.
Screws are drilled through both front and rear
support rails and into skid.
After screws are removed from both front and rear
support rails and skid, removed case from skid.
See next page for skid removal instructions.
Toe-Kick (Typ.)
--- Case Front Toe-Kick ---
--- Case Rear Toe-Kick ---
Magnet
For Front
Area To Attach
To Magnet
