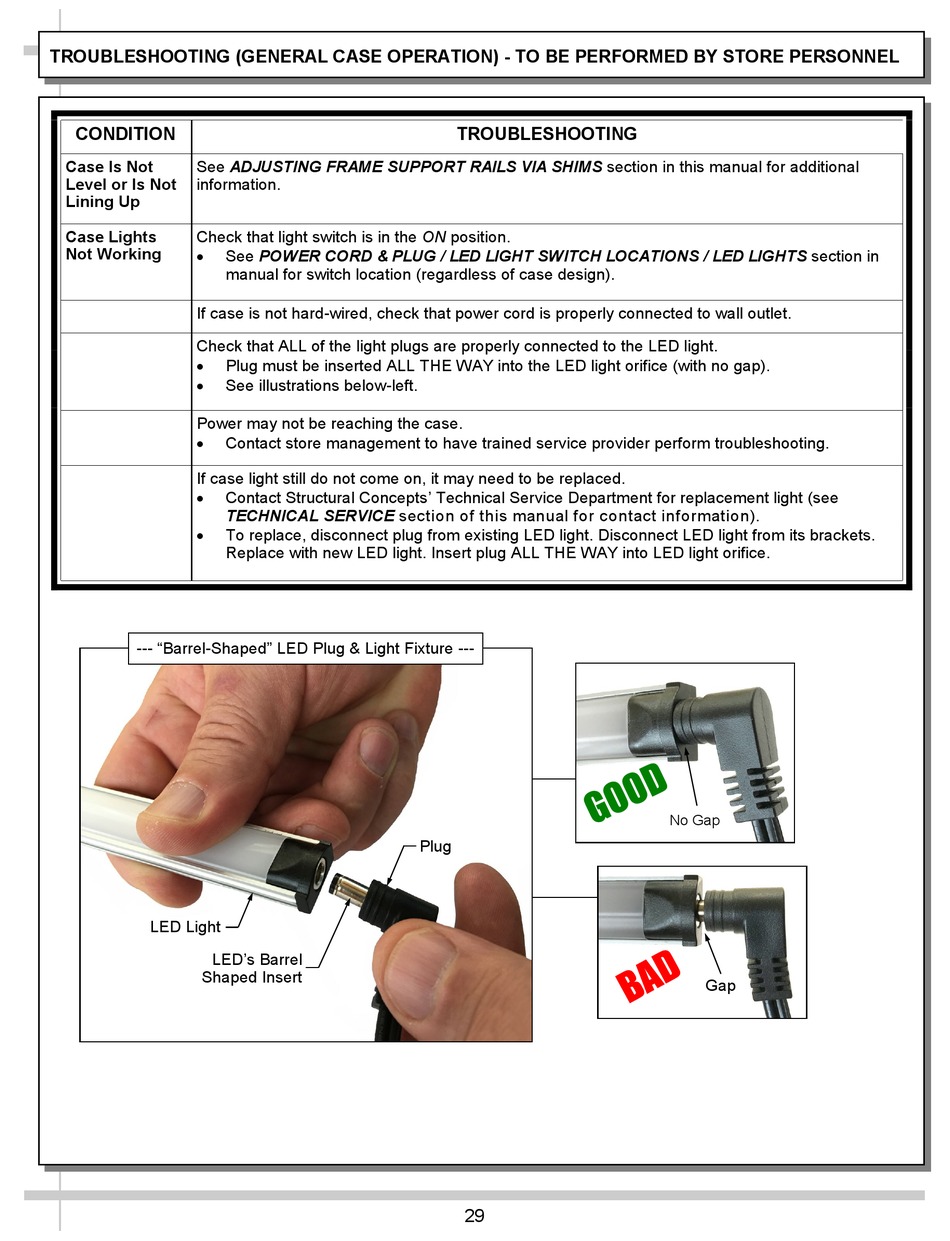

TROUBLESHOOTING (GENERAL CASE OPERATION) - TO BE PERFORMED BY STORE PERSONNEL
CONDITION
Case Is Not See ADJUSTING FRAME SUPPORT RAILS VIA SHIMS section in this manual for additional
Level or Is Not information.
Lining Up
Case Lights Check that light switch is in the ON position.
Not Working 
See POWER CORD & PLUG / LED LIGHT SWITCH LOCATIONS / LED LIGHTS section in
manual for switch location (regardless of case design).
If case is not hard-wired, check that power cord is properly connected to wall outlet.
Check that ALL of the light plugs are properly connected to the LED light.

Plug must be inserted ALL THE WAY into the LED light orifice (with no gap).

See illustrations below-left.
Power may not be reaching the case.

Contact store management to have trained service provider perform troubleshooting.
If case light still do not come on, it may need to be replaced.

Contact Structural Concepts' Technical Service Department for replacement light (see
TECHNICAL SERVICE section of this manual for contact information).

To replace, disconnect plug from existing LED light. Disconnect LED light from its brackets.
Replace with new LED light. Insert plug ALL THE WAY into LED light orifice.
--- "Barrel-Shaped" LED Plug & Light Fixture ---
LED Light
LED's Barrel
Shaped Insert
TROUBLESHOOTING
Plug
29
No Gap
Gap
