Hardware Installation and Reference Guide
3.6 Installing a Security Lock (Optional)
The security lock is customer-supplied.
The lock loop on the AP is for your security needs. You can fasten the AP to a fixture as follows:
1) Fasten the cable of a security lock to a fixture;
2) Secure the lock plate into the lock loop.

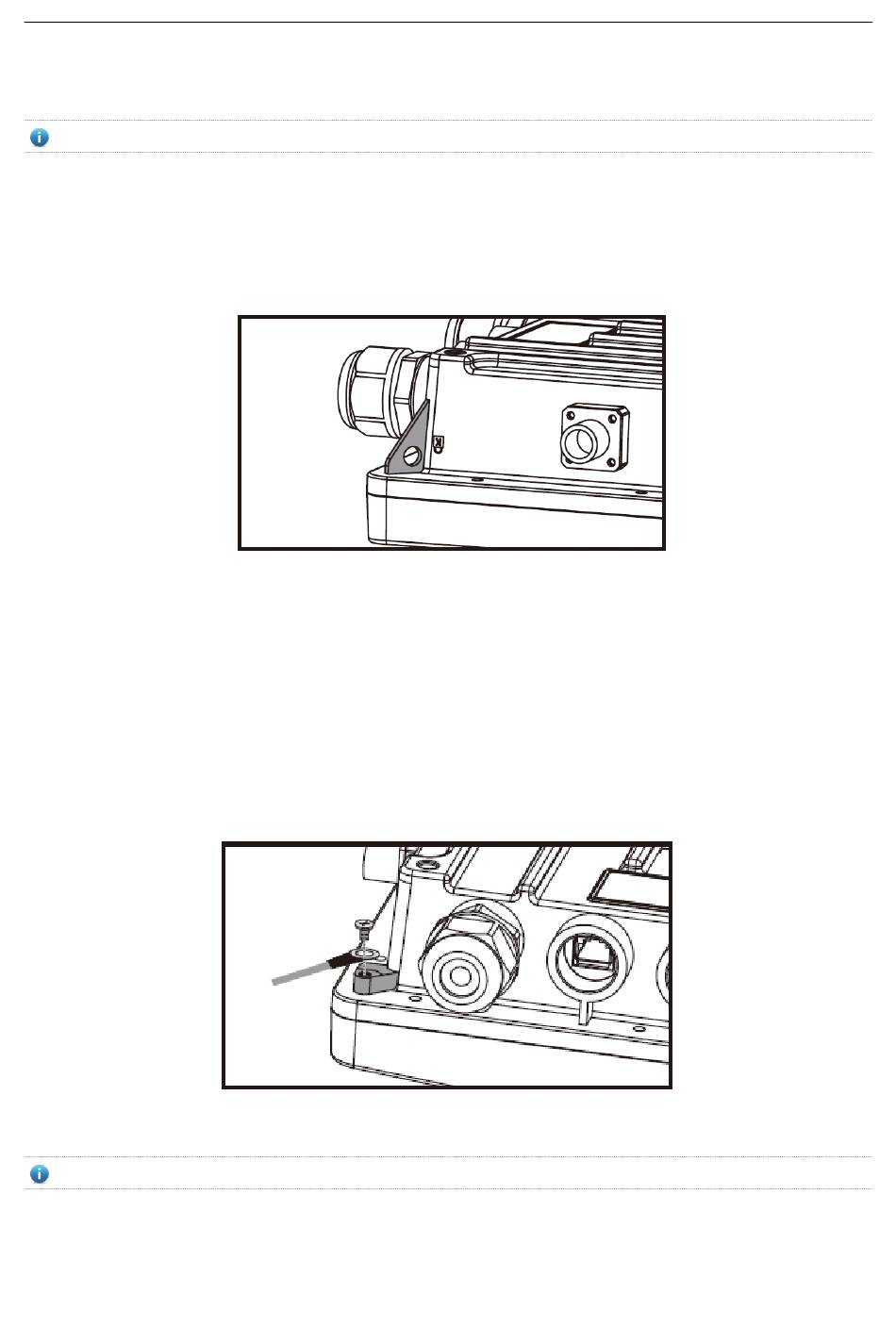

Figure 3-12 Lock Loop
3.7 Connecting Cables
Connecting the grounding cable
The grounding cable is made on site. Connect the supplied grounding wire (yellow-green) to the AP grounding hole on
one end and ground the wire on the other end through OT terminals. To avoid waste, adjust the cable length for actual
demands.
Figure 3-13 Grounding the AP
Connecting the network cable
Waterproofing material is customer-supplied.
1) Trim the network cable according to the distance between the AP and the power supply.
2) Thread the cable through liquid-tight adapter and add a plug to the end. See figure 3-14.
Installing the Access Point
·
·
