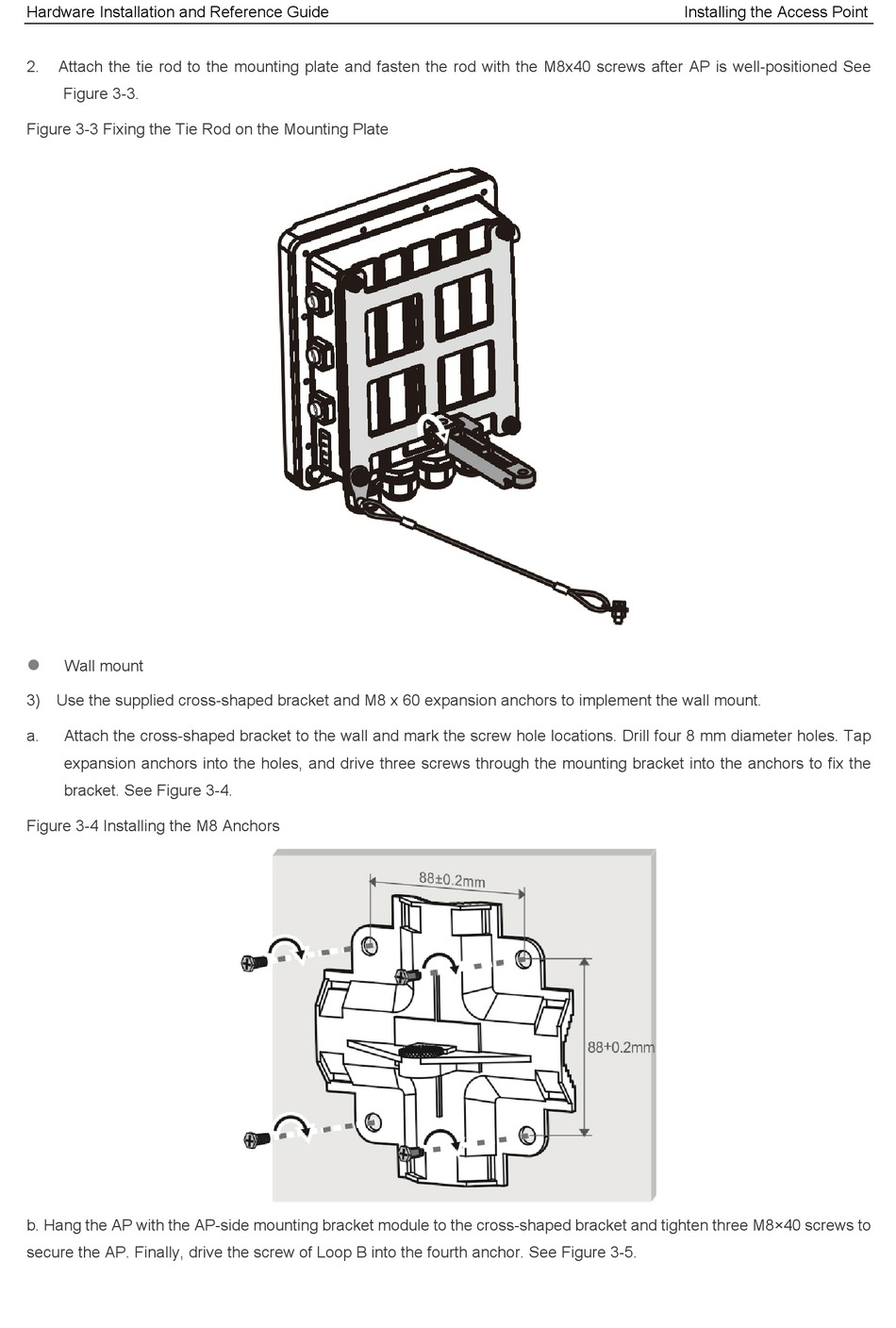

2. Attach the tie rod to the mounting plate and fasten the rod with the M8x40 screws after AP is well-positioned See
Figure 3-3.
Figure 3-3 Fixing the Tie Rod on the Mounting Plate

Wall mount
3) Use the supplied cross-shaped bracket and M8 x 60 expansion anchors to implement the wall mount.
a. Attach the cross-shaped bracket to the wall and mark the screw hole locations. Drill four 8 mm diameter holes. Tap
expansion anchors into the holes, and drive three screws through the mounting bracket into the anchors to fix the
bracket. See Figure 3-4.
Figure 3-4 Installing the M8 Anchors
b. Hang the AP with the AP-side mounting bracket module to the cross-shaped bracket and tighten three M8×40 screws to
secure the AP. Finally, drive the screw of Loop B into the fourth anchor. See Figure 3-5.
