Hardware Installation and Reference Guide

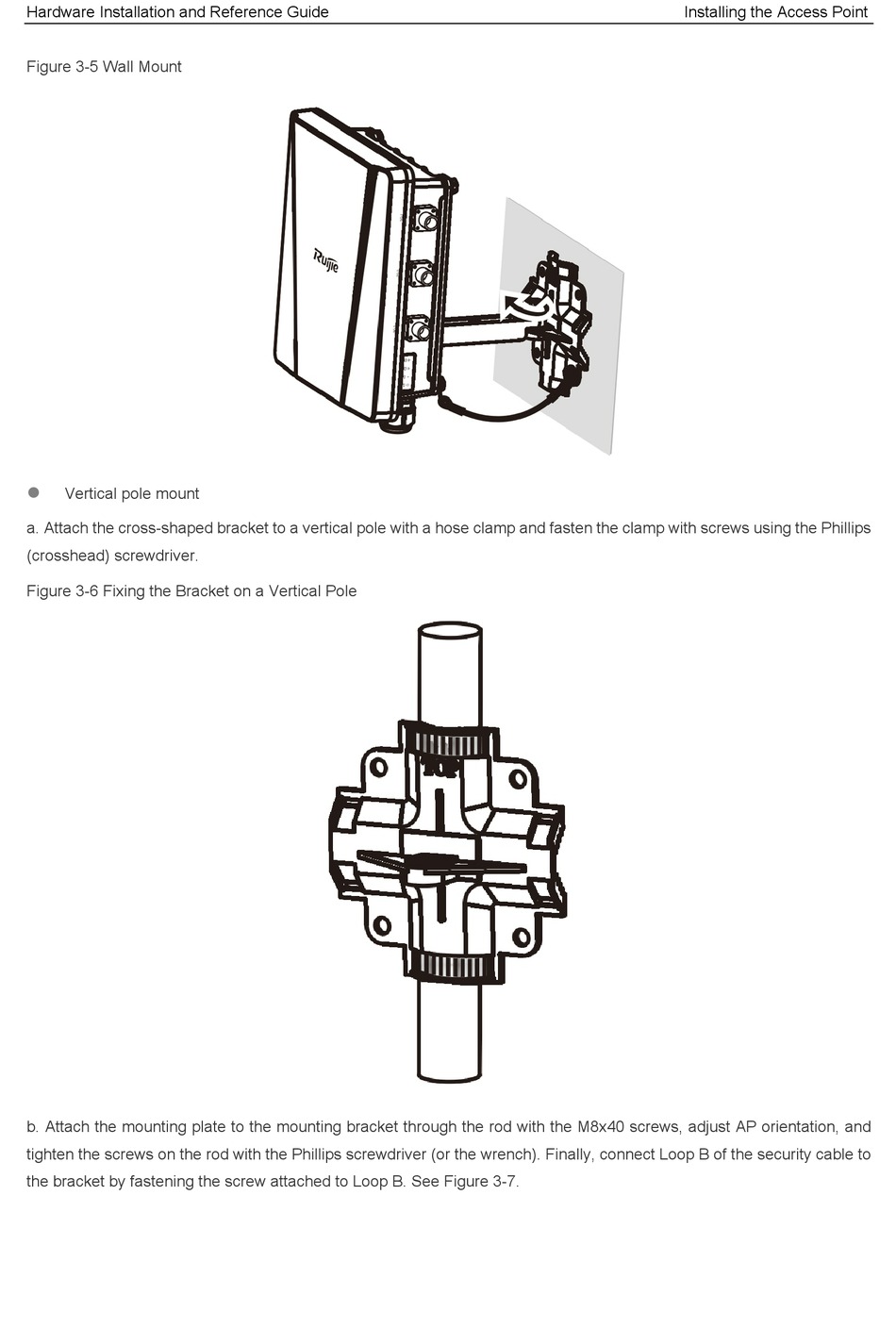

Figure 3-5 Wall Mount

Vertical pole mount
a. Attach the cross-shaped bracket to a vertical pole with a hose clamp and fasten the clamp with screws using the Phillips
(crosshead) screwdriver.
Figure 3-6 Fixing the Bracket on a Vertical Pole
b. Attach the mounting plate to the mounting bracket through the rod with the M8x40 screws, adjust AP orientation, and
tighten the screws on the rod with the Phillips screwdriver (or the wrench). Finally, connect Loop B of the security cable to
the bracket by fastening the screw attached to Loop B. See Figure 3-7.
Installing the Access Point
·
·
