Silent Knight 5808 - DMP Electronics CellComSLCF Application Note

APPLICA TION NOTE

Silent Knight 5808

MODEL CellCom
B

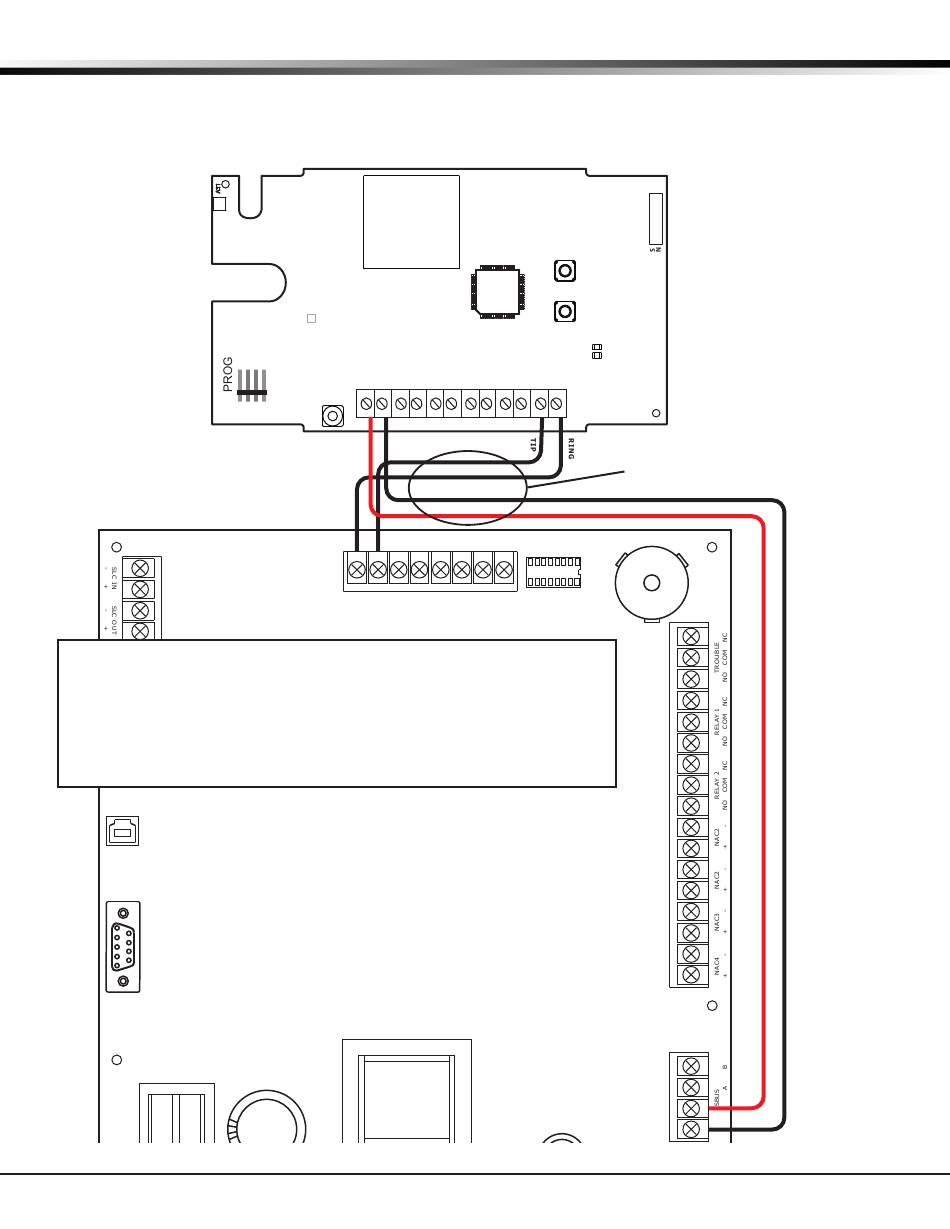

Connection Instructions:
1. Connect the 24VDC on the CellComSLCF to the + and - terminals on the
host panel.
2. Connect the phone line from TIP and RING on the CellComSLCF to TIP
and RING on host panel.
3. Normal Central Station programming.
Digital Monitoring Products
8
J8
R
J9
S3
+12 G Z1 Z2 Z3
RING TIP RING TIP RING TIP
TELCO 1 PHONE 1 TELCO 2
S1
RESET
S1
S2
LOAD
S2
G Z4+ Z4- O1 O2 T R
RING TIP
PHONE 2
Silent Knight
5808
CellComSLCF Cellular Communicator Dialer Capture Application Note
Must be installed in
conduit and located
in the same room
within 20 feet.
