Cellular communicator dialer capture
Table of Contents

Advertisement

Firelite MS-5UD
TB5
TB5
OUT1
OUT2
ZONE
ZONE
1
J2
TB9
JP31
-
RST AUX
3
+
PWR
2
-
RST/NONRS
1
AUXPWR
+

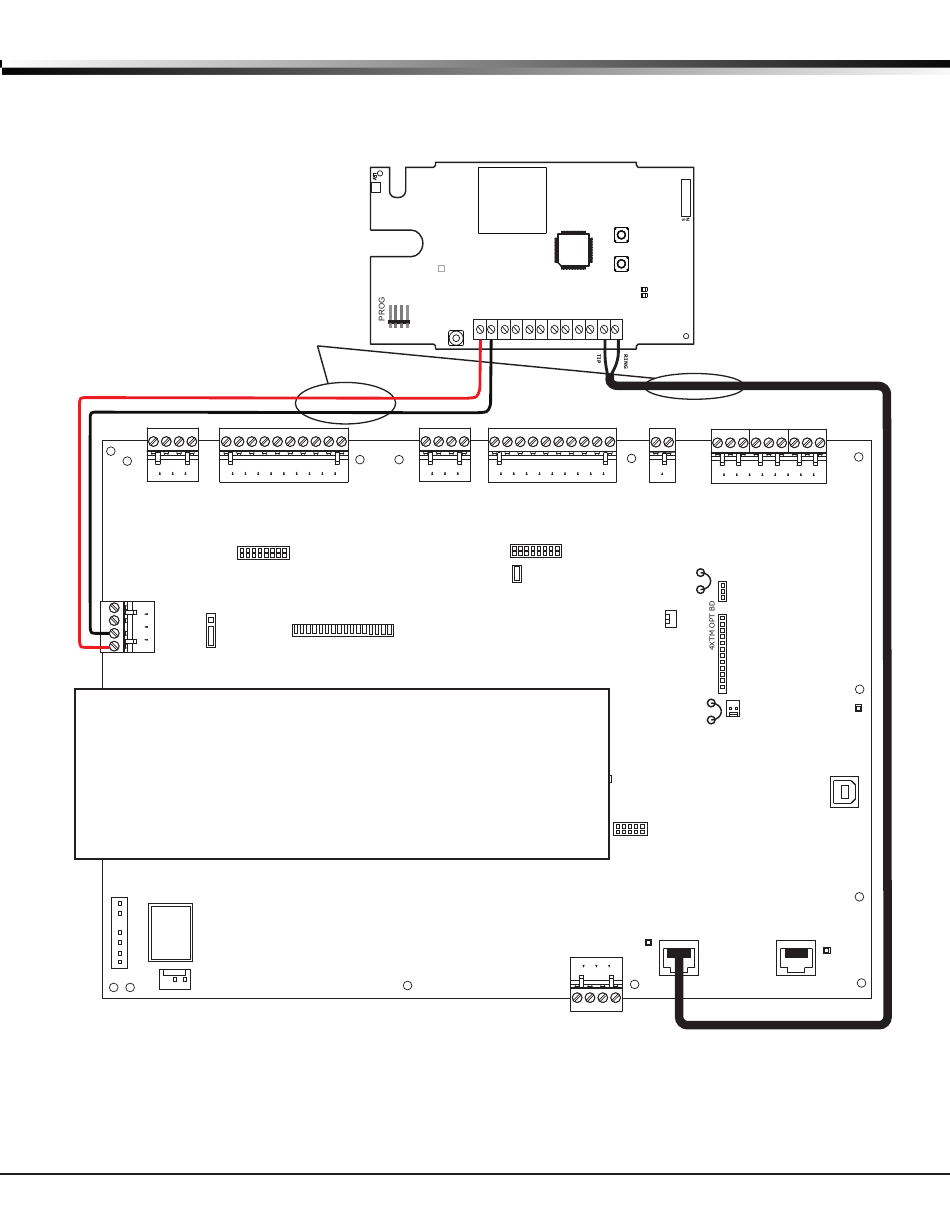

Connection Instructions:
1. Connect the 24VDC on CellComSLCF to the 24V Auxillary Power
header on the panel.
2. Connect the phone line from TIP and RING on the CellComSLCF to
J8 on the host panel.
3. Normal Central Station programming.
Note: This only applies to CellCom SLCF Rev 4 Lev E.
J15
J12
- +
CellComSLCF Cellular Communicator Dialer Capture Application Note
