Wiring Diagrams; Ademco Vista 128Fbp - DMP Electronics CellComSLCF Application Note

APPLICA TION NOTE

Wiring Diagrams

Ademco Vista 128FBP

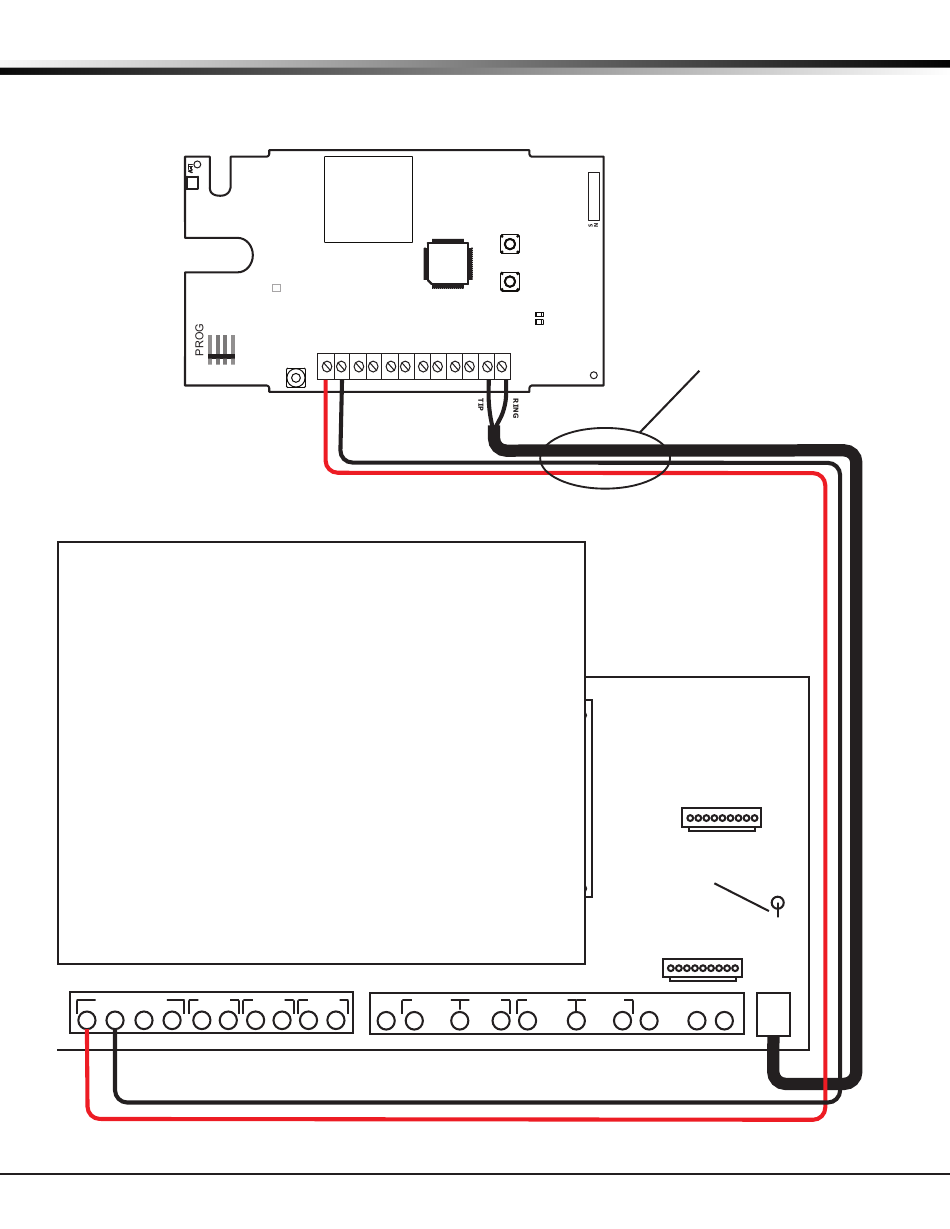

Connection Instructions:
1. Connect the 12VDC on the CellComSLCF to terminals 11
and 12 on the host panel.
2. Connect the phone line from TIP and RING on the CellComSLCF to
the Main Phone Jack on the host panel.
3. Cut the blue jumper on the host panel or disable the TLM.
To disable the TLM, follow these programming steps:
1. Enter programming.
2. *93 - Zone Prog? 1 = YES 0 = NO. Select YES.
3. Set to Confirm? 1 = YES 0 = NO. Select NO.
4. Enter Zone No. 000 = Quit.
5. Enter 974 then *. 974 Zone Type 24-Hour Trouble 19.
Change the zone type to 00. Press *.
6. Press * until Enter Zone No. 000 = Quit displays.
Enter 000 then *.
7. Confirm that you want to exit zone programming.
8. The default values for locations *30, *42, *43, *45
do not need to be changed.
9. Normal Central Station programming.
