APPLICA TION NOTE
Bosch FPD-7024 Fire Control Panel

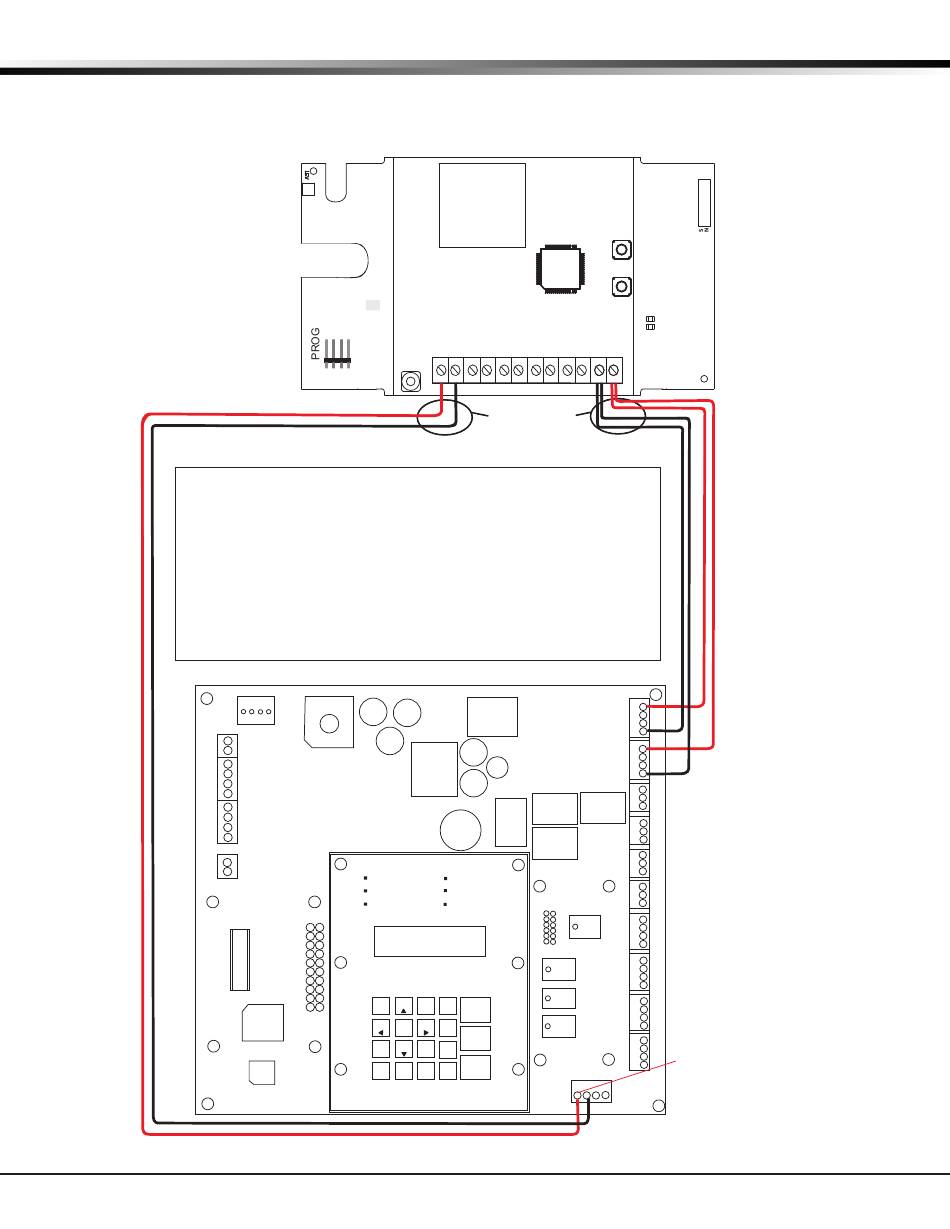

Connection Instructions:
1. Connect the 12VDC on the CellComSLCF to the R
and B connections on the Option Bus on the panel.
2. Connect the CellComSLCF Tip connection to the
T1 and T2 connections on the host panel.
3. Connect the CellComSLCF Ring connection to the R1
and R2 connections on the host panel.
4. Normal Central Station programming.
AUX-
AUX+
A+
B+
B-
A-
A+
B+
B-
A-
BAT-
24V
BAT+
Digital Monitoring Products
4
MODEL CellCom
J8
B
R
J9
S3
+12
G
Bosch
FPD-7024
Power
Trouble
Alarm
Silenced
Gnd Flt
Supervisory
1
2
3
Drill
4
5
6
Disable
8
7
9
Test
0
#
*
History
Back
Prog
Enter
S1
RESET
S1
S2
LOAD
S2
Z1
Z2
Z3
G
Z4+
Z4-
O1
O2
T
R
Must be installed
in conduit & located
in the same room
within 20 feet.
Acknowledge
Silence
Reset
R B G Y OPTION BUS
CellComSLCF Cellular Communicator Dialer Capture Application Note
R2
HR2
HT2
T2
R1
RH1
TH1
T1
NC3
COM3
NO3
NC2
COM2
NO2
NC1
COM1
NO1
SMK+
SMK-
4A+
4B+
4B-
4A-
3A+
3B+
3A-
3B-
2A+
2B+
2A-
2B-
1A+
1B+
12 VDC nominal, 500 mA
1B-
Do not draw more than
1A-
500mA from option bus.
Need help?
Do you have a question about the CellComSLCF and is the answer not in the manual?
