Ademco Vista 128FBPT

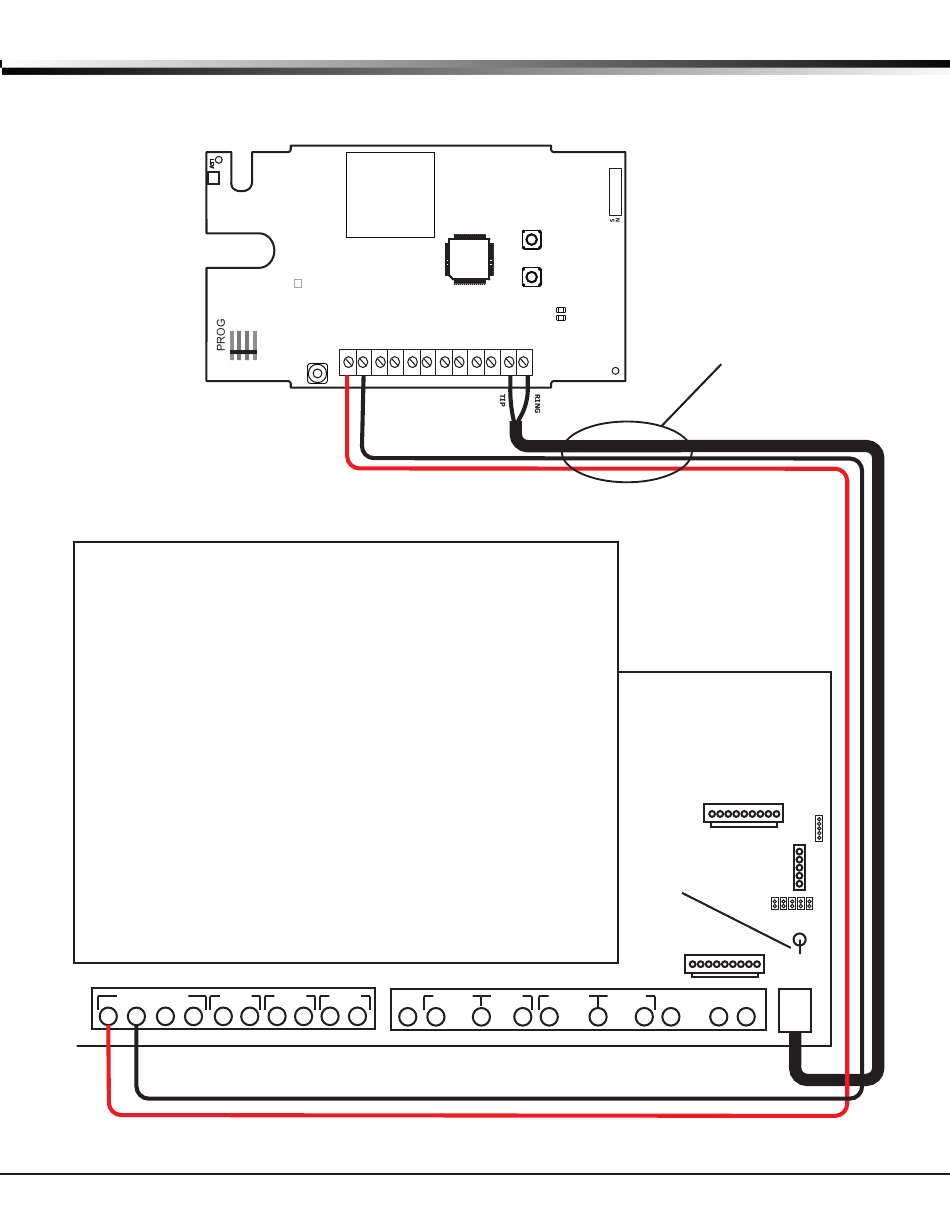

Connection Instructions:
1. Connect the 12VDC on the CellComSLCF to terminals 11
and 12 on the host panel.
2. Connect the phone line from TIP and RING on the CellComSLCF to the
Main Phone Jack on the host panel.
3. Check that the CellComSLCF is communicating with the host panel. If
it is not, cut the blue jumper on the host panel or disable the TLM.
To disable TLM, follow these programming steps:
1. Enter programming.
2. *93 - Zone Prog? 1 = YES 0 = NO. Select YES.
3. Set to Confirm? 1 = YES 0 = NO. Select NO.
4. Enter Zone No. 000 = Quit. Enter 974 then *.
5. 974 Zone Type 24-Hour Trouble 19. Change the zone type to 00.
Press *.
6. Press * until Enter Zone No. 000 = Quit displays. Enter 000 then *.
7. Confirm that you want to exit zone programming.
8. The default values for locations *42 and *45 do not need to be
changed. Locations *30 and *43 do not exist on this panel.
9. Normal Central Station programming.
KEYPAD PORT #2
1 2 3 4 5 6 7 8 9
KEYPAD PORT #1
AUX. RELAY
8
9
10
11
12
13
CellComSLCF Cellular Communicator Dialer Capture Application Note
MODEL CellCom
J8
B
R
J9
S3
+12
G
J4
ZONE 1
ZONE 2
ZONE 3
14
15
16
17
18
19
20
APPLICA TION NOTE
S1
RESET
S1
S2
LOAD
S2
Z1
Z2
Z3
G
Z4+
Z4-
O1
O2
T
R
ZONE 5
ZONE 6
21
22
23
24
25
ZONE 4
Must be installed in
conduit and located
in the same room
within 20 feet.
Ademco
Vista 128FBPT
VOLTAGE
1 2 3 4 5 6 7 8 9
TRIGGERS
Cut the W6
(BLUE) Jumper
INTERFACE TO 5140DLM
ZONE 7
ZONE 8
26
27
28
29
PC
J2
PRN
TXD
RXD
RTS/OTR
CTS/DSR
J13
W6
J3
BLUE
MAIN
GND
30
PHONE JACK
Digital Monitoring Products
