Emerson Rosemount 5600 Series Reference Manual
  1. Manuals
  2. Brands
  3. Emerson Manuals
  4. Transmitter
  5. Rosemount 5600 Series
  6. Reference manual

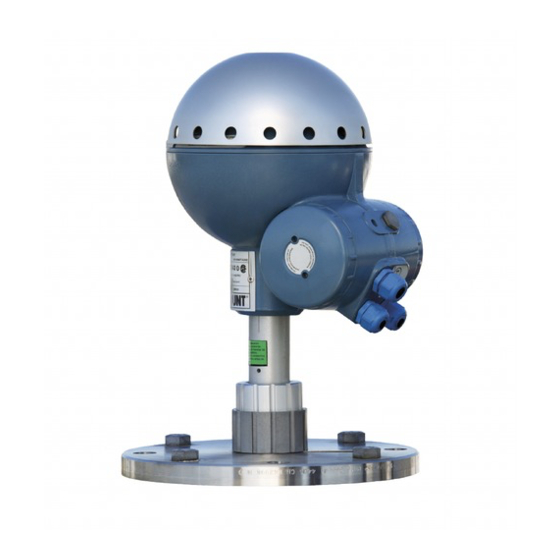

Emerson Rosemount 5600 Series Reference Manual

Radar level transmitter with foundation fieldbus protocol
Hide thumbs Also See for Rosemount 5600 Series:
Table of Contents

Advertisement

Quick Links

Download this manual

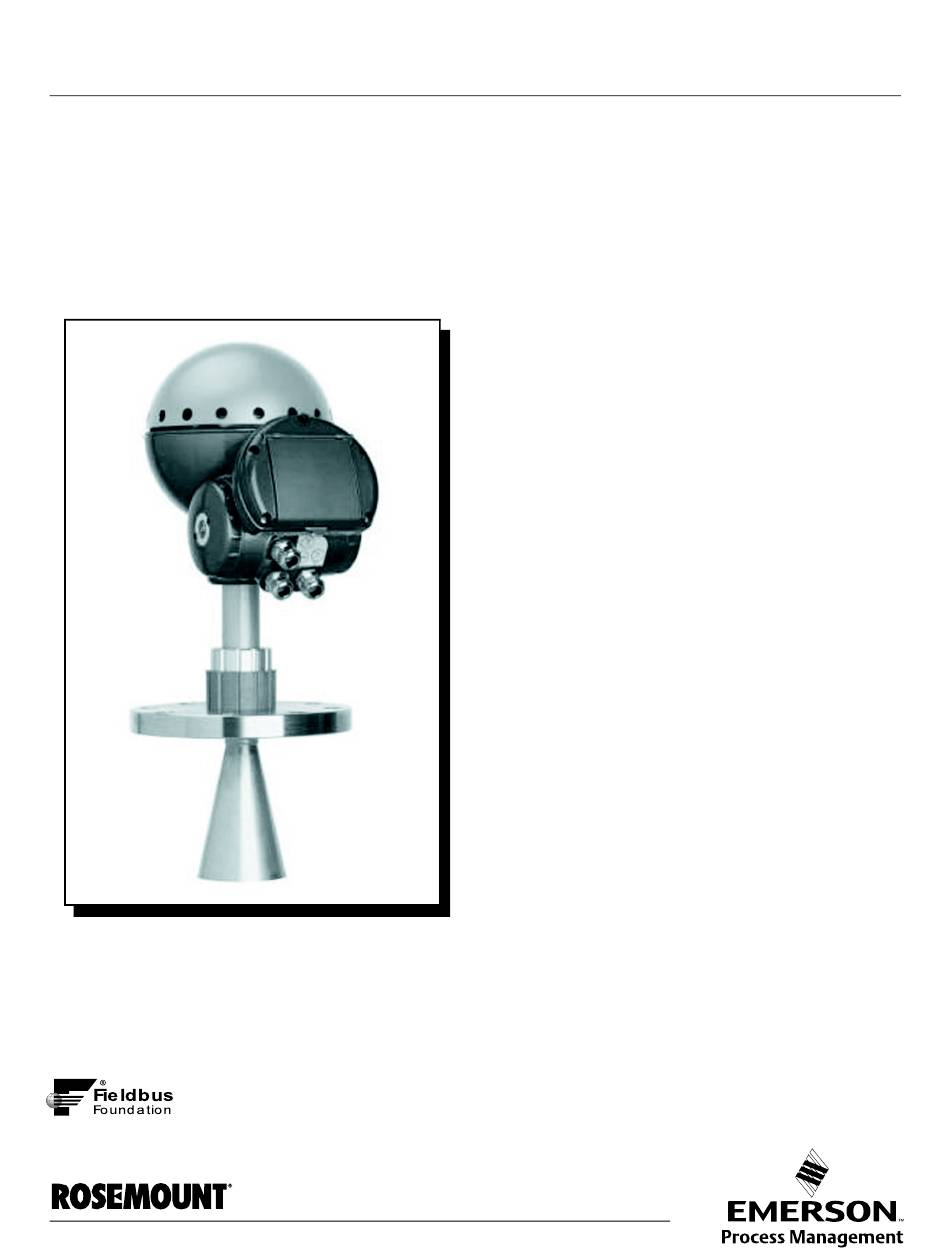

Reference Manual
00809-0100-4025, Rev AA
May 2003
Rosemount 5600 Series
Radar Level Transmitter
™
with F
Fieldbus Protocol
OUNDATION
www.rosemount.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Rosemount 5600 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Emerson Rosemount 5600 Series

Summary of Contents for Emerson Rosemount 5600 Series

  • Page 1 Reference Manual 00809-0100-4025, Rev AA May 2003 Rosemount 5600 Series Radar Level Transmitter ™ with F Fieldbus Protocol OUNDATION www.rosemount.com...
  • Page 2 North American Response Center Equipment service needs. 1-800-654-7768 (24 hours—includes Canada) Outside of the United States, contact your local Emerson Process Management, Rosemount Division representative. The products described in this document are NOT designed for nuclear-qualified applications. Using non-nuclear qualified products in applications that require nuclear-qualified hardware or products may cause inaccurate readings.

  • Page 3: Table Of Contents

    Reference Manual 00809-0100-4025, Rev AA Rosemount 5600 Series May 2003 Table of Contents SECTION 1 Using This Manual ........1-1 Service Support .
  • Page 4 Reference Manual 00809-0100-4025, Rev AA Rosemount 5600 Series May 2003 SECTION 4 Introduction ..........4-1 Overview.
  • Page 5 Reference Manual 00809-0100-4025, Rev AA Rosemount 5600 Series May 2003 SECTION 6 Overview ..........6-1 Safety Messages .
  • Page 6 Reference Manual 00809-0100-4025, Rev AA Rosemount 5600 Series May 2003 APPENDIX E Simulation ..........E-3 Damping .

  • Page 7: Using This Manual

    F fieldbus concept and wiring practices. OUNDATION USING THIS MANUAL The sections in this manual provide information on configurating, operating, and maintaining Rosemount 5600 Series Radar Transmitters with ™ fieldbus protocol output. OUNDATION ™ Refer to www.rosemount.com for further information relating to F OUNDATION fieldbus.
  • Page 8 Section 5: Operation and Maintenance contains operation and maintenance techniques for F fieldbus protocol only. For OUNDATION HART protocol see the Rosemount 5600 Series manual (00809-0100-4024). • Section 6: Service and Troubleshooting provides troubleshooting techniques for the most common operating problems for F OUNDATION fieldbus protocol only.

  • Page 9: Service Support

    Reference Manual 00809-00100-4025, Rev AA Rosemount 5600 Series May 2003 SERVICE SUPPORT To expedite the return process outside of the United States, contact the nearest Rosemount representative. Within the United States, call the Rosemount National Response Center using the 1-800-654-RSMT (7768) toll-free number. This center, available 24 hours a day, will assist you with any needed information or materials.
  • Page 10 Reference Manual 00809-00100-4025, Rev AA Rosemount 5600 Series May 2003...

  • Page 11: Overview

    Reference Manual 00809-0100-4025, Rev AA Rosemount 5600 Series May 2003 ™ Section 2 Fieldbus Technology OUNDATION and Fieldbus Function Blocks Overview ........page 2-1 Introduction .

  • Page 12: Device Descriptions

    Reference Manual 00809-0100-4025, Rev AA Rosemount 5600 Series May 2003 Figure 2-1 illustrates the internal structure of a function block. When execution begins, input parameter values from other blocks are snapped-in by the block. The input snap process ensures that these values do not change during the block execution.

  • Page 13: Block Operation

    Reference Manual 00809-0100-4025, Rev AA Rosemount 5600 Series May 2003 To promote consistency of definition and understanding, descriptive information, such as data type and length, is maintained in the device description. Device Descriptions are written using an open language called the Device Description Language (DDL).

  • Page 14: Network Communication

    Reference Manual 00809-0100-4025, Rev AA Rosemount 5600 Series May 2003 NETWORK Figure 2-2 illustrates a simple fieldbus network consisting of a single segment (link). COMMUNICATION Figure 2-2. Simple, Single-Link Fieldbus Network Fieldbus Link Link Master Basic Devices and/or link master devices...

  • Page 15: Device Addressing

    Fieldbus uses addresses between 0 and 255. Addresses 0 through 15 are reserved for group addressing and for use by the data link layer. For all Emerson Process Management, Rosemount Division fieldbus devices addresses 20 through 35 are available to the device. If there are two or more devices with the same address, the first device to start will use its programmed address.

  • Page 16: Unscheduled Transfers

    Reference Manual 00809-0100-4025, Rev AA Rosemount 5600 Series May 2003 Figure 2-3. Scheduled Data Transfer Schedule DT(A) CD(X,A) LAS = Link Active Scheduler P = Publisher Device X Device Y Device Z S = Subscriber CD = Compel Data DT = Data Transfer Packet Unscheduled Transfers Figure 2-4 diagrams an unscheduled transfer.

  • Page 17: Function Block Scheduling

    Reference Manual 00809-0100-4025, Rev AA Rosemount 5600 Series May 2003 Function Block Figure 2-5 shows an example of a link schedule. A single iteration of the link-wide schedule is called the macrocycle. When the system is configured Scheduling and the function blocks are linked, a master link-wide schedule is created for the LAS.
  • Page 18 Reference Manual 00809-0100-4025, Rev AA Rosemount 5600 Series May 2003...

  • Page 19: Overview

    Reference Manual 00809-0100-4025, Rev AA Rosemount 5600 Series May 2003 Section 3 Installation Overview ........page 3-1 Safety Messages .

  • Page 20: Node Address

    Reference Manual 00809-0100-4025, Rev AA Rosemount 5600 Series May 2003 Node Address The transmitter is shipped at a temporary address to allow a host to automatically assign an address. OUNDATION fieldbus Resource Block function blocks The Resource block contains diagnostic, hardware, electronics, and mode handling information.

  • Page 21: Fieldbus Connections

    Reference Manual 00809-0100-4025, Rev AA Rosemount 5600 Series May 2003 Fieldbus Connections For best installation practices use a fieldbus type A cable. Do not run unshielded signal wiring in conduit or open trays with power wiring or near heavy electrical equipment. Do not remove the transmitter cover in explosive atmospheres when the circuit is alive.

  • Page 22: Intrinsically Safe Wiring

    Reference Manual 00809-0100-4025, Rev AA Rosemount 5600 Series May 2003 1. Connect fieldbus wires to terminal 1 and 2 on the X1 side. These terminals are marked BUS terminals. The BUS terminals are polarity insensitive. 2. Connect the power wires to terminal 3 and 4 on the X1 side. These wires are separate from the fieldbus wires.

  • Page 23: Hazardous Locations

    Reference Manual 00809-0100-4025, Rev AA Rosemount 5600 Series May 2003 Hazardous Locations Refer to Appendix A: Product Certificates. Grounding Signal wiring of the fieldbus segment can not be grounded. Grounding out one of the signal wires will shut down the entire fieldbus segment.
  • Page 24 Reference Manual 00809-0100-4025, Rev AA Rosemount 5600 Series May 2003...

  • Page 25: Introduction

    Reference Manual 00809-0100-4025, Rev AA Rosemount 5600 Series May 2003 Section 4 Configuration Introduction ........page 4-1 Assigning Device Tag and Node Address .

  • Page 26: Overview

    Reference Manual 00809-0100-4025, Rev AA Rosemount 5600 Series May 2003 Overview Each F fieldbus configuration tool or host device has a different OUNDATION way of displaying and performing configurations. Some will use Device Descriptions (DD) and DD Methods to make configuration and displaying of data consistent across host platforms.
  • Page 27 Reference Manual 00809-00100-4025, Rev AA Rosemount 5600 Series May 2003 3. Setup the tank type (GEOM_TANK_TYPE) and tank geometry parameters (GEOM_TANK_BOTTOM_TYPE). The following combinations of Tank Type and Tank Bottom Type are valid: Table 4-2. Tank Bottom Tank Type Tank Bottom Type...

  • Page 28: Advanced Transmitter Setup

    Reference Manual 00809-0100-4025, Rev AA Rosemount 5600 Series May 2003 5. Set the process conditions: a. Process dielectric constants (ENV_DICECTR_CONST) b. Process conditions (ENV_ENVIRONMENT) Rapid level changes Optimize the transmitter for measurement conditions where the level changes quickly due to filling and emptying of the tank. A standard configured transmitter is able to track level changes of up to 4 inch/s (100 mm/s).

  • Page 29: Resource Block

    Reference Manual 00809-00100-4025, Rev AA Rosemount 5600 Series May 2003 OUNDATION FIELDBUS For more information refer to Appendix B: Level Transducer Block, Appendix C: Register Transducer Block, and Appendix D: Resource Block. FUNCTION BLOCKS Resource Block The Resource block contains diagnostic, hardware, electronics, and mode handling information.

  • Page 30: L_Type

    Reference Manual 00809-0100-4025, Rev AA Rosemount 5600 Series May 2003 L_TYPE The L_TYPE parameter defines the relationship of the transmitter measurement (Level, Distance, Level Rate, Signal Strength, Volume, and Average Temperature) to the desired output of the AI Block. The relationship can be direct or indirect.
  • Page 31 Reference Manual 00809-00100-4025, Rev AA Rosemount 5600 Series May 2003 Table 4-4. Level Rate Display Description ft/s feet per second meter per second meter per hour Table 4-5. Temperature Display Description Kelvin °C Degree Celsius °F Degree Fahrenheit Table 4-6. Signal Strength...

  • Page 32: Application Examples

    Reference Manual 00809-0100-4025, Rev AA Rosemount 5600 Series May 2003 APPLICATION EXAMPLES Application Example: Situation #1 Radar Level Transmitter, A level transmitter is measuring the level in a 33ft (10m) high tank. Level Value Figure 4-4. Situation #1 Diagram 100%...

  • Page 33: Application Example: Radar Level Transmitter, Level Value In Percent (%)

    Reference Manual 00809-00100-4025, Rev AA Rosemount 5600 Series May 2003 Application Example: Situation #2 Radar Level Transmitter, The level of a tank is to be measured using the Radar Level transmitter Level value in percent mounted on a nozzle on the top of the tank. The maximum level in the tank is 46ft (14m).

  • Page 34: Application Example: Radar Level Transmitter Used To Display Volume

    Reference Manual 00809-0100-4025, Rev AA Rosemount 5600 Series May 2003 Application Example: Situation #3 Radar Level Transmitter The volume of the tank is to be calculated using the Radar Level Transmitter. used to Display Volume Figure 4-8. Situation #3 Diagram...

  • Page 35: Solution #3.2

    Reference Manual 00809-00100-4025, Rev AA Rosemount 5600 Series May 2003 Solution #3.2 In this solution the level channel in the analog input block is used to obtain the volume. Table 4-11. Analog Input Function Block Configuration for Parameter Configured Values...

  • Page 36: Connecting The K2 Ade Modem

    Reference Manual 00809-00100-4025, Rev AA Rosemount 5600 Series May 2003 Connecting the K2 ADE Modem Once the Rosemount 2210 Display Unit has been disconnected, connect the K2 ADE modem to terminals 6 and 7 on the 5601 transmitter according to Figure 4-11.

  • Page 37: Connecting The Rosemount Rs485 Modem/Converter

    Reference Manual 00809-00100-4025, Rev AA Rosemount 5600 Series May 2003 Connecting the Rosemount RS485 Modem/Converter Once the Rosemount 2210 Display Unit has been disconnected, connect the Rosemount RS485 modem to terminals 6 and 7 on the 5601 transmitter according to Figure 4-13.

  • Page 38: Switching To Sensor Bus Mode

    Reference Manual 00809-00100-4025, Rev AA Rosemount 5600 Series May 2003 Switching to Sensor Bus By using the Sensor Bus method in DeltaV or applicable Fieldbus host the user is automatically setting the transmitter in “Out Of Service” mode. Then it Mode sets the transmitter in the Sensor Bus Mode.
  • Page 39 Reference Manual 00809-00100-4025, Rev AA Rosemount 5600 Series May 2003 Figure 4-15. Setting Modbus communication using the Radar Master 3. Search for the transmitter by entering the Device\New Device Figure 4-16. Search for transmitter using the Radar Master 4. Once the transmitter is found, select it and press OK.
  • Page 40 Reference Manual 00809-00100-4025, Rev AA Rosemount 5600 Series May 2003 4-16...

  • Page 41: Overview

    Reference Manual 00809-0100-4025, Rev AA Rosemount 5600 Series May 2003 Section 5 Operation and Maintenance Overview ........page 5-1 Safety Messages .

  • Page 42: Calibration Distance Configuration

    Reference Manual 00809-0100-4025, Rev AA Rosemount 5600 Series May 2003 Calibration Distance See “Configure Transmitter” on page 5-1 for further information. Configuration Master Reset Method To perform a master reset, run the Master Reset Method. If your system does not support methods, manually configure the Resource Block parameters (Resource Block) listed below.

  • Page 43: Simulation

    Reference Manual 00809-0100-4025, Rev AA Rosemount 5600 Series May 2003 Simulation For testing purposes, it is possible to manually drive the output of the Analog Input Block to a desired value. 1. Power up the device. If the SIMULATE jumper is in the OFF position, move it to the ON position.
  • Page 44 Reference Manual 00809-0100-4025, Rev AA Rosemount 5600 Series May 2003...

  • Page 45: Overview

    Reference Manual 00809-0100-4025, Rev AA Rosemount 5600 Series May 2003 Section 6 Service and Troubleshooting Overview ........page 6-1 Safety Messages .

  • Page 46: Field Upgrades

    Reference Manual 00809-0100-4025, Rev AA Rosemount 5600 Series May 2003 FIELD UPGRADES Labeling Each radar transmitter is labeled individually, so it is imperative that the approval codes on each label match exactly during upgrade. The label on the radar transmitter reflects the replacement model code for reordering an assembled unit.
  • Page 47 Reference Manual 00809-0100-4025, Rev AA Rosemount 5600 Series May 2003 Table 6-1. Rosemount 5600 troubleshooting table Symptom Corrective Actions OUNDATION fieldbus Card to Transmitter Verify Device Mode setting, should be Foundation fieldbus Communication Fault (Parameter: ENV_DEVICE_MODE) Restart method from Resource Block...

  • Page 48: Resource Block

    Reference Manual 00809-0100-4025, Rev AA Rosemount 5600 Series May 2003 RESOURCE BLOCK This section describes error conditions found in the Resource block. Read Table 6-2 through Table 6-4 to determine the appropriate corrective action. Block Errors Table 6-2 lists conditions reported in the BLOCK_ERR parameter.

  • Page 49: Transducer Block

    Reference Manual 00809-0100-4025, Rev AA Rosemount 5600 Series May 2003 TRANSDUCER BLOCK This section describes error conditions found in the Sensor Transducer Block. Table 6-5. Transducer Block BLOCK_ERR messages Condition Name and Description Other Out of Service: The actual mode is out of service Table 6-6.

  • Page 50: Analog Input (Ai) Function Block

    Reference Manual 00809-0100-4025, Rev AA Rosemount 5600 Series May 2003 ANALOG INPUT (AI) This section describes error conditions that are supported by the AI Block. Read Table 6-8 to determine the appropriate corrective action. FUNCTION BLOCK Table 6-7. AI BLOCK_ERR...
  • Page 51 Reference Manual 00809-0100-4025, Rev AA Rosemount 5600 Series May 2003 Table 6-8. Troubleshooting the AI block Symptom Possible Causes Recommended Actions BLOCK_ERR reads OUT OF 1. AI Block target mode target mode set to OOS. SERVICE (OOS) 2. Resource Block OUT OF SERVICE.

  • Page 52: Approved Manufacturing Locations

    Reference Manual 00809-0100-4025, Rev AA Rosemount 5600 Series May 2003 Appendix A Product Certificates Product Certificates ......page A-1 Approval Drawings .

  • Page 53: Hazardous Locations Certification

    Reference Manual 00809-0100-4025, Rev AA Rosemount 5600 Series May 2003 Hazardous Locations 5600 Series Level Transmitter Certification SIRA / CENELEC Flame-Proof certification. Certificate: SIRA EX97D1028 E1 With Intrinsically safe outputs: (All versions except those listed below) EEx de [ib/ia] IIC T6, (T -40°C, +70°C)

  • Page 54: 2210 Display Unit

    Reference Manual 00809-0100-4025, Rev AA Rosemount 5600 Series May 2003 2210 Display Unit SIRA / ATEX Intrinsically safe certification. Equipment group II, Category 2 (1) G Certificate: SIRA 00ATEX2062 E1 With Display Panel Code P or R: EEx ib IIC T4, (T -40°C, +70°C)

  • Page 55: Approval Drawings

    Reference Manual 00809-0100-4025, Rev AA Rosemount 5600 Series May 2003 APPROVAL DRAWINGS...
  • Page 56 Reference Manual 00809-0100-4025, Rev AA Rosemount 5600 Series May 2003...
  • Page 57 Reference Manual 00809-0100-4025, Rev AA Rosemount 5600 Series May 2003...
  • Page 58 Reference Manual 00809-0100-4025, Rev AA Rosemount 5600 Series May 2003...
  • Page 59 Reference Manual 00809-0100-4025, Rev AA Rosemount 5600 Series May 2003...

  • Page 60: Overview

    Reference Manual 00809-0100-4025, Rev AA Rosemount 5600 Series May 2003 Appendix B Level Transducer Block Supported Units ....... . . page B-7 Channel Assignments .

  • Page 61: Parameters And Descriptions

    Reference Manual 00809-0100-4025, Rev AA Rosemount 5600 Series April 2002 Parameters and Descriptions Table B-2. Level Transducer Block Parameters and Descriptions Index Parameter Number Description ST_REV The revision level of the static data associated with the function block. The revision value increments each time a static parameter value in the block is changed.
  • Page 62 Reference Manual 00809-0100-4025, Rev AA Rosemount 5600 Series May 2003 Index Parameter Number Description ANTENNA_TCL TCL (Tank connection Length) ANTENNA_PIPE_DIAM Pipe Diameter, see document 00809-0100-4024 GEOM_DIST_OFFSET Distance offset, see document 00809-0100-4024 GEOM_TANK_HEIGHT Tank Height, see document 00809-0100-4024 GEOM_MIN_LEVEL_OFFSET Minimum distance offset, see document 00809-0100-4024...
  • Page 63 Reference Manual 00809-0100-4025, Rev AA Rosemount 5600 Series April 2002 Table B-3. Antenna Type VALUE ANTENNNA_TYPE User Defined Cone 4, PTFE Cone 4, QUARTZ Reserved Reserved Cone 6, PTFE Cone 6, QUARTZ Reserved Reserved Cone 8, PTFE Cone 8, QUARTZ...
  • Page 64 Reference Manual 00809-0100-4025, Rev AA Rosemount 5600 Series May 2003 Table B-6. Presentation Value of Bit Number Env_Presentation Description 0x00000001 Reserved 0x00000002 Reserved 0x00000004 Reserved 0x00000008 Bottom echo visible 0x00000010 Tank contains double bounce 0x00000020 Slow Search 0x00000040 Double Surfaces...

  • Page 65: Diagnostics Device Errors

    Reference Manual 00809-0100-4025, Rev AA Rosemount 5600 Series April 2002 Diagnostics Device In addition to the BLOCK_ERR and XD_ERROR parameters, more detailed information on the measurement status can be obtained via Errors DIAGN_DEV_ERR. Table B-10 on page B-6 lists the potential errors and the possible corrective actions for the given values.

  • Page 66: Supported Units

    Reference Manual 00809-0100-4025, Rev AA Rosemount 5600 Series May 2003 Table B-12. Exclude from avg. temp. calculation Value of Bit Number TEMP_EXCL_AVG_CALC Description 0x00000001 Reserved 0x00000002 Exclude nbr. 1 0x00000004 Exclude nbr. 2 0x00000008 Exclude nbr. 3 0x00000010 Exclude nbr. 4 0x00000020 Exclude nbr.
  • Page 67 Reference Manual 00809-0100-4025, Rev AA Rosemount 5600 Series April 2002...
  • Page 68 Transducer Block (see Appendix B: Level Transducer Block) it should be handled with care and ONLY to be changed by trained and certified service personnel, or as guided by Emerson Process Management, Rosemount Division support personnel. REGISTER ACCESS TRANSDUCER BLOCK...
  • Page 69 Reference Manual 00809-0100-4025, Rev AA Rosemount 5600 Series May 2003 Index Parameter Number Description BLOCK_ALM The block alarm is used for all configuration, hardware, connection failure or system problems in the block. The cause of the alert is entered in the subcode field. The fist alert to become active will set the Active status in the Status parameter.
  • Page 70 Reference Manual 00809-0100-4025, Rev AA Rosemount 5600 Series May 2003 Index Parameter Number Description DB_REG_2_FLOAT DB_REG_2_INT_DEC DB_REG_3_NAME DB_REG_3_FLOAT DB_REG_3_INT_DEC DB_REG_4_NAME DB_REG_4_FLOAT DB_REG_4_INT_DEC DB_REG_4_NAME DB_REG_4_FLOAT DB_REG_4_INT_DEC DB_REG_5_NAME DB_REG_5_FLOAT DB_REG_5_INT_DEC DB_REG_6_NAME DB_REG_6_FLOAT DB_REG_6_INT_DEC DB_REG_7_NAME DB_REG_7_FLOAT DB_REG_7_INT_DEC DB_REG_8_NAME DB_REG_8_FLOAT DB_REG_8_INT_DEC DB_REG_9_NAME DB_REG_9_FLOAT DB_REG_9_INT_DEC...
  • Page 71 Reference Manual 00809-0100-4025, Rev AA Rosemount 5600 Series May 2003...

  • Page 72: Overview

    Parameters and Descriptions ..... . page D-2 OVERVIEW This section contains information on the Rosemount 5600 Series Radar Level Transmitter Resource Block. Descriptions of all Resource Block Parameters, errors, and diagnostics are included.
  • Page 73 Reference Manual 00809-0100-4025, Rev AA Rosemount 5600 Series May 2003 PARAMETERS AND The table below lists all of the configurable parameters of the Resource Block, including the descriptions and index numbers for each. DESCRIPTIONS Index Parameter Number Description ACK_OPTION Selection of whether alarms associated with the function block will be automatically acknowledged.
  • Page 74 Reference Manual 00809-0100-4025, Rev AA Rosemount 5600 Series May 2003 Index Parameter Number Description FAIL_SAFE Condition set by loss of communication to an output block, fault promoted to an output block or physical contact. When FAIL_SAFE condition is set, then output function blocks will perform their FAIL_SAFE actions.
  • Page 75 Reference Manual 00809-0100-4025, Rev AA Rosemount 5600 Series May 2003 Index Parameter Number Description RB_SFTWR_REV_ALL The string will contains the following fields: Major rev: 1-3 characters, decimal number 0-255 Minor rev: 1-3 characters, decimal number 0-255 Build rev: 1-5 characters, decimal number 0-255 Time of build: 8 characters, xx:xx:xx, military time Day of week of build: 3 characters, Sun, Mon,...
  • Page 76 Reference Manual 00809-0100-4025, Rev AA Rosemount 5600 Series May 2003 Appendix E Analog-Input Block Simulation ........page E-3 Damping .
  • Page 77 Reference Manual 00809-0100-4025, Rev AA Rosemount 5600 Series May 2003 Table E-1. Definitions of Analog Input Function Block System Parameters Index Parameter Number Units Description ACK_OPTION None Used to set auto acknowledgment of alarms. ALARM_HYS Percent The amount the alarm value must return within the alarm limit before the associated active alarm condition clears.
  • Page 78 Reference Manual 00809-0100-4025, Rev AA Rosemount 5600 Series May 2003 Index Parameter Number Units Description MODE_BLK None The actual, target, permitted, and normal modes of the block. Target: The mode to “go to” Actual: The mode the “block is currently in”...
  • Page 79 Reference Manual 00809-0100-4025, Rev AA Rosemount 5600 Series May 2003 Figure E-2. Analog Input Function Block Schematic Analog Measurement ALARM_TYPE Access HI_HI_LIM Analog HI_LIM Meas. Alarm LO_LO_LIM Detection LO_LIM OUT_D CHANNEL ALARM_HYS LOW_CUT Cutoff Filter Status Convert Calc. SIMULATE L_TYPE...
  • Page 80 Reference Manual 00809-0100-4025, Rev AA Rosemount 5600 Series May 2003 SIGNAL CONVERSION You can set the signal conversion type with the Linearization Type (L_TYPE) parameter. You can view the converted signal (in percent of XD_SCALE) through the FIELD_VAL parameter. Channel Value EU*@0% –...

  • Page 81: Block Errors

    Reference Manual 00809-0100-4025, Rev AA Rosemount 5600 Series May 2003 BLOCK ERRORS Table E-2 lists conditions reported in the BLOCK_ERR parameter. Table E-2. BLOCK_ERR Conditions Condition Number Condition Name and Description Other Block Configuration Error: the selected channel carries a measurement that is incompatible with the engineering units selected in XD_SCALE, the L_TYPE parameter is not configured, or CHANNEL = zero.

  • Page 82: Alarm Detection

    Reference Manual 00809-0100-4025, Rev AA Rosemount 5600 Series May 2003 ALARM DETECTION A block alarm will be generated whenever the BLOCK_ERR has an error bit set. The types of block error for the AI block are defined above. Process Alarm detection is based on the OUT value. You can configure the alarm limits of the following standard alarms: •...

  • Page 83: Advanced Features

    Reference Manual 00809-0100-4025, Rev AA Rosemount 5600 Series May 2003 Status Handling Normally, the status of the PV reflects the status of the measurement value, the operating condition of the I/O card, and any active alarm condition. In Auto mode, OUT reflects the value and status quality of the PV. In Man mode, the OUT status constant limit is set to indicate that the value is a constant and the OUT status is Good.

  • Page 84: Direct

    Reference Manual 00809-0100-4025, Rev AA Rosemount 5600 Series May 2003 CONFIGURE THE AI A minimum of four parameters are required to configure the AI Block. The parameters are described below with example configurations shown at the BLOCK end of this section.
  • Page 85 Reference Manual 00809-0100-4025, Rev AA Rosemount 5600 Series May 2003 XD_SCALE and OUT_SCALE The XD_SCALE and OUT_SCALE each include three parameters: 0%, 100%, and, engineering units. Set these based on the L_TYPE: L_TYPE is Direct When the desired output is the measured variable, set the XD_SCALE to represent the operating range of the process.

  • Page 86: Troubleshooting

    Reference Manual 00809-0100-4025, Rev AA Rosemount 5600 Series May 2003 NOTE To avoid configuration errors, only select Engineering Units for XD_SCALE and OUT_SCALE that are supported by the device. The supported units are: Table E-4. Length Display Description meter feet...
  • Page 87 Reference Manual 00809-0100-4025, Rev AA Rosemount 5600 Series May 2003 E-12...

  • Page 88: Commissioning The Device

    Configure the Parameters ......page F-2 The Rosemount 5600 Radar Transmitter with F fieldbus software OUNDATION is designed to permit remote testing and configuration using the Emerson Process Management DeltaV™ fieldbus configuration tool, or other fieldbus host. OUNDATION...

  • Page 89: Configure The Parameters

    Reference Manual 00809-0100-4025, Rev AA Rosemount 5600 Series May 2003 CONFIGURE THE PARAMETERS Figure F-2. Navigating to Configure Transmitter Figure F-3. Configuring the Rosemount 5600 Transducer Block (Process Tab)
  • Page 90 Reference Manual 00809-0100-4025, Rev AA Rosemount 5600 Series May 2003 Figure F-4. Configuring the Rosemount 5600 Transducer Block (Values Tab) Figure F-5. Configuring the Rosemount 5600 Transducer Block (Antenna Tab)
  • Page 91 Reference Manual 00809-0100-4025, Rev AA Rosemount 5600 Series May 2003 Figure F-6. Configuring the Rosemount 5600 Transducer Block (Geometry Tab) 5. Double click the transmitter you wish to configure/calibrate. The function blocks within the transmitter appear in the right half of the DeltaV Explorer window (see Figure F-7).
  • Page 92 Reference Manual 00809-0100-4025, Rev AA Rosemount 5600 Series May 2003 The parameters you change in the properties window remain highlighted (as in Figure F-7) so you can easily track changes. 9. Click the Apply button to apply the changes you made.
  • Page 93 Reference Manual 00809-0100-4025, Rev AA Rosemount 5600 Series May 2003...
  • Page 94 OUNDATION Model 5600 F Fieldbus 00809-0100-4025, Rev AA Rosemount 5600 Series 5/15/03 Index ....3-4 ..5-2 Active Outputs...
  • Page 95 Model 5600 F Fieldbus 00809-0100-4025, Rev AA Rosemount 5600 Series 5/15/03 ..4-6, E-9, E-10 ....4-2 .
  • Page 96 OUNDATION Model 5600 F Fieldbus 00809-0100-4025, Rev AA Rosemount 5600 Series 5/15/03 ....2-2 Definition ....4-2...
  • Page 97 OUNDATION Model 5600 F Fieldbus 00809-0100-4025, Rev AA Rosemount 5600 Series 5/15/03 Index-4...
  • Page 98 Reference Manual 00809-0100-4025, Rev AA Rosemount 5600 Series May 2003 Emerson Process Management Rosemount Inc. Emerson Process Management Emerson Process Management Asia Pacific 8200 Market Boulevard Heath Place Private Limited Chanhassen, MN 55317 USA Bognor Regis 1 Pandan Crescent T (U.S.) 1-800-999-9307...

Table of Contents
