Emerson Rosemount 5300 Quick Start Manual

Emerson Rosemount 5300 Quick Start Manual

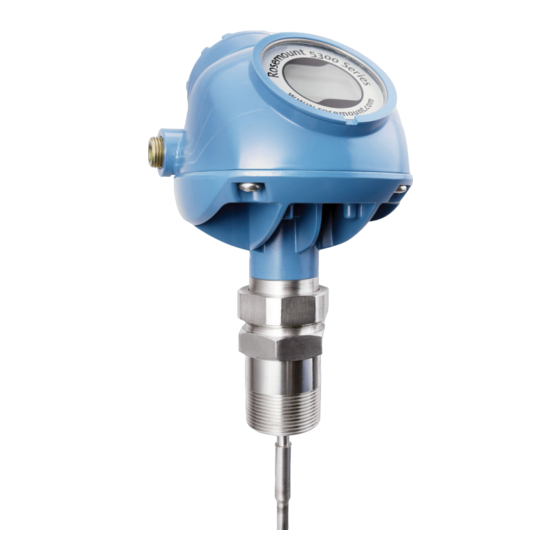

Level transmitter, guided wave radar
Hide thumbs Also See for Rosemount 5300:
Table of Contents

Advertisement

Quick Links

See also: Reference Manual
Quick Start Guide
00825-0100-4530, Rev GB
June 2017
™
Rosemount
5300 Level Transmitter
Guided Wave Radar

Advertisement

Table of Contents
loading

Related Manuals for Emerson Rosemount 5300

Summary of Contents for Emerson Rosemount 5300

  • Page 1 Quick Start Guide 00825-0100-4530, Rev GB June 2017 ™ Rosemount 5300 Level Transmitter Guided Wave Radar...

  • Page 2: Table Of Contents

    Avoid contact with the leads and terminals. High voltage that may be present on leads can cause electrical shock.  Make sure the main power to the Rosemount 5300 Level Transmitter is off and the lines to any other external power source are disconnected or not powered while wiring the transmitter. ...

  • Page 3: Confirm System Readiness (4-20 Ma Only)

    ) is loaded on your systems to  ensure proper communication. See Table Download the latest device driver from EmersonProcess.com/DeviceFiles.  Table 1. Rosemount 5300 Device Revisions and Files Firmware version Find device driver HART universal revision Device revision 2F0 and later 2A2 - 2D2 1.

  • Page 4: Mount Transmitter On Tank

    June 2017 Quick Start Guide Mount transmitter on tank For flexible single lead probes ordered with weight unmounted (option code WU), refer to section “Adjust probe length” on page 20 before mounting the transmitter. Threaded/flange/Tri Clamp tank connection Step 1: Seal and protect the threads Use anti-seize paste or PTFE tape according to your site procedures.

  • Page 5: Quick Start Guide June

    Quick Start Guide June 2017 Step 2: Continued... Tri Clamp BSP/G Gasket Gasket Step 3: Adjust display orientation (optional) Step 4: Tighten the nut Torque 30 Lbft (40 Nm)
  • Page 6 June 2017 Quick Start Guide Remote housing Step 1: Carefully remove the transmitter Step 2: Mount the probe on tank Gasket Step 3: Mount the remote connection on the probe Torque 30 Lbft (40 Nm)
  • Page 7 Quick Start Guide June 2017 Step 4: Mount the bracket to the pipe Horizontal pipe Vertical pipe Step 5: Fasten the housing support Step 6: Mount the transmitter head Torque 30 Lbft (40 Nm)

  • Page 8: Bracket Mounting

    June 2017 Quick Start Guide Bracket mounting Step 1: Mount the bracket to the pipe/wall On pipe Horizontal pipe Vertical pipe On wall Use screws suitable for the purpose. Step 2: Mount the transmitter with probe to the bracket...

  • Page 9: Prepare The Electrical Connections

    Figure 1. Wiring Diagram Field Communicator Current meter Load resistance (≥250  Approved IS barrier (for Intrinsically Safe installations only) Power supply HART modem Note Rosemount 5300 Level Transmitters with Flameproof/explosion-proof output have a built-in barrier; no external barrier needed.
  • Page 10 June 2017 Quick Start Guide Load limitations For HART communication, a minimum loop resistance of 250  is required. Maximum loop resistance is determined by the voltage level of the external power supply, as described by Figure Figure 2. Load Limitations Intrinsically safe installations R(...
  • Page 11 Quick Start Guide June 2017 Fieldbus OUNDATION Figure 3. Wiring Diagram Field Communicator Approved IS barrier (for Intrinsically Safe installations only) Fieldbus modem OUNDATION Power supply Note Rosemount 5300 Level Transmitters with Flameproof/explosion-proof output have a built-in barrier; no external barrier needed.

  • Page 12: Power Consumption

    If it is the last transmitter on the bus, connect the  120  termination resistor. HART - HART + Power supply 120  120  RS-485 Bus Note Rosemount 5300 Level Transmitters with Flameproof/Explosion-proof output have a built-in barrier; no external barrier needed.

  • Page 13: Connect Wiring And Power Up

    Quick Start Guide June 2017 Connect wiring and power up Step 1: Verify that the power supply is disconnected Step 2: Remove the cover Step 3: Remove the plastic plugs Step 4: Pull the cable through the cable gland/conduit Adapters are required if M20 glands are used. Step 5: Connect the cable wires See the wiring diagrams on page...

  • Page 14: Transmitter Housing Grounding

    June 2017 Quick Start Guide Step 6: Ensure proper grounding Make sure grounding is done (including IS ground inside Terminal compartment) according to Hazardous Locations Certifications, national and local electrical codes. Transmitter housing grounding The most effective transmitter housing grounding method is a direct connection to earth ground with minimal (<...
  • Page 15 Quick Start Guide June 2017 Step 7: Tighten the cable gland Apply PTFE tape or other sealant to the threads. Note Arrange the wiring with a drip loop. Step 8: Seal any unused port with the enclosed metal plug Apply PTFE tape or other sealant to the threads.
  • Page 16 June 2017 Quick Start Guide Step 9: Attach and tighten the cover 1. Verify the cover jam screw is completely threaded into the housing. H2.5 mm Cover jam screw 2. Attach and tighten the cover. The cover must be fully engaged to comply with explosion-proof requirements.

  • Page 17: Configure

    Quick Start Guide June 2017 Configure Basic configuration can easily be done either with Rosemount Radar Master, a ™ Field Communicator, AMS Device Manager, DeltaV , or any other DD (Device Description) or DTM compatible host system. For advanced configuration features, Rosemount Radar Master is recommended.
  • Page 18 June 2017 Quick Start Guide Step 2: Configure device HART Device Revision 3 1. Select Configure/Setup > Basic Setup. 2. Configure steps 1- 6 in the Basic Setup. (Variable Mapping, Probe, Geometry, Environment, Volume, and Analog Out) 3. Select Finish. 4.

  • Page 19: Safety Instrumented Systems (4-20 Ma Only)

    1. Applicable to “Liquid Product Level” and “Solid Product Level” measurement modes. 2. Applicable to “Interface Level with submerged” and “Product Level and Interface Level” measurement modes. Safety Instrumented Systems (4-20 mA only) For Safety Certified installations, refer to the Rosemount 5300 Reference Manual.

  • Page 20: Adjust Probe Length

    Adjust probe length This section describes how to adjust the length of flexible single lead probes with weight unmounted (option code WU). For other probe types, refer to Section 3 in the Rosemount 5300 Reference Manual. Step 1: Measure tank height...
  • Page 21 Quick Start Guide June 2017 Step 3: Mark where to cut the probe Step 4: Slide the weight up Step 5: Cut the probe at the mark...
  • Page 22 June 2017 Quick Start Guide Step 6: Fasten the weight Hand tighten, hard (see table for torque value) Weight material Torque (Nm) Stainless steel Alloy C-276 Alloy 400 Duplex 2205 Step 7: Update transmitter configuration to the new probe length Probe length: Probe length...

  • Page 23: Product Certifications

    A copy of the EU Declaration of Conformity can be found at the end of the Quick Start Guide. The most recent revision of the EU declaration of conformity can be found at Emerson.com/Rosemount. Ordinary location certification As standard, the transmitter has been examined and tested to determine that...
  • Page 24 June 2017 Quick Start Guide non-metallic material. To prevent the risk for electrostatic sparking the plastic surface should only be cleaned with a damp cloth. 2. WARNING – The apparatus enclosure contains aluminum and is considered to constitute a potential risk of ignition by impact or friction. Care must be taken into account during installation and use to prevent impact or friction.
  • Page 25 Quick Start Guide June 2017 IF FISCO Certificate: 1514653 Standards: CSA C22.2 No.0-M91, CSA C22.2 No.25-1966, CSA C22.2 No.30-M1986, CSA C22.2 No.94-M91, CSA C22.2 No.142-M1987, CSA C22.2 157-92, CAN/CSA C22.2 No. 60529:05, ANSI/ISA 12.27.01-2003 Markings: CL I, DIV 1, GP A, B, C, D, T4 see installation drawing 9150079-906; Non-Incendive Class III, DIV 1, Haz-loc CL I DIV 2, GP A, B, C, D, Maximum Ambient Temperature +60°C for Fieldbus and FISCO and +70 °C for HART, T4, Type 4X/IP66/IP67, Maximum Working Pressure 5000 psi, Dual Seal.
  • Page 26 June 2017 Quick Start Guide IA ATEX FISCO Certificate: Nemko 04ATEX1073X Standards: EN 60079-0:2012, EN 60079-1:2014, EN 60079-11:2012, EN 60079-26:2015, EN 60079-31:2014 II 1G Ex ia IIC T4 Ga (-50°C  Ta  +60°C) or Markings: II 1/2G Ex ia/ib IIC T4 Ga/Gb (-50°C  Ta  +60°C) II 1D Ex ia IIIC T69°C Da, (-50°C ...
  • Page 27 Quick Start Guide June 2017 International E7 IECEx Flameproof Certificate: IECEx NEM 06.0001X Standards: IEC 60079-0:2011, IEC 60079-1:2014-06, IEC 60079-11:2011; IEC 60079-26:2014, IEC 60079-31:2013 Markings: Ex db ia IIC T4 Ga/Gb (-40°C  Ta  +60°C /+70°C) Ex ta IIIC T69 °C/T79 °C Da (-40°C  Ta  +60°C /+70°C) Um=250 VAC, IP66/IP67 Specific Conditions for Safe Use (X): 1.
  • Page 28 June 2017 Quick Start Guide IG IECEx FISCO Certificate: IECEx NEM 06.0001X Standards: IEC 60079-0:2011, IEC 60079-1:2014-06, IEC 60079-11:2011; IEC 60079-26:2014, IEC 60079-31:2013 Markings: Ex ia IIC T4 Ga (-50°C  Ta  +60°C) Ex ib IIC T4 Ga/Gb (-50°C  Ta  +60°C) Ex ia IIIC T69°C Da (-50°C ...
  • Page 29 Quick Start Guide June 2017 Specific Conditions for Safe Use (X): 1. See certificate for Specific Conditions. I2 INMETRO Intrinsic Safety Certificate: UL-BR 17.0188X Standards: ABNT NBR IEC 60079-0:2008 + Errata 2011, ABNT NBR IEC 60079-11:2009, ABNT NBR IEC 60079-26:2008 + Errata 1:2008, ABNT NBR IEC 60079-31:2011 Markings: Ex ia IIC T4 Ga (- 50°C ...
  • Page 30 June 2017 Quick Start Guide Entity parameters HART 30 V 130 mA 7.26 nF 0 mH Entity parameters Fieldbus 30 V 300 mA 1.5 W 4.95 nF 0 mH IC China FISCO Certificate: GYJ16.1095X Standards: GB 3836.1/2/4/20-2000, GB 12476.4/5-2013, GB 12476.1-2010 Markings: Ex ia IIC T4 Ga (-50°C ...
  • Page 31 Quick Start Guide June 2017 9.12 India Flameproof, Intrinsically safe Certificate: P392482/1 Markings: Ex db ia IIC T4 Ga /Gb Ex ia IIC T4 Ga Specific Conditions for Safe Use (X): 1. See certificate for Specific Conditions. 9.13 Ukraine Flameproof, Intrinsically Safe Certificate: UA.TR.047.C.0352-13 Markings: 0 Ex ia IIC T4X, 1 Ex d ia IIC T4 X...
  • Page 32 June 2017 Quick Start Guide Application: Location classes Temperature Humidity Vibration Enclosure SLL Lloyds Register (LR) Type Approval Certificate: 15/20053 Application: Marine applications for use in environmental categories ENV1, ENV2, ENV3 and ENV5. U1 Overfill prevention Certificate: Z-65.16-476 Application: TÜV tested and approved by DIBt for overfill prevention according to the German WHG regulations.
  • Page 33 Quick Start Guide June 2017 Thread Adapter Thread Sizes Male thread Identification mark M20 x 1.5 – 6g ½- 14 NPT ½ - 14 NPT ¾ - 14 NPT ¾- 14 NPT Female thread Identification mark M20 x 1.5 – 6H ½...

  • Page 34: Eu Declaration Of Conformity

    June 2017 Quick Start Guide Figure 7. Rosemount 5300 EU Declaration of Conformity EU Declaration of Conformity No: 5300 Rosemount Tank Radar AB Layoutvägen 1 S-435 33 MÖLNLYCKE Sweden declare under our sole responsibility that the product, Rosemount™ 5300 Series Level and Interface Transmitter...
  • Page 35 Quick Start Guide June 2017 Schedule No: 5300 EMC Directive (2014/30/EU) EN 61326-1:2013 ATEX Directive (2014/34/EU) Nemko 04ATEX1073X Intrinsic Safety (Hart@ 4-20mA Equipment Group II, Category 1G, Ex ia IIC T4 Ga Equipment Group II, Category 1D, Ex ia IIIC T79° Da Intrinsic Safety (Foundation ®...
  • Page 36 June 2017 Quick Start Guide Schedule No: 5300 Nemko 10ATEX1072X Type of protection N, Non-sparking (Hart@ 4-20mA): Equipment Group II, Category 3G, Ex nA ic IIC T4 Gc Equipment Group II, Category 3D, Ex tc IIIC T79° Dc Type of protection N, Non-sparking (Foundation ® Fieldbus): Equipment Group II, Category 3G, Ex nA ic IIC T4 Gc Equipment Group II, Category 3D, Ex tc IIIC T69°...
  • Page 37 Quick Start Guide June 2017 Schedule No: 5300 ATEX Notified Body for EU Type Examination Certificates and Type Examination Certificates Nemko AS [Notified Body Number: 0470] P.O.Box 73 Blindern 0314 OSLO Norway ATEX Notified Body for Quality Assurance DNV Nemko Presafe AS [Notified Body Number: 2460] Veritasveien 1 1322 HØVIK Norway...
  • Page 38 June 2017 Quick Start Guide Figure 8. 9240030-936 - System Control Drawing for Hazardous Location Installation of Intrinsically Safe FM Approved Apparatus...
  • Page 39 Quick Start Guide June 2017 Figure 9. 9240030-937 - Installation Drawing for Hazardous Location Installation of Intrinsically Safe CSA Approved Apparatus...
  • Page 40 June 2017 Quick Start Guide Figure 10. 9240030-938 - Installation Drawing for Hazardous Location Installation of Intrinsically Safe ATEX and IECEx Approved Apparatus...
  • Page 41 Quick Start Guide June 2017 Figure 11. 9240031-957 - Installation Drawing Exn...
  • Page 42 June 2017 Quick Start Guide List of Model Parts with China RoHS Concentration above MCVs 含 含 有 管控物 超 的部件型号列表 China RoHS Hazardous Substances / 有害物 Hexavalent Polybrominated Polybrominated Part Name Lead Mercury Cadmium Chromium biphenyls diphenyl ethers 部件名称 汞...
  • Page 43 Quick Start Guide June 2017...
  • Page 44 Standard Terms and Conditions of Sale can be found on the Terms Singapore 128461 and Conditions of Sale page. +65 6777 8211 The Emerson logo is a trademark and service mark of Emerson Electric Co. +65 6777 0947 DeltaV, Rosemount, and Rosemount logotype are trademarks of Enquiries@AP.Emerson.com Emerson.
