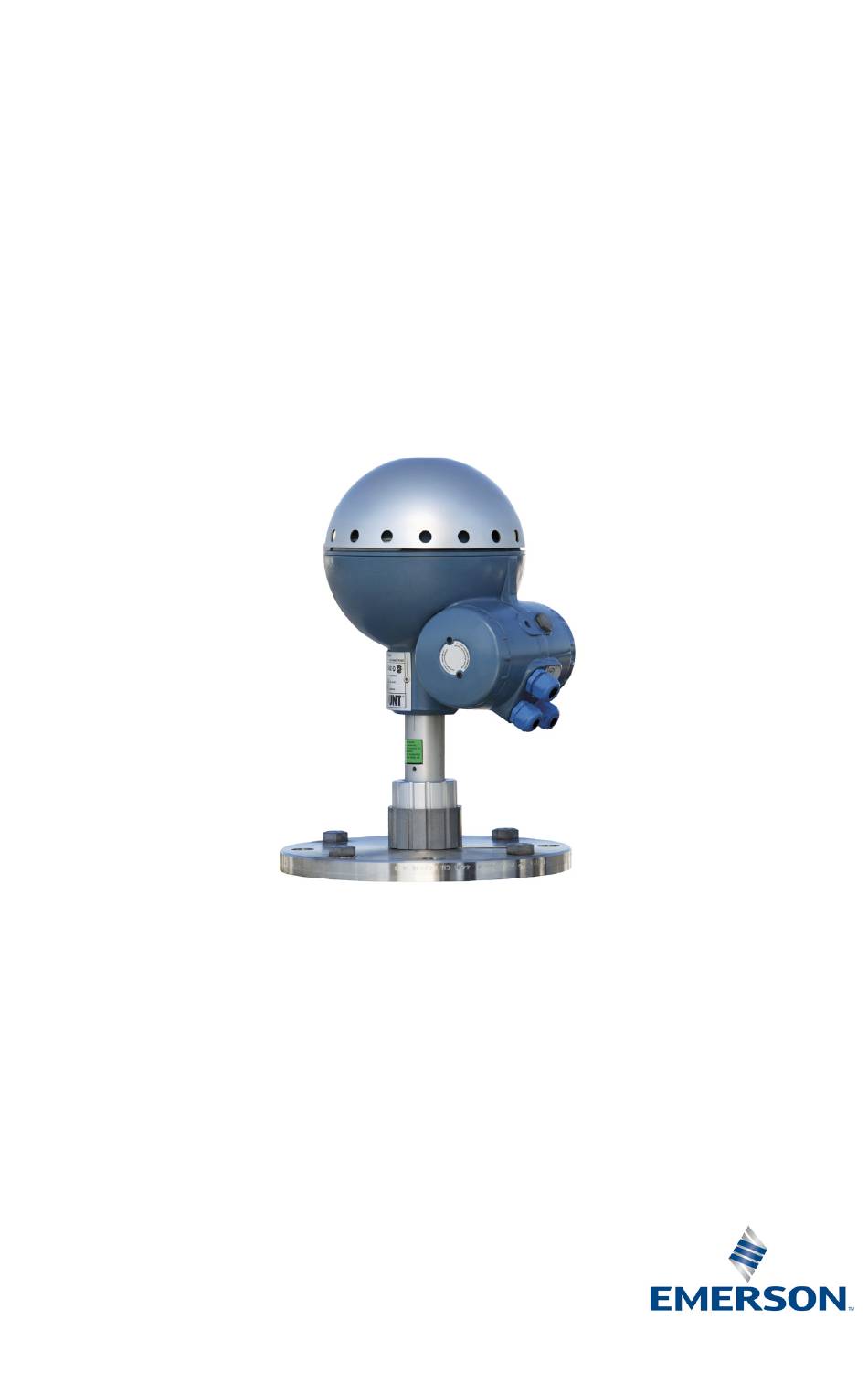

- Page 1 Quick Start Guide 00825-0100-4024, Rev BB October 2018 Rosemount™ 5600 Series Radar Level ® Transmitter with HART Protocol...
- Page 2 (I.S.) installations. Refer to the Rosemount 5600 Reference Manual for more instruction. The manual and this guide are also available electronically on Emerson.com/Rosemount. Failure to follow safe installation and service guidelines could result in death or serious injury. ...
-
Page 3: Mount The Transmitter
Quick Start Guide October 2018 Mount the transmitter Identify which type of antenna to install and find the relevant section below. Mounting the cone antenna Mounting the process seal antenna Mounting the cone antenna in a still-pipe/bridle Mounting the extended cone antenna ... - Page 4 October 2018 Quick Start Guide Figure 2. Mounting the transmitter head Protection Sleeve 9. Proceed with “Connect wiring and power up” on page Mounting the process seal antenna 1. Place a gasket on top of the socket and mount the antenna. Use the gasket supplied with the process seal antenna.
- Page 5 Quick Start Guide October 2018 Table 1. Recommended Torque (Nm) PTFE Seal DIN Flange PN16 PN40 DN100 DN150 ANSI Flange 150 Psi 300 Psi 4 in. 6 in. 4. Insert the wave guide tube into the upper wave guide. Figure 4. Inserting Wave Guide Tube and Mounting Transmitter Head Wave Guide Tube 5.
- Page 6 October 2018 Quick Start Guide Mounting the cone antenna in a still-pipe/bridle 1. Mount the antenna and the transmitter head in the same way as a standard cone antenna. See “Mounting the cone antenna” on page 2. Make sure that the inclination of the transmitter is less than 1°. Figure 5.
- Page 7 Quick Start Guide October 2018 Mounting the cone antenna with flushing connections 1. The flange is a part of the antenna assembly and welded to the cone antenna. Carefully fit the antenna assembly and appropriate gasket on the tank nozzle. Figure 7.
-
Page 8: Connect Wiring And Power Up
October 2018 Quick Start Guide Connect wiring and power up Use information on transmitter label for identification of enabled options. After identification, use the relevant connection information on the following pages. For identification of installed options, see label on the transmitter head. Find the 5601 xxxxZZxxx where ZZ is the primary output identification, see below. - Page 9 Quick Start Guide October 2018 Figure 11. Schematic Illustration of the Rosemount 5600 Transmitter Connection Junction Box X1 EEx e Junction Box X2 EEx i HART Primary Out Interface Non-IS Secondary Output Level 6.767 Primary Output IS 7 8 9 4 5 6 1 2 3 7 8 9...
- Page 10 October 2018 Quick Start Guide Figure 13. Typical HART Passive Output IS (Primary) Option 5B IS HART/4-20 mA, passive Input impedance ~250 Ohm 4-20 mA Zener Barrier External loop supply Junction Box X1 EEx e Hazardous Area Safe area HART Junction Box X2 interface Service PC...
-
Page 11: Configure The Transmitter
Quick Start Guide October 2018 Figure 15. Typical HART Active Output IS Option 5D IS HART/4-20 mA, active Voltage compliance 7-40 V Input impedance ~250 Ohm 4-20 mA Zener Barrier Junction Box X1 EEx e Hazardous Area Safe area HART Junction Box X2 Service PC interface... -
Page 12: Product Certifications
A copy of the EC Declaration of Conformity can be found at the end of the quick start guide. The most recent revision of the EC Declaration of Conformity can be found at Emerson.com/Rosemount. Ordinary location certification As standard, the transmitter has been examined and tested to determine that... - Page 13 Quick Start Guide October 2018 E5 Explosion-proof (XP), Dust-Ignitionproof (DIP) Certificate: FM 18US0053X Standards: Class 3600 - 2011; Class 3610 - 2010; Class 3615 - 2006; Class 3810 - 2005; ANSI/NEMA 250 - 1991 Markings: Explosion-proof for use in Class I, Division 1, Groups A, B, C and D, T6; Dust-Ignition-proof for use in Class II, III, Division 1, Groups E, F and G, T5;...
- Page 14 October 2018 Quick Start Guide Up to two Intrinsically 30 V 200 mA 1.3 W 0 nF 0 mH Safe Display Input Entity 30 V 300 mA 1.3 W 0 nF 0 mH parameters Europe E1 ATEX Flameproof Certificate: Sira 03ATEX1294X Standards: EN 60079-0:2012/A11:2013, EN 60079-1:2014, EN 60079-7:2015, EN 60079-11:2012, EN 60079-26:2015 &...
- Page 15 Quick Start Guide October 2018 International E7 IECEx Flameproof Certificate: IECEx SIR 05.0024X Standards: IEC 60079-0:2011, IEC 60079-1:2014, IEC 60079-7:2015, IEC 60079-11:2011, IEC 60079-26:2014 & IEC 60079-31:2013 Markings: Non-IS Outputs (Primary, Secondary) Ex db eb IIC T6 Ga/Gb (-40 °C to +70 °C) Ex tb IIIC T85 °C Db IP65 IS Outputs (Primary, Secondary and Display) alt.
- Page 16 October 2018 Quick Start Guide Brazil E2 INMETRO Flameproof Certificate: IEx 15.0021X Standards: ABNT NBR IEC 60079-0:2013; ABNT IEC 60079-1:2009; ABNT IEC 60079-7:2008; ABNT IEC 60079-11:2013; ABNT IEC 60079-26:2008; ABNT NBR IEC 60079-31:2011 Markings: Ex de IIC T6 Ga/Gb (-40°C Tamb +70°C) Ex de [ia Ga] IIC T6 Ga/Gb (-40°C ...
- Page 17 Quick Start Guide October 2018 4.12 Republic of Korea Flameproof Certificate: 2011-2456-9 Markings: Ex de IIC T6 tD A20 IP65 T85 ºC Ex de [iB] [iA] IIC T6 IP65 T85 ºC Ex de [iA] IIC T6 tD A20 IP65 T85 ºC Specific Conditions for Safe Use (X): 1.
- Page 18 October 2018 Quick Start Guide Table 2. Symbols Used on the Rosemount 5600 Series Level Transmitter The CE marking symbolizes the conformity of the product with the applicable Community requirements. The Ex Certificate is a statement of an independent Certification Body declaring that this product meets the requirement of the applicable European Intrinsic Safety directives.
- Page 19 No: 5600 Rosemount Tank Radar AB Layoutvägen 1 S-435 33 MÖLNLYCKE Sweden declare under our sole responsibility that the product, Rosemount 5600 Series Radar Level Transmitter manufactured by, Rosemount Tank Radar AB Layoutvägen 1 S-435 33 MÖLNLYCKE Sweden is in conformity with the provisions of the European Community Directives, including the latest amendments, as shown in the attached schedule.
- Page 20 October 2018 Quick Start Guide Schedule No: 5600 EMC Directive (2014/30/EU) EN 61326-1:2013 ATEX Directive (2014/34/EU) Sira 03ATEX1294X Flameproof: Equipment Group II, Category 1/2 G, Ex de IIC T6 Ga/Gb Equipment Group II, Category (2)(1) 1/2 G (Ex de [ib] [ia] IIC T6 Ga/Gb Equipment Group II, Category (1) 1/2 G (Ex de [ia] IIC T6 Ga/Gb Equipment Group II, Category 1 D, Ex t IIIC T85 Db EN 60079-0:2012;...
- Page 21 Quick Start Guide October 2018 Schedule No: 5600 ATEX Notified Body for EU Type Examination Certificates and Type Examination Certificates Sira Certification Service [Notified Body Number: 0518] Rake Lane, Eccleston Chester CH4 9JN United Kingdom ATEX Notified Body for Quality Assurance DNV Nemko Presafe AS [Notified Body Number: 2460] Veritasveien 1 1322 HØVIK...
- Page 22 October 2018 Quick Start Guide List of Model Parts with China RoHS Concentration above MCVs 含 含 有 管控物 超 的部件型号列表 China RoHS Hazardous Substances / 有害物 Hexavalent Polybrominated Polybrominated Part Name Lead Mercury Cadmium Chromium biphenyls diphenyl ethers 部件名称 汞...
- Page 23 Quick Start Guide October 2018...
- Page 24 Dubai, United Arab Emirates Electric Co. +971 4 8118100 Rosemount is a mark of one of the Emerson family of companies. All other marks are the property of their respective owners. +971 4 8865465 © 2018 Emerson. All rights reserved.
