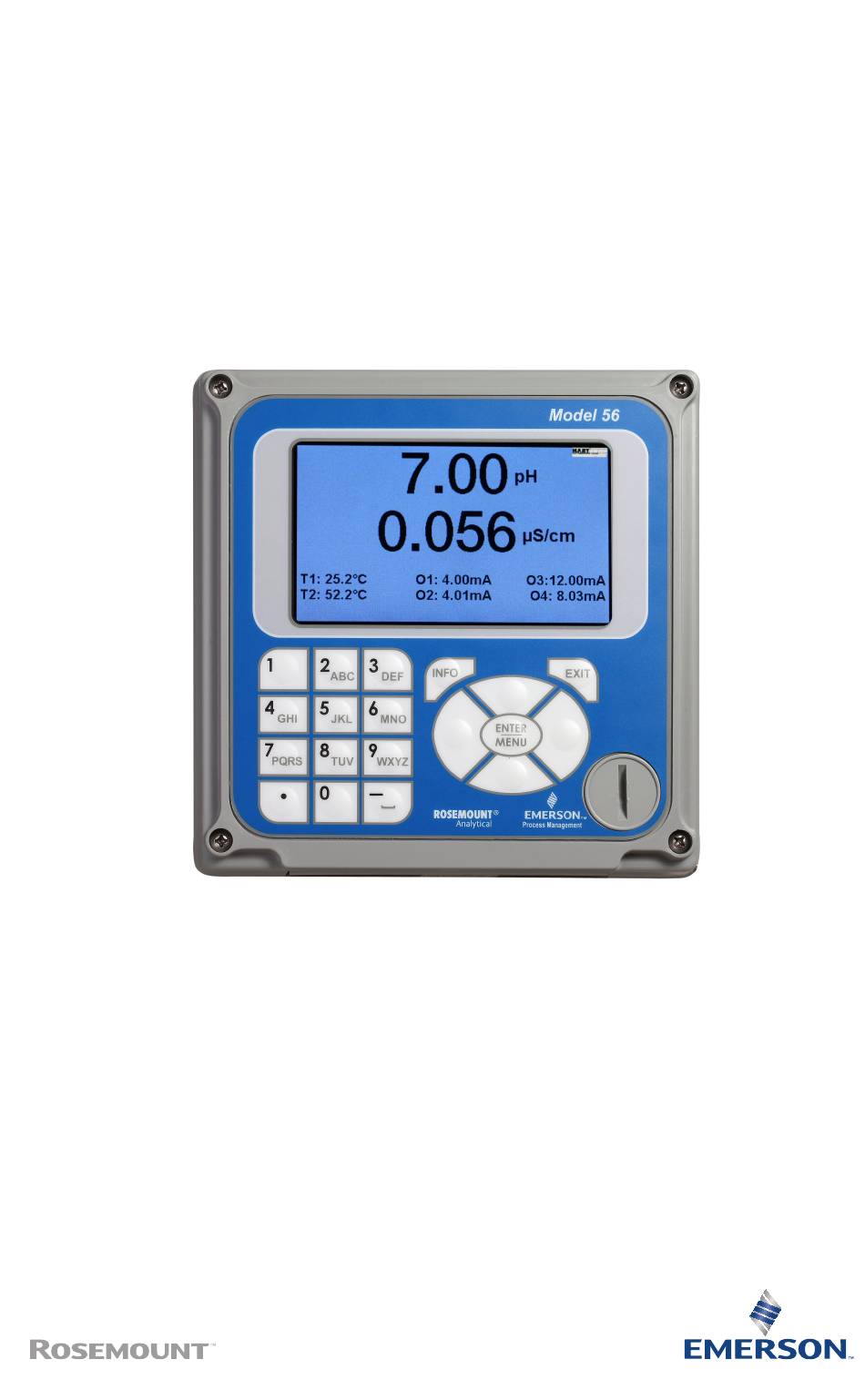

Quick Start Guide
00825-0100-3056, Rev AA
April 2019
Rosemount
56
Dual Channel Transmitter

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Rosemount 56 and is the answer not in the manual?

Questions and answers

Summary of Contents for Emerson Rosemount 56

  • Page 1 Quick Start Guide 00825-0100-3056, Rev AA April 2019 ™ Rosemount Dual Channel Transmitter...
  • Page 2: Safety Information

    April 2019 Safety Information Your instrument purchase from Emerson is one of the finest available for your particular application. These instruments have been designed and tested to meet many national and international standards. Experience indicates that its performance is directly related to the quailty of the installation and knowledge of the user in operating and maintaining the instrument.
  • Page 3: Table Of Contents

    April 2019 Quick Start Guide CAUTION Radio interference This product generates, uses, and can radiate radio frequency energy and thus can cause radio communication interference. Improper installation or operation may increase such interference. As temporarily permitted by regulation, this unit has not been tested for compliance within the limits of Class A computing devices, pursuant to Subpart J of Part 15 of FCC rules, which are designed to provide reasonable protection against such interference.
  • Page 4 Quick Start Guide April 2019 Emerson.com/Rosemount...
  • Page 5: First Steps

    2. If there is no apparent damage, unpack the container. Be sure all items shown on the packing list are present. If items are missing, notify Emerson immediately. Mount Figure 1-1: Panel Mount Front View Quick Start Guide...
  • Page 6 Quick Start Guide April 2019 Figure 1-2: Panel Mount Side View A. Panel mount gasket B. Panel supplied by others. Maximum thickness: .375 in. (9.52 mm) C. 4X mounting bracket and screws provided with instrument Emerson.com/Rosemount...
  • Page 7 April 2019 Quick Start Guide Figure 1-3: Panel Mount Bottom View A. Conduit openings Quick Start Guide...
  • Page 8 Quick Start Guide April 2019 Figure 1-4: Panel Mount Panel Cut-Out A. Maximum Emerson.com/Rosemount...
  • Page 9 April 2019 Quick Start Guide Figure 1-5: Wall Mount Front View A. 2-in. pipe supplied by customer B. 4X cover screw Quick Start Guide...
  • Page 10 Quick Start Guide April 2019 Figure 1-6: Wall Mount Side View Emerson.com/Rosemount...
  • Page 11 April 2019 Quick Start Guide Figure 1-7: Pipe Mount Bottom View A. Front panel B. 2-in. pipe mount bracket C. 2X set U-bolts for 2-in. pipe in kit PN 23820-00 Quick Start Guide...
  • Page 12 Quick Start Guide April 2019 Figure 1-8: Pipe Mount Side View Emerson.com/Rosemount...
  • Page 13: Install

    This symbol identifies a potential hazard. When this symbol appears, consult the manual for appropriate action. Prepare conduit openings There are six conduit openings in all configurations of the transmitter. Note Emerson fits four of openings with plugs upon shipment. Quick Start Guide...
  • Page 14 To maintain ingress protection for outdoor use, seal unused conduit holes with suitable conduit plugs. Note Use watertight fittings and hubs that comply with your requirements. Connect the conduit hub to the conduit before attaching the fitting to the transmitter. Emerson.com/Rosemount...
  • Page 15: Wire

    April 2019 Quick Start Guide Wire General wiring information The transmitter is easy to wire. The front panel is hinged at the bottom. The panel swings down for easy access to the wiring locations. 3.1.1 Removable connectors and signal input boards The transmitter uses removable signal input boards and communication boards for ease of wiring and installation.
  • Page 16 3.1.4 Alarm relays Emerson supplies four alarm relays with the switching power supply (85 to 264 Vac, 03 order code) and the 24 Vdc power supply (20 - 30 Vdc, 02 order code). You can use all relays for process measurement(s) or temperature.
  • Page 17 April 2019 Quick Start Guide ™ Figure 3-1: Power Wiring for Rosemount 56 24 Vdc Power Supply (O2 Order Code) PN 24365-00 A. To main board (ribbon cable) B. Rosemount 56 DC power supply board PN 24365-00 Quick Start Guide...
  • Page 18 Quick Start Guide April 2019 Figure 3-2: Power Wiring for Rosemount 56 85-264 Vac Power Supply (03 Order Code) PN 24538-00 A. Earth ground B. Neutral C. Line power D. To main board (ribbon cable) E. Rosemount 56 AC power supply board PN 24358-00...
  • Page 19 A. To power supply PCB (ribbon cable) B. To digital I/O comm. board C. To sensor 1 signal board D. To sensor 2 signal board E. Hinge pin F. Rosemount 56 main board, CPU PCB PN 24308-00 G. Hinge pin Quick Start Guide...
  • Page 20 Quick Start Guide April 2019 For recommended wire entry points, see Figure 2-1. Figure 3-4: Contacting Conductivity Signal Board and Sensor Cable Leads Emerson.com/Rosemount...
  • Page 21: Navigating The Display

    April 2019 Quick Start Guide Navigating the display User interface The transmitter has a large display which shows two live measurement readouts in large digits and up to six additional process variables or diagnostic parameters concurrently. The display is back-lit, and you can customize the format to meet your requirements.
  • Page 22 During menu operation, use these keys to move the highlighted screen selection to another adjacent screen item. During tag entry, use the Left key is used to delete entries during active alpha-numeric character entry. Alpha-numeric keypad The alpha-numeric keypad has 12 keys as outlined below. Emerson.com/Rosemount...
  • Page 23 April 2019 Quick Start Guide • Nine keys are alpha-numeric. • One key is a dedicated key. • One key is a dedicated key. • One key is a dedicated " " (decimal point) key. The alpha-numeric keypad operates the same as entries on a mobile phone. The nine alpha-numeric keys have multiple characters that you can use for tag entries or during programming and calibration steps.
  • Page 24: Menu System

    If the transmitter detects a problem with itself or the sensor, the Fault banner (red) and/or Warning banner (yellow) appears at the bottom of the main display. A fault requires immediate attention. A warning indicates a problematic condition or an impending failure. For detailed troubleshooting assistance, press INFO. Emerson.com/Rosemount...
  • Page 25: Start Up Transmitter

    April 2019 Quick Start Guide Start up transmitter Procedure 1. Wire sensor(s) to the signal boards. Wire for wiring instructions. Refer to the sensor Quick Start Guide for additional details. Make current output, alarm relay, and power connections. 2. Once connections are secured and verified, apply power to the transmitter.
  • Page 26 Using the Down and Right arrow keys, select a menu and navigate to the screen of choice. 6. To return the transmitter to the factory default settings, choose Reset under the Menu selection screen. ™ Please call Rosemount Customer Support Center at 1-800-854-8527 if you need further support. Emerson.com/Rosemount...
  • Page 27: Declaration Of Conformity

    April 2019 Quick Start Guide Declaration of Conformity Note Please see website for most recent Declaration. Quick Start Guide...
  • Page 28 Quick Start Guide April 2019 Emerson.com/Rosemount...
  • Page 29: China Rohs Table

    April 2019 Quick Start Guide China RoHS Table Quick Start Guide...
  • Page 30 Quick Start Guide April 2019 Emerson.com/Rosemount...
  • Page 31 April 2019 Quick Start Guide Quick Start Guide...
  • Page 32 Linkedin.com/company/Emerson- Automation-Solutions The Emerson logo is a trademark and service mark of Emerson Electric Co. Rosemount is a twitter.com/rosemount_news mark of one of the Emerson family of companies. Facebook.com/Rosemount All other marks are the property of their youtube.com/RosemountMeasurement respective owners.
