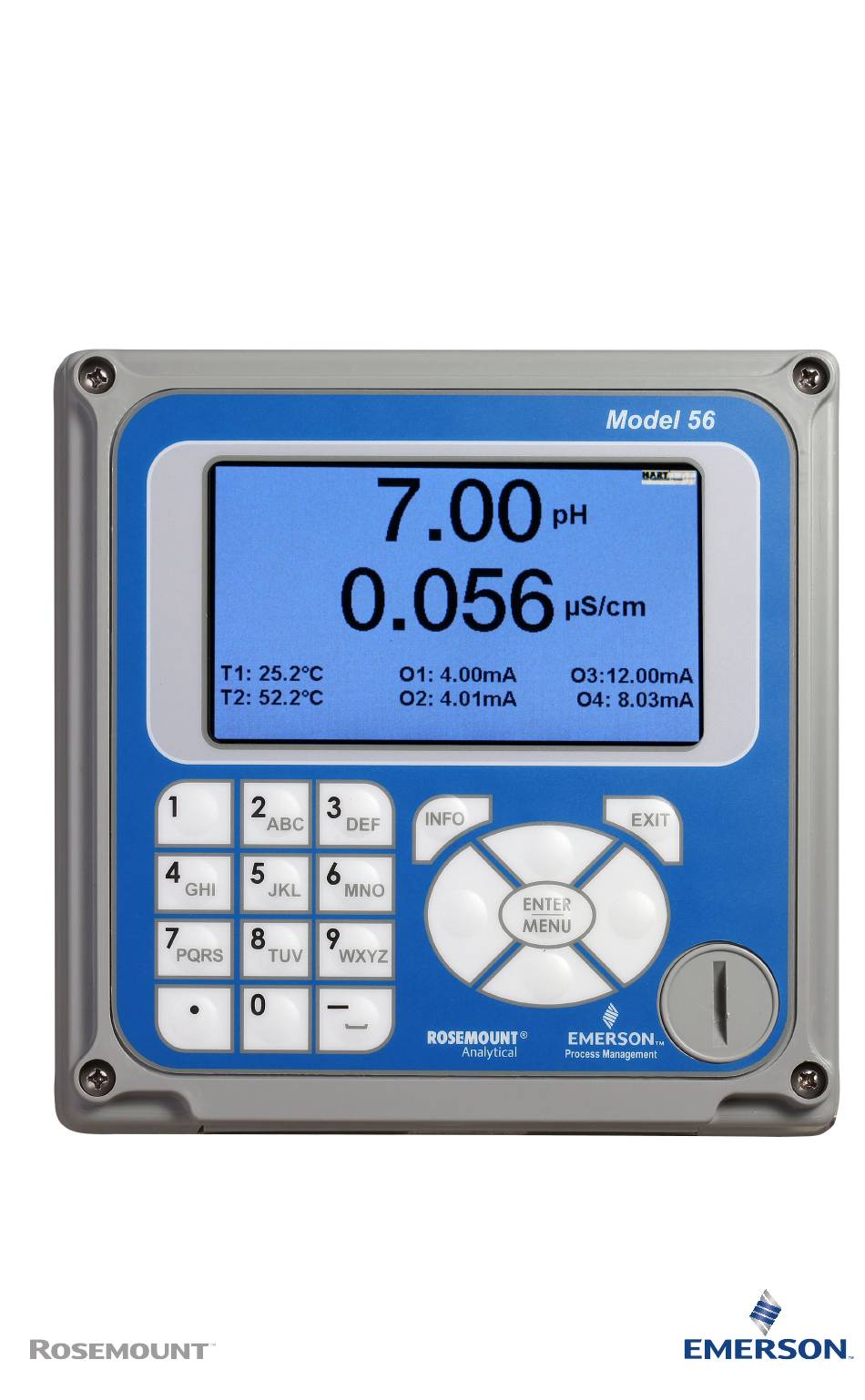

- Page 1 Quick Start Guide 00825-0100-3056, Rev AC February 2022 ™ Rosemount Dual Channel Transmitter...
- Page 2 February 2022 Safety information Your instrument purchase from Emerson is one of the finest available for your particular application. These instruments have been designed and tested to meet many national and international standards. Experience indicates that its performance is directly related to the quality of the installation and knowledge of the user in operating and maintaining the instrument.
-
Page 3: Table Of Contents
Ensure that you have received the correct model and options from your purchase order. Verify that this Quick Start Guide covers your model and options. If it does not, call the Emerson Customer Care Center at +1 800 999 9307 to request the correct Quick Start Guide. - Page 4 Quick Start Guide February 2022 China RoHS table........................33 Emerson.com/Rosemount...
-
Page 5: First Steps
2. If there is no apparent damage, unpack the container. Be sure all items shown on the packing list are present. If items are missing, notify Emerson immediately. Mounting Note Dimensions in the following drawings show inches above and millimeters below. - Page 6 Quick Start Guide February 2022 Figure 1-2: Panel mount, side view A. Panel mount gasket B. Panel supplied by customer. Maximum thickness: 0.375 in (9.52 mm) C. Four mounting brackets and screws provided with instrument Emerson.com/Rosemount...
- Page 7 February 2022 Quick Start Guide Figure 1-3: Panel mount, bottom view A. Conduit openings Quick Start Guide...
- Page 8 Quick Start Guide February 2022 Figure 1-4: Panel cut-out A. Maximum Emerson.com/Rosemount...
- Page 9 February 2022 Quick Start Guide Figure 1-5: Wall mount, front view A. 2 in (51 mm) pipe supplied by customer B. Four cover screws Quick Start Guide...
- Page 10 Quick Start Guide February 2022 Figure 1-6: Wall mount, side view Emerson.com/Rosemount...
- Page 11 February 2022 Quick Start Guide Figure 1-7: Pipe mount, bottom view A. Front panel B. 2 in (51 mm) pipe mount bracket C. Two sets U-bolts for 2 in (51 mm) pipe in kit, PN 23820-00 Quick Start Guide...
- Page 12 Quick Start Guide February 2022 Figure 1-8: Pipe mount, side view Emerson.com/Rosemount...
-
Page 13: Installation
February 2022 Quick Start Guide Installation General installation information 1. Install the transmitter with a sun shield or out of direct sunlight and areas with extreme temperatures. The transmitter cannot be operated in ambient (shaded) conditions greater than 140 °F (60 °C). 2. - Page 14 Preparing conduit openings There are six conduit openings in all configurations of the transmitter. Note Emerson fits four of the openings with plugs upon shipment. Figure 2-1: Conduit openings A. Front panel/keypad B. Power leads C.
- Page 15 February 2022 Quick Start Guide NOTICE Always use proper cable gland fittings and plugs for wire and cable installations. Conduit openings accept 0.5 in (13 mm) conduit fittings or PG13.5 cable glands. To keep the case watertight, block unused openings with Type 4X or IP66 conduit plugs.
-
Page 16: Wiring
DP communication board is available as an option for transmitter communication with a host. HART communications support Bell 202 digital communications over an analog 4-20 mA current output. Profibus DP is an open communications protocol which operates over a dedicated digital line to the host. Emerson.com/Rosemount... - Page 17 3.1.4 Alarm relays Emerson supplies four alarm relays with the switching power supply (85 to 264 Vac, 03 order code) and the 24 Vdc power supply (20 - 30 Vdc, 02 order code). You can use all relays for process measurement(s) or temperature.
- Page 18 Quick Start Guide February 2022 Figure 3-1: Power Wiring for 24 Vdc Power Supply (02 Order Code) PN 24365-00 A. To main board (ribbon cable) B. Rosemount 56 DC power supply board PN 24365-00 Emerson.com/Rosemount...
- Page 19 Figure 3-2: Power Wiring for 85-264 Vac Power Supply (03 Order Code) PN 24538-00 A. Earth ground B. Neutral C. Line power D. To main board (ribbon cable) E. Rosemount 56 AC power supply board PN 24358-00 Quick Start Guide...
- Page 20 A. To power supply PCB (ribbon cable) B. To digital I/O comm. board C. To sensor 1 signal board D. To sensor 2 signal board E. Hinge pin F. Transmitter main board, CPU PCB PN 24308-00 G. Hinge pin Emerson.com/Rosemount...
- Page 21 February 2022 Quick Start Guide For recommended wire entry points, see Figure 2-1. Figure 3-4: Contacting Conductivity Signal Board and Sensor Cable Leads Quick Start Guide...
-
Page 22: Navigating The Display
The display is back-lit, and you can customize the format to meet your requirements. You can use an alpha- numeric keypad, similar to a cell phone keypad, to enter data during programming and calibration or lengthy tags to describe process points, sensors, or instrumentation. Emerson.com/Rosemount... - Page 23 February 2022 Quick Start Guide Instrument keypad There are three function keys, four navigation keys, and an alpha-numeric keypad on the instrument keypad. Function keys Use the ENTER/MENU key to access menus for programming and calibrating the instrument as well as retrieving sorted data. Eight top-level menu items appear when you press ENTER/MENU.
- Page 24 Temperature or Blank. Secondary values Up to six secondary values are shown in display quadrants at the bottom half of the screen. You can program all six secondary value positions to any displayable parameter available. Emerson.com/Rosemount...
- Page 25 February 2022 Quick Start Guide Menu system The menu system is similar to a computer. Press the ENTER/MENU key at any time to open the top-level menu including Calibration, Hold, ® Programming, Display, Data, and HART functions. To find a menu item, use the directional navigation keys to highlight a menu item.
-
Page 26: Start Up Transmitter
Press ENTER/MENU and then press Down to highlight NEXT. The navigation rules for operating the keypad are displayed. 4. Choose the measurement for Sensor 1 and Sensor 2. Keypad operation guidlines appear to guide you on how to operate the user interface. Emerson.com/Rosemount... - Page 27 Using the Down and Right keys, select a menu and navigate to the screen of choice. 6. To return the transmitter to the factory default settings, choose Reset under the Menu selection screen. Please call the Emerson Customer Support Center at 1-800-999-9307 if you need further support. Quick Start Guide...
-
Page 28: Approvals
Approvals Pollution degree Installation category Altitude 6,561.7 ft (2,000 m) Humidity 80 percent to temperatures up to 88 °F (31 °C) decreasing linearly to 50 percent relative humidity at 104 °F (40 °C). Maximum 80 percent relative humidity, non-condensing. Emerson.com/Rosemount... -
Page 29: Product Certifications
A copy of the EU Declaration of Conformity can be found at the end of this guide. The most recent revision of the EU Declaration of Conformity can be found at Emerson.com/Rosemount. Ordinary location certification As standard, the transmitter has been examined and tested to determine... - Page 30 (reaffirmed 2011), ANSI/ISA 12.12.01: 2007, UL Standard 50E, 3rd edition, UL 61010, 3rd edition Markings Class I, Division 2, Groups A,B, C, and D; Class II, Division 2, Groups E, F, and G; Class III Maximum ambient 60 °C; T4; Type 4X enclosure; IP66 Emerson.com/Rosemount...
-
Page 31: Eu Declaration Of Conformity
February 2022 Quick Start Guide EU Declaration of Conformity Quick Start Guide... - Page 32 Quick Start Guide February 2022 Emerson.com/Rosemount...
- Page 33 February 2022 Quick Start Guide China RoHS table Quick Start Guide...
- Page 34 Quick Start Guide February 2022 Emerson.com/Rosemount...
- Page 35 February 2022 Quick Start Guide Quick Start Guide...
- Page 36 For more information: Emerson.com © 2022 Emerson. All rights reserved. Emerson Terms and Conditions of Sale are available upon request. The Emerson logo is a trademark and service mark of Emerson Electric Co. Rosemount is a mark of one of the Emerson family of companies.
