Emerson Rosemount 5600 Series Product Data Sheet

Emerson Rosemount 5600 Series Product Data Sheet

Radar level transmitter
Hide thumbs Also See for Rosemount 5600 Series:

Advertisement

Quick Links

Download this manual
Product Data Sheet
00813-0100-4024, Rev CA
August 2003

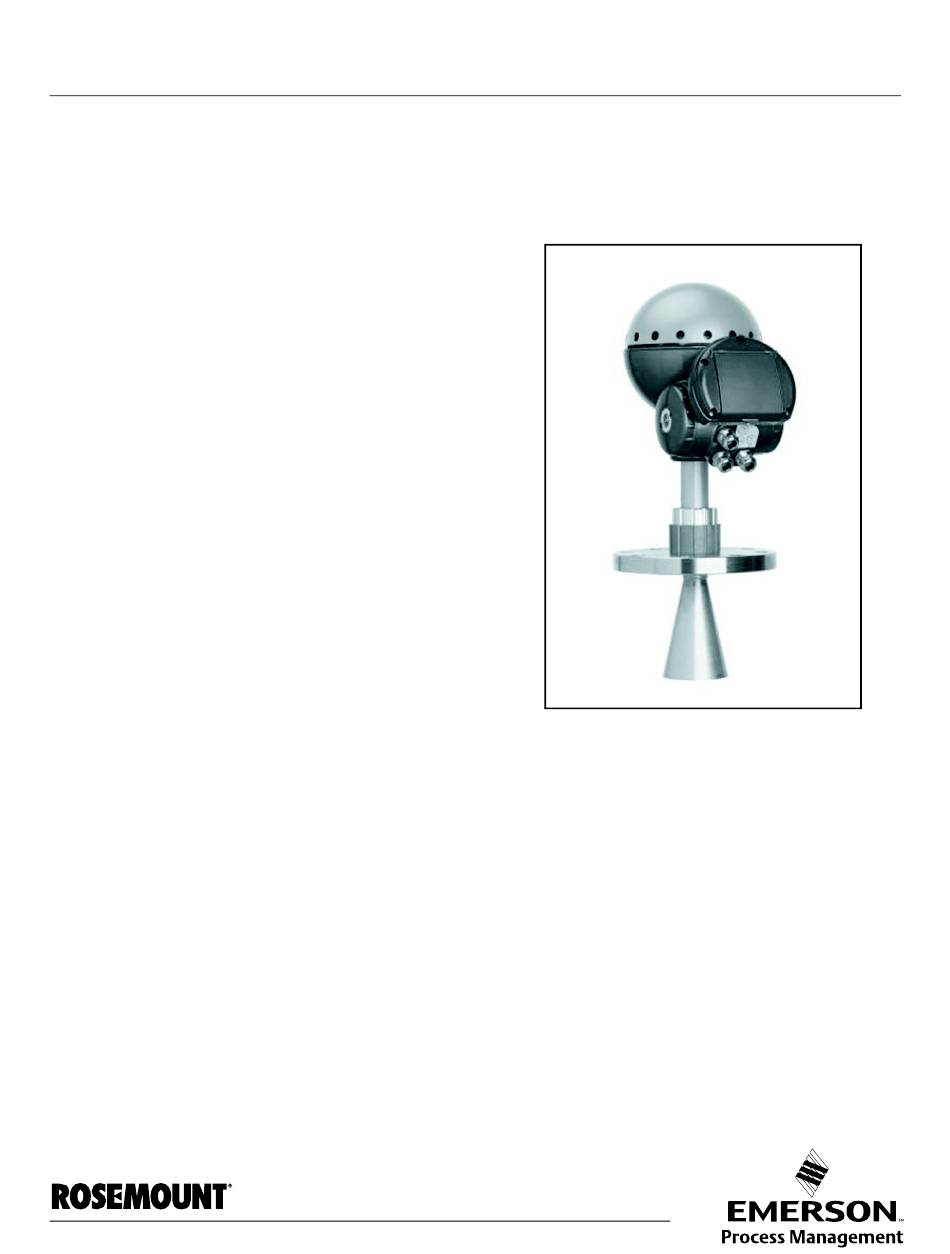

Rosemount 5600 Series
Radar Level Transmitter
THE 5600 SERIES FEATURES:
• Handles a wide range of process conditions
due to high sensitivity and unique signal
processing features
• High repeatability ensuring an extremely
reliable and accurate level transmitter even in
the toughest conditions
• Ultra-wide power supply, 24-240 V AC/DC,
0-60 Hz
™
OUNDATION
• F
fieldbus or analog 4-20 mA
superimposed with HART
• High flexibility with interchangeable
transmitter heads and antennas
• No moving parts and no contact with the liquid
• Intelligent software support for easy
configuration and setup
• Wide selection of antennas and materials
Key Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 2
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 7
Product Certificates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 10
Dimensional Drawings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 11
Ordering Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 15
Application and Configuration Data Sheet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 22
www.rosemount.com
®
Content
Rosemount 5600 Series

Advertisement

loading
Need help?

Need help?

Do you have a question about the Rosemount 5600 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Emerson Rosemount 5600 Series

Summary of Contents for Emerson Rosemount 5600 Series

  • Page 1: Table Of Contents

    Product Data Sheet 00813-0100-4024, Rev CA Rosemount 5600 Series August 2003 Rosemount 5600 Series Radar Level Transmitter THE 5600 SERIES FEATURES: • Handles a wide range of process conditions due to high sensitivity and unique signal processing features • High repeatability ensuring an extremely...

  • Page 2: Key Features

    Legendary Rosemount Performance Customized For Your Level Process Applications Introduction Applications The Rosemount 5600 Series is an intelligent The Rosemount 5600 uses state-of-the art non-contacting radar level transmitter. Its high microwave technology to get highest reliability and performance microprocessor allows for advanced precision.
  • Page 3 Product Data Sheet 00813-0100-4024, Rev CA Rosemount 5600 Series August 2003 Interchangeable Head Plate Design A 5600 Radar Level Transmitter consists of a FIGURE 3. Plate Design Transmitter Head (TH) and a tank connection including antenna. The TH and the electronics inside 1.38 (34)
  • Page 4 Product Data Sheet 00813-0100-4024, Rev CA Rosemount 5600 Series August 2003 Mechanical Mounting FIGURE 5. Preferred Mounting The 5600 radar transmitter is easily carried to the Dimensions are inches tank top and mounted on a suitable nozzle or pipe. 0.4 (10) (millimeters).
  • Page 5 Product Data Sheet 00813-0100-4024, Rev CA Rosemount 5600 Series August 2003 For liquids with ε Measuring Range that are smaller than 1.9 such as liquefied gases, an 8 inch or bigger diameter antenna The diagrams below show how the measuring range...
  • Page 6 Product Data Sheet 00813-0100-4024, Rev CA Rosemount 5600 Series August 2003 System Integration Basic configuration and setup can be done on a HART communicator, via the 2210 Display Unit, Level values are transmitted from the transmitter as AMS, or DeltaV (for F fieldbus).

  • Page 7: Specifications

    Product Data Sheet 00813-0100-4024, Rev CA Rosemount 5600 Series August 2003 Specifications GENERAL DISPLAY/CONFIGURATION Product Designation Display (factory mounted on transmitter) 5600 Series Radar Level Transmitter Protection class IP67 With weather/dirt protection cover; graphical LCD display 128 by Operating principle 64 pixels with 4 control soft-keys and 7 text lines with 16 characters/line for display and configuration.
  • Page 8 Product Data Sheet 00813-0100-4024, Rev CA Rosemount 5600 Series August 2003 ELECTRIC Fieldbus Output Characteristics Fieldbus Voltage limits: 9 to 32 V Power supply Current Draw: 12.5 mA Ultra wide power supply 24-240 V AC or DC 0-60 Hz For I.S. Applications: <...
  • Page 9 Product Data Sheet 00813-0100-4024, Rev CA Rosemount 5600 Series August 2003 MECHANICAL Height above flange 15 in (400 mm) Housing/Enclosure Antenna Dimensions Permanent moulded cast aluminium, chromed and powder painted Cone: See Figure 13 on page 11 Flanges Rod: See Figure 12 on page 11...

  • Page 10: Product Certificates

    Product Data Sheet 00813-0100-4024, Rev CA Rosemount 5600 Series August 2003 Product Certificates Approved Manufacturing Locations Factory Mutual (FM) approval. Certificate: J.I. 4D5A9.AX Saab - Rosemount – Gothenburg, Sweden With Intrinsically safe outputs: (All versions except those listed below) European Union Directive Information...

  • Page 11: Dimensional Drawings

    Product Data Sheet 00813-0100-4024, Rev CA Rosemount 5600 Series August 2003 Dimensional Drawings FIGURE 12. Rod Dimensions 363 psig at 212°F 7.87 (200) -15 psig at 392°F 25 bars at 100°C -1.0 bar at 200°C 232 psig at 392°F -15 psig at -40°F 16 bars at 200°C...
  • Page 12 Product Data Sheet 00813-0100-4024, Rev CA Rosemount 5600 Series August 2003 FIGURE 14. Process Seal Dimensions 7.87 (200) 0 psig at 302°F 0 bar at 150°C -15 psig at -40°F -1.0 bar at -40°C 0 psig at 302°F 0 bar at 150°C 6”...
  • Page 13 Product Data Sheet 00813-0100-4024, Rev CA Rosemount 5600 Series August 2003 FIGURE 15. Extended Cone Dimensions for Stainless Steel Flange 7.87 (200) 145 psig at 212°F 10 bar at 100°C 73 psig at 392°F NOTES Other extended 5 bar at 200°C cone lengths -15 psig at 392°F...
  • Page 14 Product Data Sheet 00813-0100-4024, Rev CA Rosemount 5600 Series August 2003 FIGURE 17. Parabolic Dimensions for Stainless Steel Flange 145 psig at 392°F 10 bar at 200°C 7.87 (200) 2.9 psig at 392°F 0.2 bar @ 200°C -2.9 psig at 392°F -0.2 bar at 200°C...

  • Page 15: Ordering Information

    Product Data Sheet 00813-0100-4024, Rev CA Rosemount 5600 Series August 2003 Ordering Information TABLE 4. Rosemount 5600 Radar Transmitter Selection Model Product Description 5601 Radar Level Transmitter for Process Applications Code Frequency Band US Market Only (10 GHz) Switzerland Market Only (10 GHz)
  • Page 16 Product Data Sheet 00813-0100-4024, Rev CA Rosemount 5600 Series August 2003 TABLE 5. Rod Antenna Code Antenna Type Antenna Size Antenna Material Note 1.5 in. threaded version SST 316L and PTFE Inactive Length 4 inch (100 mm) 2 in. (DN50) nozzles...
  • Page 17 Product Data Sheet 00813-0100-4024, Rev CA Rosemount 5600 Series August 2003 TABLE 6. Cone Antenna Code Antenna Type Antenna Size Antenna Material Note Cone 3 in. (DN80) nozzles SST 316L Pipe Installation Only 4 in. (DN100) nozzles SST 316L Free propagation or 4” pipe 6 in.
  • Page 18 Product Data Sheet 00813-0100-4024, Rev CA Rosemount 5600 Series August 2003 TABLE 7. Process Seal Antenna Code Antenna Type Antenna Size Antenna Material Note Process Seal 4 in. (DN100) nozzles PTFE 6 in. (DN150) nozzles PTFE Code Tank Sealing PTFE...
  • Page 19 Product Data Sheet 00813-0100-4024, Rev CA Rosemount 5600 Series August 2003 TABLE 9. Extended Cone Antenna Code Antenna Type Antenna Size Antenna Material Note Extended 3 in. (DN80) nozzles SST 316L Standard length 20 inch (500 mm) 4 in. (DN100) nozzles...
  • Page 20 Product Data Sheet 00813-0100-4024, Rev CA Rosemount 5600 Series August 2003 TABLE 11. Transmitter Options (multiple selections allowed) Code Options Calibration Data Certification Calibration Data Certificate Software Configuration Custom Software Configuration (CDS required with order) Alarm Limits NAMUR Alarm Level, High Alarm...
  • Page 21 Product Data Sheet 00813-0100-4024, Rev CA Rosemount 5600 Series August 2003 Accessories TABLE 13. Accessories Part Numbers Part Number Description Note Modems 03300-7004-0001 HART Modem and cables Viator by MacTec 05600-5004-0001 K2 RS485 modem and cables For Sensor Bus connection...

  • Page 22: Application And Configuration Data Sheet

    Product Data Sheet 00813-0100-4024, Rev CA Rosemount 5600 Series August 2003 Application and Configuration Data Sheet Indicates Default Factory Configuration Customer Information, Model Number, and Tagging Information Customer/ End User: ___________________________________ Salesperson: _______________________________ Customer Contact: ___________________________________ P.O. Number: _______________________________ Phone Number:...
  • Page 23 Product Data Sheet 00813-0100-4024, Rev CA Rosemount 5600 Series August 2003 Indicates Default Factory Configuration Tank Geometry Transmitter’s Tank Shape Select a Tank Type corresponding to the actual tank on which the device is Reference mounted. If the device is mounted on a Tank Type that is not available as an Point individual selection choose Unknown.
  • Page 24 Product Data Sheet 00813-0100-4024, Rev CA Rosemount 5600 Series August 2003 Indicates Default Factory Configuration OUNDATION Analog Output (4-20mA analog output) (Not applicable for F fieldbus devices) Primary Variables (Analog Output 1): PV Source (Var. Assignment): Level Distance Level Rate...
  • Page 25 Product Data Sheet 00813-0100-4024, Rev CA Rosemount 5600 Series August 2003 Indicates Default Factory Configuration Volume Calculation (If applicable) Volume is calculated based on ideal shapes or by an entered Strapping table (up to 100 points). The Configuration Data Sheet (CDS) allows for up to 20 strapping points to be pre-configured at factory using the CI (CDS) option.
  • Page 26 Product Data Sheet 00813-0100-4024, Rev CA Rosemount 5600 Series August 2003...
  • Page 27 Product Data Sheet 00813-0100-4024, Rev CA Rosemount 5600 Series August 2003...
  • Page 28 August 2003 Rosemount and the Rosemount logotype are registered trademarks of Rosemount Inc. PlantWeb is a registered trademark of one of the Emerson Process Management group of companies. HART is a registered trademark of the HART Communication Foundation Teflon, VITON, and Kalrez are registered trademarks of E.I. du Pont de Nemours $ Co.
