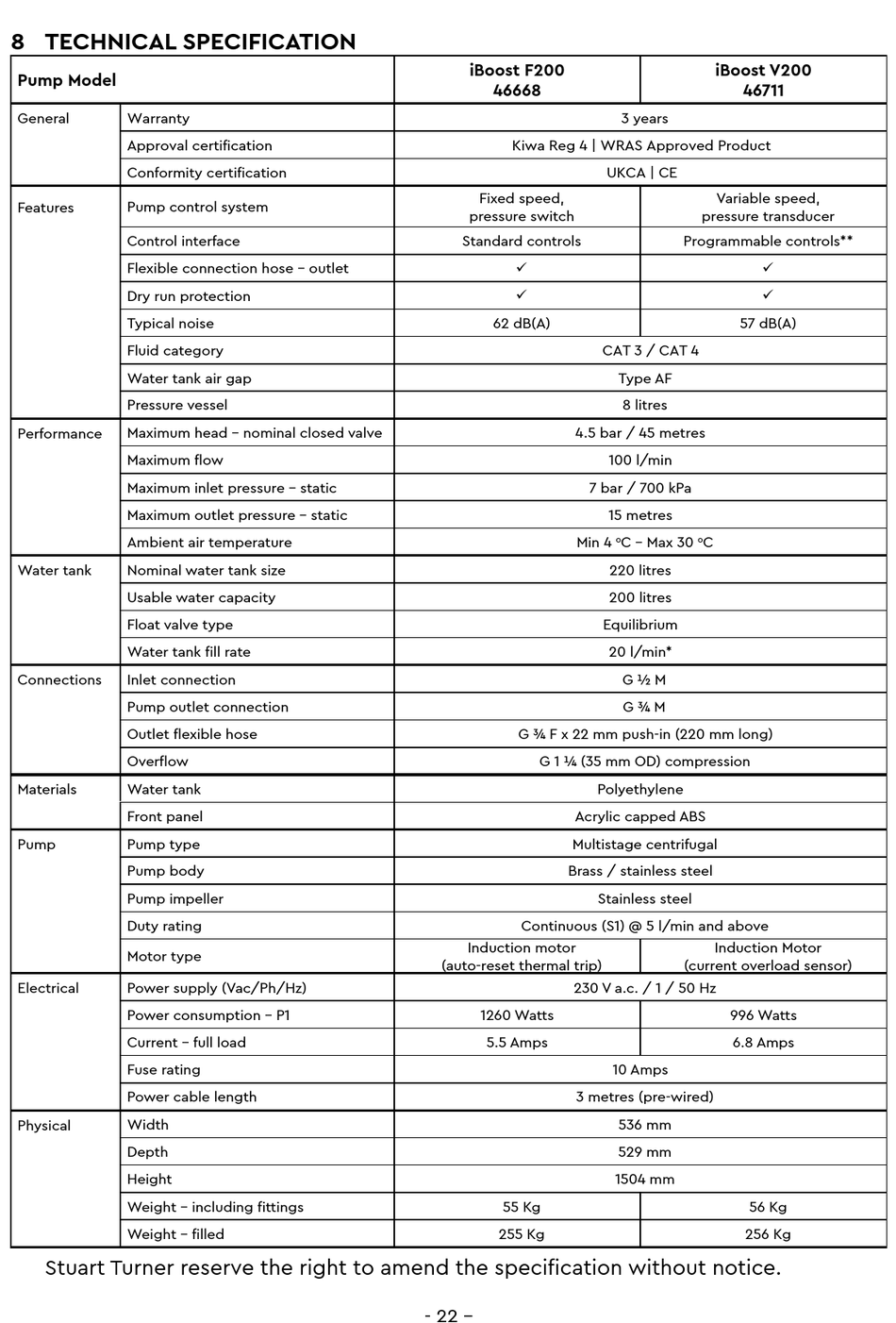

8 TECHNICAL SPECIFICATION

Pump Model
Warranty
General
Approval certification
Conformity certification
Features Pump control system
Control interface
Flexible connection hose – outlet
Dry run protection
Typical noise
Fluid category
Water tank air gap
Pressure vessel
Performance Maximum head – nominal closed valve
Maximum flow
Maximum inlet pressure – static
Maximum outlet pressure – static
Ambient air temperature
Nominal water tank size
Water tank
Usable water capacity
Float valve type
Water tank fill rate
Connections Inlet connection
Pump outlet connection
Outlet flexible hose
Overflow
Materials Water tank
Front panel
Pump Pump type
Pump body
Pump impeller
Duty rating
Motor type
Electrical Power supply (Vac/Ph/Hz)
Power consumption – P1
Current – full load
Fuse rating
Power cable length
Physical Width
Depth
Height
Weight – including fittings
Weight – filled
Stuart Turner reserve the right to amend the specification without notice.
iBoost F200
46668
Kiwa Reg 4 | WRAS Approved Product
Fixed speed,
pressure switch
Standard controls


62 dB(A)
4.5 bar / 45 metres
7 bar / 700 kPa
Min 4
G ¾ F x 22 mm push-in (220 mm long)
G 1 ¼ (35 mm OD) compression
Acrylic capped ABS
Multistage centrifugal
Brass / stainless steel
Continuous (S1) @ 5 l/min and above
Induction motor
(auto-reset thermal trip)
230 V a.c. / 1 / 50 Hz
1260 Watts
5.5 Amps
3 metres (pre-wired)
55 Kg
255 Kg
- 22 –
iBoost V200
46711
3 years
UKCA | CE
Variable speed,
pressure transducer
Programmable controls**


57 dB(A)
CAT 3 / CAT 4
Type AF
8 litres
100 l/min
15 metres
o o
C – Max 30 C
220 litres
200 litres
Equilibrium
20 l/min*
G ½ M
G ¾ M
Polyethylene
Stainless steel
Induction Motor
(current overload sensor)
996 Watts
6.8 Amps
10 Amps
536 mm
529 mm
1504 mm
56 Kg
256 Kg
