STUART
Installation, Operation & Maintenance
Instructions
Please leave this instruction booklet with the home owner as it contains
important guarantee, maintenance and safety information
Read this manual carefully before commencing installation.
This manual covers the following products:

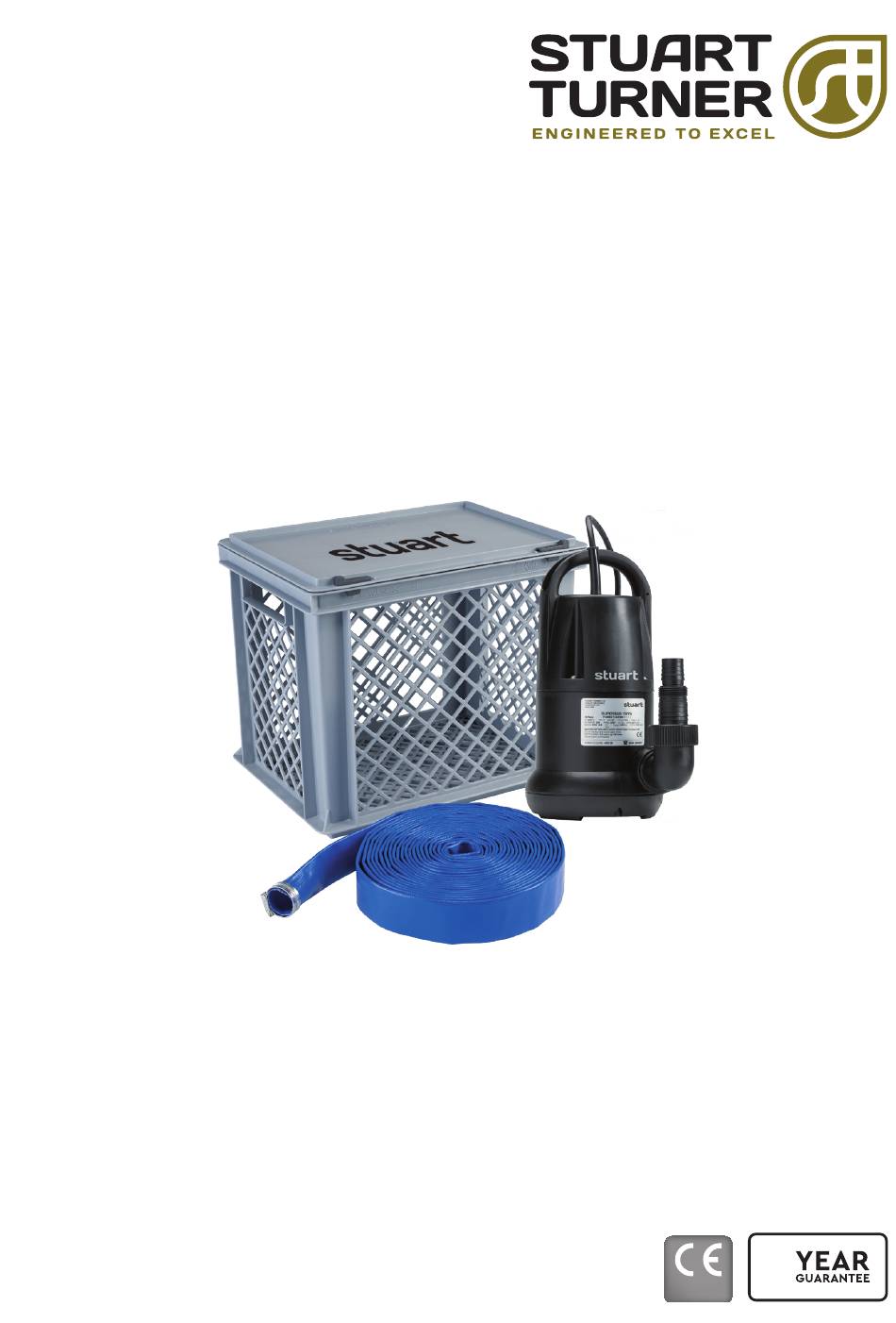

Flood Kit
Pt. No. 46638
50 Hz
1
CE compliant product
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Stuart Turner Stuart
Summary of Contents for Stuart Turner Stuart
- Page 1 STUART Installation, Operation & Maintenance Instructions Please leave this instruction booklet with the home owner as it contains important guarantee, maintenance and safety information Read this manual carefully before commencing installation. This manual covers the following products: Flood Kit Pt. No. 46638...
-
Page 2: Table Of Contents
PRODUCT DESCRIPTION Electric motor driven submersible pump with float switch control fitted with hose and stored in a vented case for immediate use. APPLICATION The flood kit is designed for drainage and transfer of flood water in outdoor or indoor applications. - Page 3 (eg. petroleum oil, petrol, thinners) grease, oils or foodstuffs. This pump set must not be used for any other application without the written consent of Stuart Turner Limited and in particular, must not be connected directly to the mains water supply.
- Page 4 If the supply cord is damaged, it must be replaced by Stuart Turner Ltd or an official Service Agent to avoid hazard. Please read installation details carefully as they are intended to ensure this product provides long, trouble free service.
-
Page 5: Checklist
CHECKLIST IMPORTANT: With the pump removed from its packaging check for any damage prior to installation. If any damage is found contact Stuart Turner Ltd within 24 hours of receipt. Fig. 1 Item Description Qty Item Description Pump Circlip (in crate) -
Page 6: Important Facts - Read Before Commencing Installation
1 IMPORTANT FACTS: READ BEFORE COMMENCING PUMP INSTALLATION A Water temperature The water entering the pump must be controlled as follows: 1.11 The maximum allowable water temperature is 35 1.12 The minimum allowable water temperature is 4 B General 1.13 This unit comes completely fitted and ready to use and only requires the hose/supply cable setting out (see Section 2.15). -
Page 7: Location
46638 Duty Hd: 0.83 bar @ 4 l/min Duty Hd: 0.10 bar @ 250 l/min Head Max: 8.5 metre : 0.003 m 46638? Stuart-Turner Ltd RG9 2AD - ENGLAND www.stuart-turner.co.uk LOCK DIRECTION UNLOCK DIRECTION Fig. 2 2. Uncoil and feed both the... - Page 8 2.16 Float Switch: The pump incorporates an integral automatic float switch which has two modes of operation, auto and manual. The float switch consists of a float which moves up and down on a vertical axis within a housing. 2.17 Float Switch Operation: The float switch operation mode is changed by moving the selection lever (1) either up for the Manual position or down for the Auto position.
-
Page 9: Electrical Installation
3.14 Isolate all appliances in the water from the electrical supply before putting your hands in the water. 3.15 If the supply cord is damaged, it must be replaced by Stuart Turner Ltd or an official Service Agent to avoid hazard. -
Page 10: Commissioning
If it is not, repeat step 4.12. 4.14 For Further Technical Support: Phone the Stuart Turner TechAssist team on +44 (0) 800 31 969 80. Our staff are trained to help and advise you over the phone. -
Page 11: Maintenance
5 MAINTENANCE 5.11 The water in and around the pump must not be allowed to freeze. This will result in pump damage. 5.12 Provision should be made for easy access to the pump to allow for regular maintenance. 5.13 The integral inlet filter grille should be checked periodically and cleaned if required. - Page 12 5.16 Float Switch Cleaning: The float switch assembly can be cleaned as follows:- 1) Move the selector (1) to the ‘Automatic’ (down) position Fig. 8. 2) Remove the two screws (2) located in recesses at the top of the float housing (3) Fig.
-
Page 13: Technical Specification
340 mm Weight (including fittings) 9.2 Kg Stuart Turner reserve the right to amend the specification in line with its policy of continuous development of its products. 6.11 Noise: The equivalent continuous A-weighted sound pressure level at a distance of 1 metre from the pumpset does not exceed 70 dB(A). -
Page 14: Trouble Shooting
7 TROUBLE SHOOTING GUIDE Symptoms Probable Cause Recommended Action Pump stops running. Thermal overload Disconnect the power supply to the pump. protection has tripped. Check to ensure the pump is connected to the correct voltage supply. Check to ensure the impeller is not jammed and can rotate freely. -
Page 15: Guarantee
We are confident this pump will provide many years of trouble free service as all our products are manufactured to the very highest standard. All Stuart Pumps are guaranteed to be free from defects in materials or workmanship for 1 year from the date of purchase. - Page 16 BS EN 61000-4-2, BS EN 61000-4-3, BS EN 61000-4-4, BS EN 61000-4-5, BS EN 61000-4-6, BS EN 61000-4-11 RoHs Directive - 2011/65/EU IT IS HEREBY CERTIFIED THAT THE STUART ELECTRIC MOTOR DRIVEN PUMP COMPLIES WITH THE ESSENTIAL REQUIREMENTS OF THE ABOVE E.E.C. DIRECTIVES. RESPONSIBLE PERSON...
