Installation, Operation & Maintenance
Instructions
Please leave this instruction booklet with the home owner as it contains
important guarantee, maintenance and safety information
Read this manual carefully before commencing installation.
This manual covers the following products:

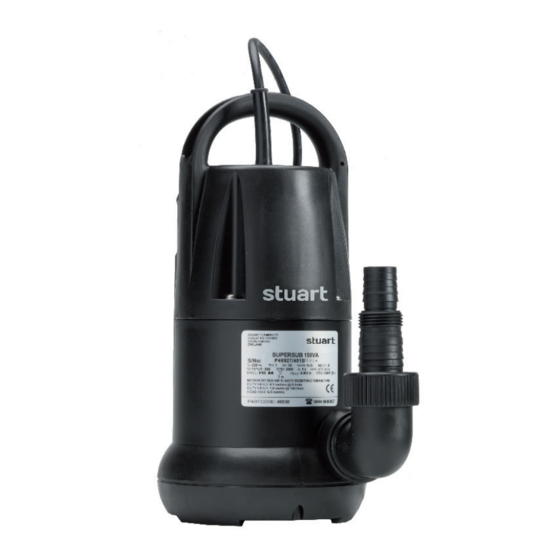

Supersub 150VA
Pt. No. 46538
Supersub 250VA
Pt. No. 46539
CE compliant product
Advertisement
Table of Contents
Related Manuals for Stuart Turner Supersub 150VA
Summary of Contents for Stuart Turner Supersub 150VA
- Page 1 Please leave this instruction booklet with the home owner as it contains important guarantee, maintenance and safety information Read this manual carefully before commencing installation. This manual covers the following products: Supersub 150VA Supersub 250VA Pt. No. 46538 Pt. No. 46539...
- Page 2 PRODUCT DESCRIPTION Electric motor driven submersible pump with float switch control. APPLICATION The submersible pump range is designed for re-circulation, drainage and transfer of fresh water in outdoor or indoor applications. The pumps incorporate an integral float switch, which provides automatic pump control in the form of a low level cut out to prevent the risk of dry running.
-
Page 3: Table Of Contents
CONTENTS Page Checklist ............4 Important Facts - read before commencing installation . -
Page 4: Checklist
CHECKLIST IMPORTANT: With the pump removed from its packaging check for any damage prior to installation. If any damage is found contact Stuart Turner Ltd within 24 hours of receipt. G 1½ F - 25/32 mm (bore hose) or G 1 M G 1½... -
Page 5: Important Facts - Read Before Commencing Installation
1 IMPORTANT FACTS: READ BEFORE COMMENCING PUMP INSTALLATION A. Water temperature The water entering the pump must be controlled as follows: 1.11 The maximum allowable water temperature is 35 1.12 The minimum allowable water temperature is 4 B. Pipework - General 1.13 All models are supplied with a 90 elbow and stepped hose connector (see pump connection section for details) which can be screwed directly into the pump... -
Page 6: Location
2 LOCATION - GENERAL 2.11 Access: For emergencies and maintenance the pump must be easily accessible. 2.12 Do not run against a closed valve for periods longer than 5 minutes. The water in and around the pump must not be allowed to freeze. This will result in pump damage. - Page 7 2.19 Float Switch Operation: The float switch operation mode is changed by moving the selection lever (1) either up for the Manual position or down for the Auto position. 2.20 Automatic Operation (Switch Position ‘Down’): The integrated float starts and stops the pump automatically when the selection indicator is set to automatic.
-
Page 8: Pump Connections
3 CONNECTIONS 3.11 Supersub pumps are supplied with an elbow and stepped hose connector which can be screwed to the pump outlet port. Pump Pump Type Elbow Hose Connector Outlet Thread Hose Bore (mm) Supersub G1½ F G1½ M x G1½ M x 90 G1½... -
Page 9: Electrical Installation
4 ELECTRICAL INSTALLATION 4.11 Regulations: The electrical installation must be carried out in accordance with the current national electrical regulations and installed by a qualified person. 4.12 Safety: In the interests of electrical safety a 30 mA residual current device (R.C.D. not supplied) should be installed in the supply circuit. This may be part of a consumer unit or a separate unit. -
Page 10: Commissioning
5.13 Turn on the electrical supply and water movement should be immediately evident from pump outlet. If it is not, repeat step 5.12. 5.14 For Further Technical Support: Phone the Stuart Turner PumpAssist team on +44 (0) 844 98 000 97. Our staff are trained to help and advise you over the phone. -
Page 11: Maintenance
6 MAINTENANCE 6.11 The water in and around the pump must not be allowed to freeze. This will result in pump damage. 6.12 Provision should be made for easy access to the pump to allow for regular maintenance. 6.13 The integral inlet filter grille should be checked periodically and cleaned if required. - Page 12 6.16 Float Switch Cleaning: The float switch assembly can be cleaned as follows:- 1) Move the selector (1) to the ‘Automatic’ (down) position Fig. 8. 2) Remove the two screws (2) located in recesses at the top of the float housing (3) Fig.
-
Page 13: Technical Specifi Cation
Lay flat hose 32 mm x 10 m Pt No 19966 Stuart Turner reserve the right to amend the specification in line with its policy of continuous development of its products. 7.11 Noise: The equivalent continuous A-weighted sound pressure level at a distance of 1 metre from the pumpset does not exceed 70 dB(A). -
Page 14: Trouble Shooting
8 TROUBLE SHOOTING GUIDE Symptoms Probable Cause Recommended Action Pump stops running. Thermal overload Disconnect the power supply to the pump. protection has tripped. Check to ensure the pump is connected to the correct voltage supply. Check to ensure the impeller is not jammed and can rotate freely. -
Page 15: Guarantee
Installers – Register with Stuart Turner and move up to Approved Installer status We receive thousands of enquiries every month from people seeking a Stuart Turner installer and by registering your details with us, we can offer consumers the opportunity to quickly locate an installer in their area. - Page 16 Signed ......... Stuart Turner are an approved company to BS EN ISO 9001:2008...
