MAINSBOOST
Flomate MBF 12 Pump
Installation & Maintenance Instructions
Please leave this instruction booklet with the owner as it contains important
guarantee, maintenance and safety information
Read this manual carefully before commencing installation.
This manual covers the following products:
MBF 12
Pt. No. 46574
PATENT
APPROVED
GB 2494485 A
CE compliant product
3
Advertisement
Table of Contents
Related Manuals for Stuart Turner Mainsboost Flomate MBF 12
Summary of Contents for Stuart Turner Mainsboost Flomate MBF 12

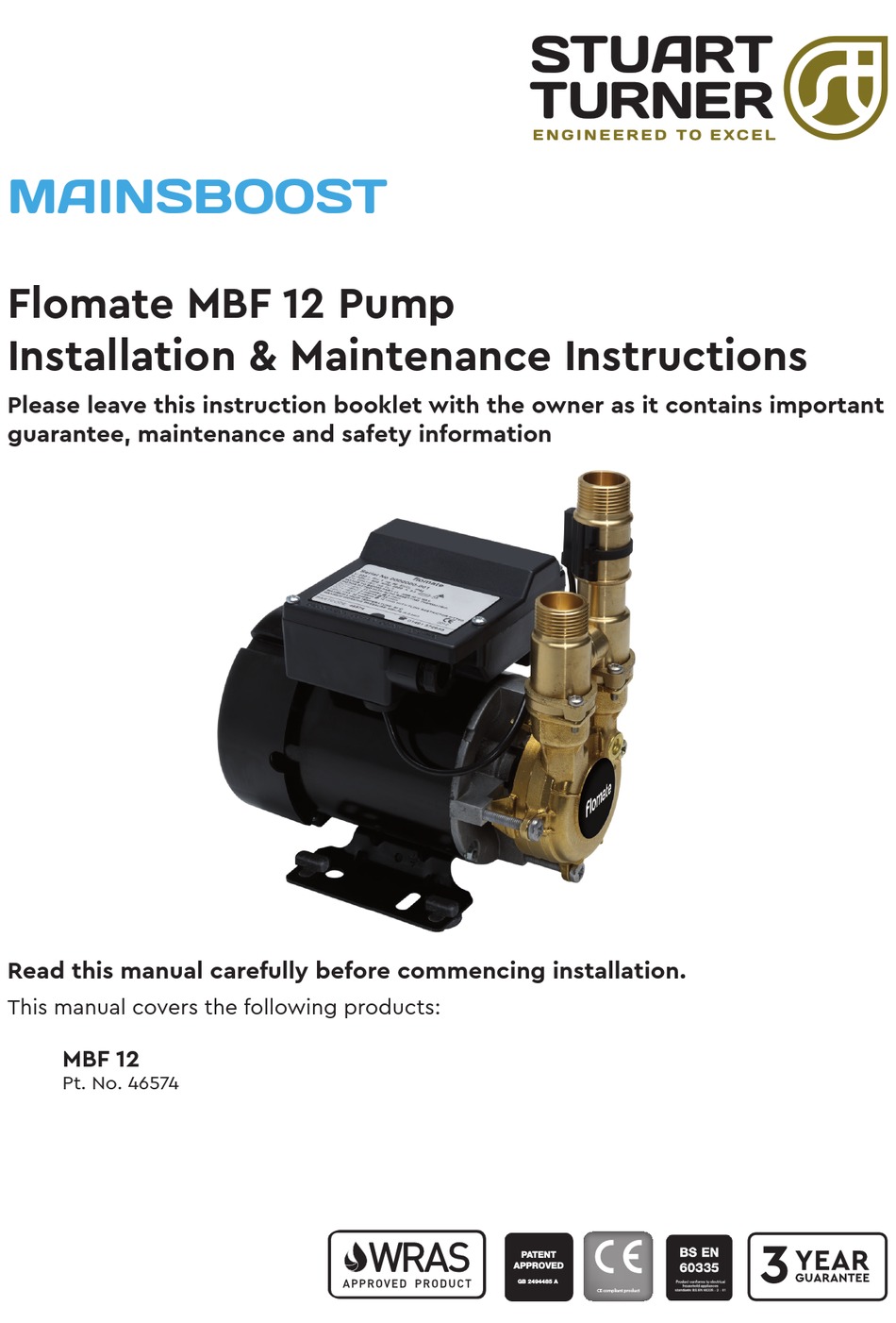

- Page 1 MAINSBOOST Flomate MBF 12 Pump Installation & Maintenance Instructions Please leave this instruction booklet with the owner as it contains important guarantee, maintenance and safety information Read this manual carefully before commencing installation. This manual covers the following products: MBF 12 Pt.
-
Page 2: Table Of Contents

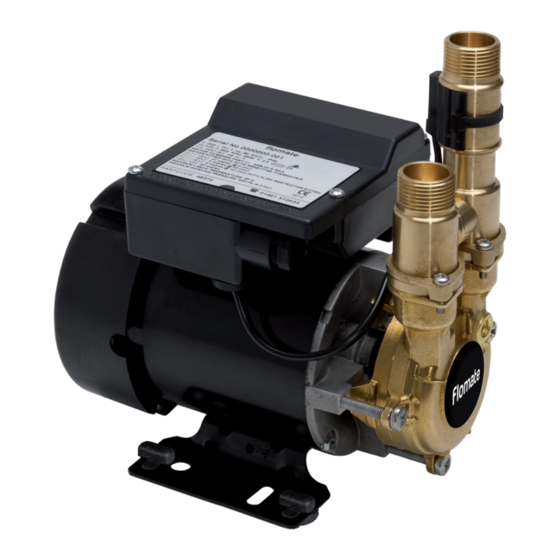

PRODUCT DESCRIPTION Electric motor driven peripheral pump with bypass, complete with an automatic control system consisting of flow switch and electronic control. APPLICATION The Mainsboost Flomate is a mains booster pump with an automatic control system for domestic use, designed to assist the pressure from the mains supply, where the mains pressure is insufficient. - Page 3 WARNINGS: This pump must not be used for any other application without the written consent of Stuart Turner Limited. The pump is not suitable for heavy commercial/ industrial applications. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the...
- Page 4 If the supply cord is to be changed or is damaged, it must be replaced with a special cord assembly available from Stuart Turner or one of their approved repairers. Notes This product must be installed in accordance with the current Water Supply (Water Fittings) Regulations.
-
Page 5: Checklist
IMPORTANT: With the pump removed from its packaging check for any damage prior to installation. If any damage is found contact Stuart Turner Ltd within 24 hours of receipt. G ¾ compression fitting with isolating valve and seal (not supplied) (or alternative) Fig. -
Page 6: Important Facts - Read Before Commencing Installation
1 IMPORTANT FACTS: READ BEFORE COMMENCING PUMP INSTALLATION A Water temperature The water entering the pump must be controlled as follows: 1.11 The maximum allowable water temperature is 23 1.12 The minimum allowable water temperature is 4 B Pipework - General 1.13 Secure pipework: Ensure pipework to and from pump is independently supported &... -
Page 7: Location
2 LOCATION - GENERAL 2.11 Access: For emergencies and maintenance the pump must be easily accessible. 2.12 Protection: The pump must be located in a dry position, frost free and protected from freezing. Ensure the pump is in a dry position, away from heat sources, such as radiators and heaters. - Page 8 2.19 Pipework Connections: Isolating valves: Always install isolating valves (not supplied) to both suction and delivery pipe to aid future maintenance. Bypass (see note ‘c’ below) Inlet (see note ‘a’ below) Double check valve (see note ‘b’ below) (Not supplied) Mains water stop cock Typical installation...
-
Page 9: Electrical Installation
3 ELECTRICAL INSTALLATION / EARTHING 3.11 Regulations: The electrical installation must be carried out in accordance with the current national electrical regulations and installed by a qualified person. 3.12 Safety: In the interests of electrical safety a 30 mA residual current device (R.C.D. - Page 10 3.20 Wiring Diagram: The supply cord and internal wiring within the terminal box are routed and secured to ensure compliance with the electrical standard EN 60335-1. Do not disturb the internal wiring or factory routing and securing of all internal wiring. MAIN WINDING BLUE THERMOTRIP...
-
Page 11: Priming
Carefully check pump and pipework for leaks whilst pump running and stationary before leaving the installation unattended. 4.13 For Further Technical Support: Phone the Stuart Turner TechAssist team on +44 (0) 800 31 969 80. Our staff are trained to help and advise you over the phone. -
Page 12: Technical Specification
231 mm Weight (including fittings) 5.2 Kg Stuart Turner reserve the right to amend the specification in line with its policy of continuous development of its products. *Note: The maximum pressure that can be applied to the pump under any installation conditions. -
Page 13: Trouble Shooting
7 TROUBLE SHOOTING GUIDE Symptoms Probable Cause Recommended Action Pump will not start. No water. Check required flow of liquid is available to the fittings of approx. 0.6 l/min. Water supply. Check water supply from mains and all stopcocks are open. Electrical supply. - Page 14 If this does not happen, this indicates a possible fault with the reed switch or the P.C.B which is located within the terminal box. These should be checked electrically. Consult Stuart Turner for further instructions. Body Reed Clamp...
-
Page 15: Guarantee
Proof of purchase should accompany the returned unit to avoid delay in investigation and dealing with your claim. You should obtain appropriate insurance cover for any loss or damage which is not covered by Stuart Turner Ltd in this provision. Please record here for your records. TYPE NO. - Page 16 Signed ..........Stuart Turner are an approved company to BS EN ISO 9001:2015...
