Stuart Turner MAINSBOOST iBOOST F200 Installation, Operation & Maintenance Instructions Manual page 18

No Name or Function
Current system pressure
1
display
2 Power indicator
3 Pump indicator
Network connection
4
indicator
5 Dry run protection
6 Set pressure display
7 Decrease
8 Increase
9 STOP
10 RUN

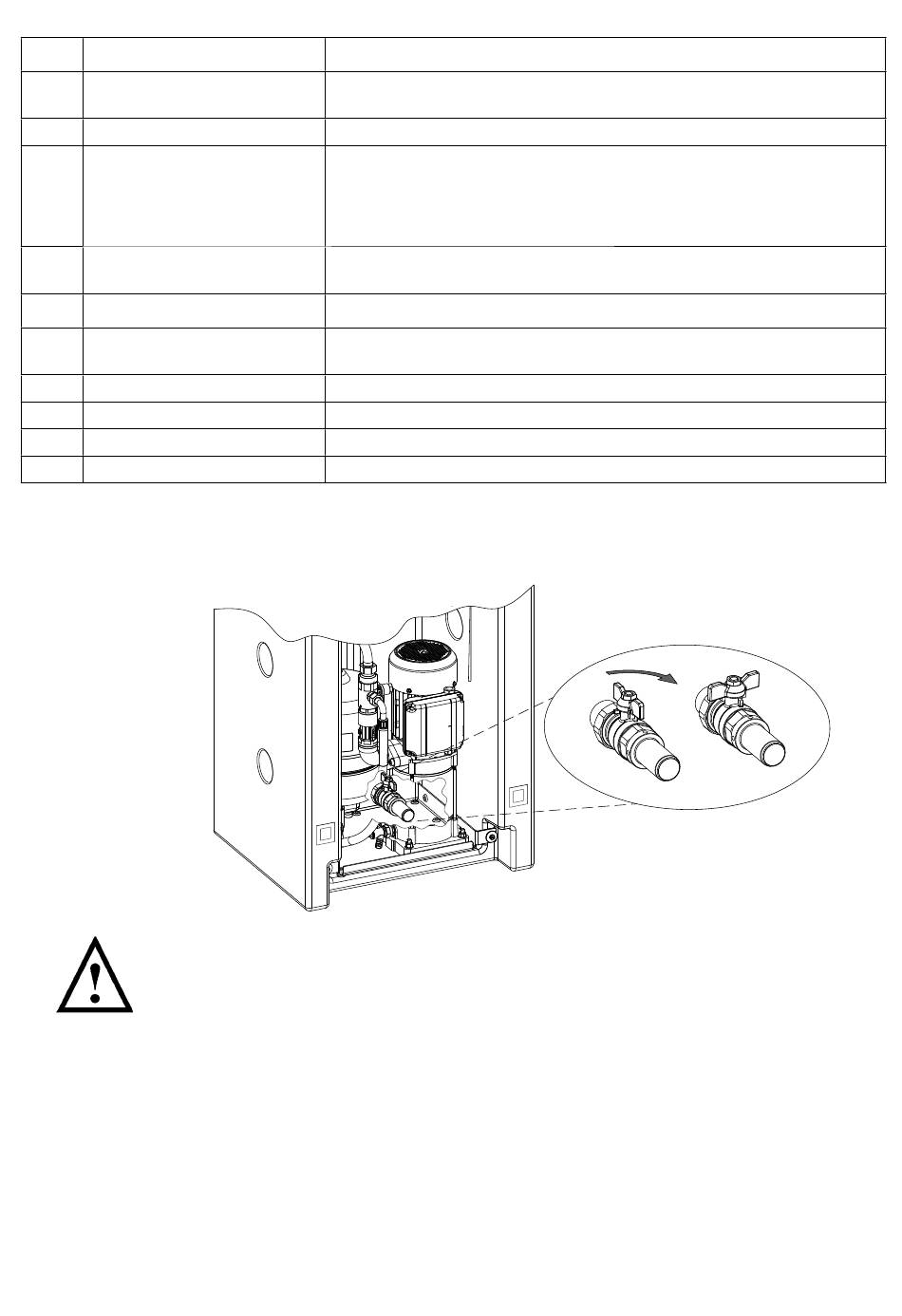

6.13 The supply of water from the storage tank can be isolated from the pump by
using the isolation valve behind the pump.
Fig. 16
6.14 System Flushing
The pipework system should be flushed out prior to the iBoost
being connected to ensure any contaminants/chemical
residues and foreign bodies are removed from elsewhere in the
system.
6.15 Water Supply: Always ensure that water supply is adequate to meet the
demand. Ensure the pump chamber is full of water before starting the
pump. Failure to do this could result in seal damage. To ensure dry running
does not occur the pump must be primed as described in priming section
below. Do not run pump dry.
Comment
Unit is bar.
Will light up when the power is on.
If the motor speed is being controlled up or down the indicator flashes
quickly.
If the motor is at constant speed showing lack of water, it flashes
slowly. When pressure is reached and no demand the indicator stays
on.
Indicator lights up when controller is connected to a network (not
applicable for this product).
See section 9.12.
Displays current pressure value in bar.
The factory default setting is 3 bar.
Press ths button to decrease in 0.1 bar steps.
Press ths button to increase in 0.1 bar steps.
Press to stop the pump manually (or to exit Dry run protection).
Press to start the pump manually (or to exit Dry run protection).
- 18 –
OFF
ON
