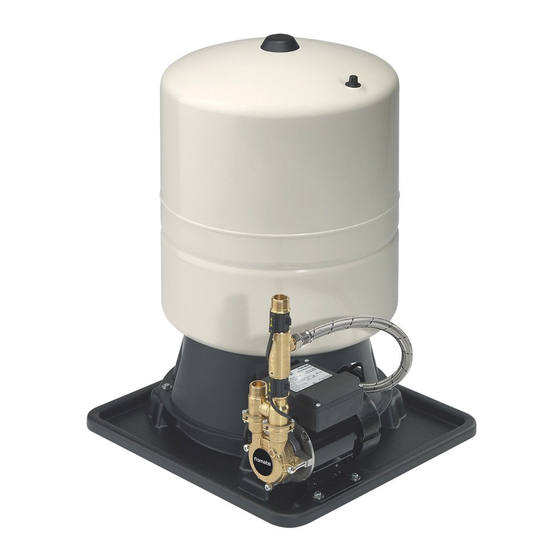

Flomate MBF Pumps
Installation & Maintenance Instructions
Please leave this instruction booklet with the owner as it contains
important guarantee, maintenance and safety information
Read this manual carefully before commencing installation.
This manual covers the following products:
MBF 60-1-15
Pt. No. 46631
MBF 80-1-15
Pt. No. 46634
PATENT
APPROVED
GB 2494485 A
CE compliant product

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the mainsboost MBF 60-1-15 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Stuart Turner mainsboost MBF 60-1-15

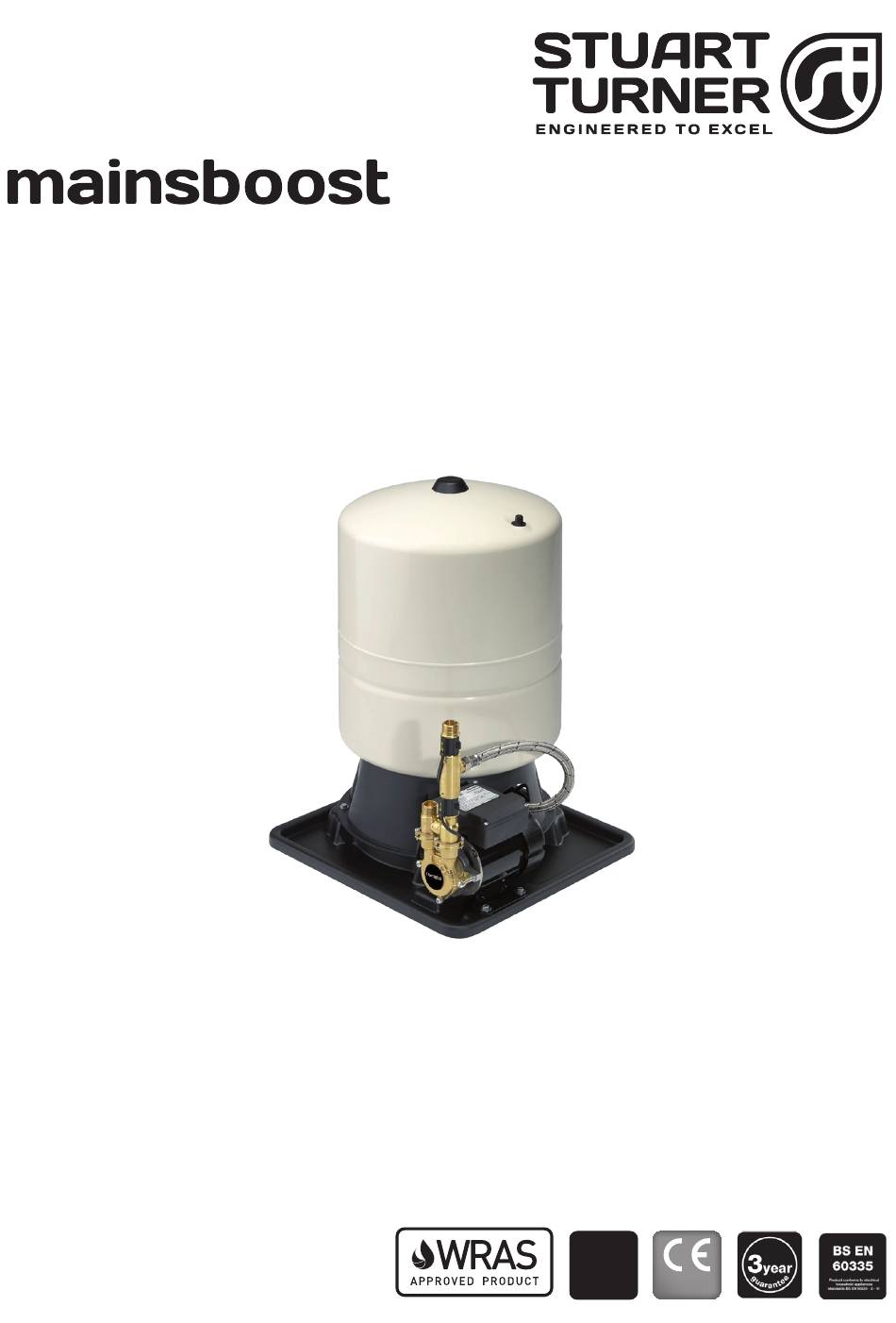

  • Page 1 Flomate MBF Pumps Installation & Maintenance Instructions Please leave this instruction booklet with the owner as it contains important guarantee, maintenance and safety information Read this manual carefully before commencing installation. This manual covers the following products: MBF 60-1-15 MBF 80-1-15 Pt.
  • Page 2 All the safety and operating instructions in this booklet must be followed. The pump must not be used for any other application without the written consent of Stuart Turner Limited. The pump must be installed by a qualified person. The pump is not suitable for heavy commercial/industrial applications.
  • Page 3: Table Of Contents

    Care must be taken to ensure the maximum pressure generated by the pump combined with the incoming mains water pressure does not exceed the units maximum operating pressure of 4.5 bar. Please read installation details carefully as they are intended to ensure this product provides long, trouble free service.
  • Page 4: Checklist

    CHECKLIST IMPORTANT: With the pump removed from its packaging check for any damage prior to installation. If any damage is found contact Stuart Turner Ltd within 24 hours of receipt. Schrader valve Pressure vessel Fig. 1 Item Description Qty Item Description...
  • Page 5: Important Facts - Read Before Commencing Installation

    1 IMPORTANT FACTS: READ BEFORE COMMENCING PUMP INSTALLATION A. Water temperature The water entering the pump must be controlled as follows: 1.11 The maximum allowable water temperature is 35 1.12 The minimum allowable water temperature is 4 B. Pipework - General 1.13 Secure pipework: Ensure pipework to and from pump is independently supported &...
  • Page 6: Location

    2 LOCATION - GENERAL 2.11 Access: For emergencies and maintenance the pump must be easily accessible. 2.12 Protection: The pump must be located in a dry position, frost free and protected from freezing. Ensure the pump is in a dry position, away from heat sources, such as radiators and heaters.
  • Page 7 2.18 Pipework Connections: Isolating valves: Always install isolating valves (not supplied) to both suction and delivery pipe to aid future maintenance. Typical installation Mains Boost Extra 60 (in cupboard) (Not supplied) Bypass (see note ‘c’ below) Inlet (see note ‘a’ below) Pressure reducing valve Typical installation...
  • Page 8: Electrical Installation

    3 ELECTRICAL INSTALLATION / EARTHING 3.11 Regulations: The electrical installation must be carried out in accordance with the current national electrical regulations and installed by a qualified person. 3.12 Safety: In the interests of electrical safety a 30 mA residual current device (R.C.D.
  • Page 9 If the supply cord is to be changed or is damaged, it must be replaced with a special cord assembly available from Stuart Turner or one of their approved repairers. On disassembly note the cord retention and routing system. Re-assemble to the same pattern.
  • Page 10: Priming

    This gives the pump chance to re-fill the vessel ready for next use. 4.13 For Further Technical Support: Phone the Stuart Turner PumpAssist team on +44 (0) 800 31 969 80. Our staff are trained to help and advise you over the phone.
  • Page 11: Technical Specification

    Filled Weight (maximum) 46.6 Kg 60.8 Kg Stuart Turner reserve the right to amend the specification in line with its policy of continuous development of its products. *Note: The maximum pressure that can be applied to the pump under any installation conditions.
  • Page 12: Trouble Shooting

    7 TROUBLE SHOOTING GUIDE Symptoms Probable Cause Recommended Action Pump will not start. No water. Check required flow of liquid is available to the fittings through outlets of approx. 0.6 l/min. Water supply. Check water supply from mains and all stopcocks are open. Electrical supply.
  • Page 13 P.C.B which is located within the terminal box. These should be checked electrically. Consult Stuart Turner for further instructions. 5. Repeat step 4 with the second reed clamp. Body...
  • Page 14 IMPORTANT – Ensure there is no contact with any of the internal parts of the terminal box. Briefly reconnect the mains power supply to the pump – the ‘power on light should illuminate if the pump has been correctly wired. Isolate the mains electrical power supply from the pump.
  • Page 15: Guarantee

    Proof of purchase should accompany the returned unit to avoid delay in investigation and dealing with your claim. You should obtain appropriate insurance cover for any loss or damage which is not covered by Stuart Turner Ltd in this provision. Please record here for your records. TYPE NO.
  • Page 16 Installers – Register with Stuart Turner and move up to Approved Installer status We receive thousands of enquiries every month from people seeking a Stuart Turner installer and by registering your details with us, we can offer consumers the opportunity to quickly locate an installer in their area.
