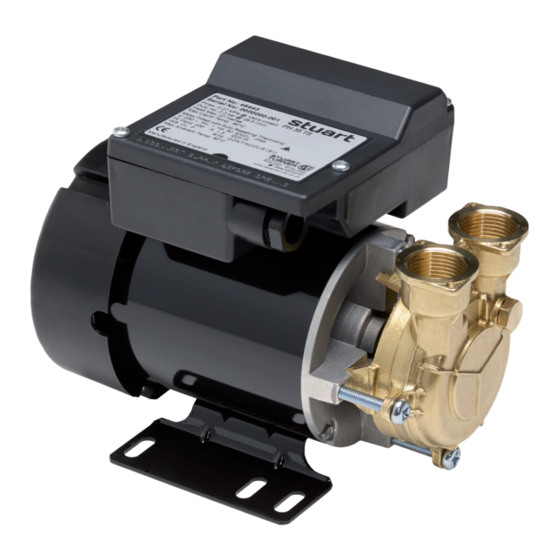

Electric motor driven peripheral pump

Advertisement

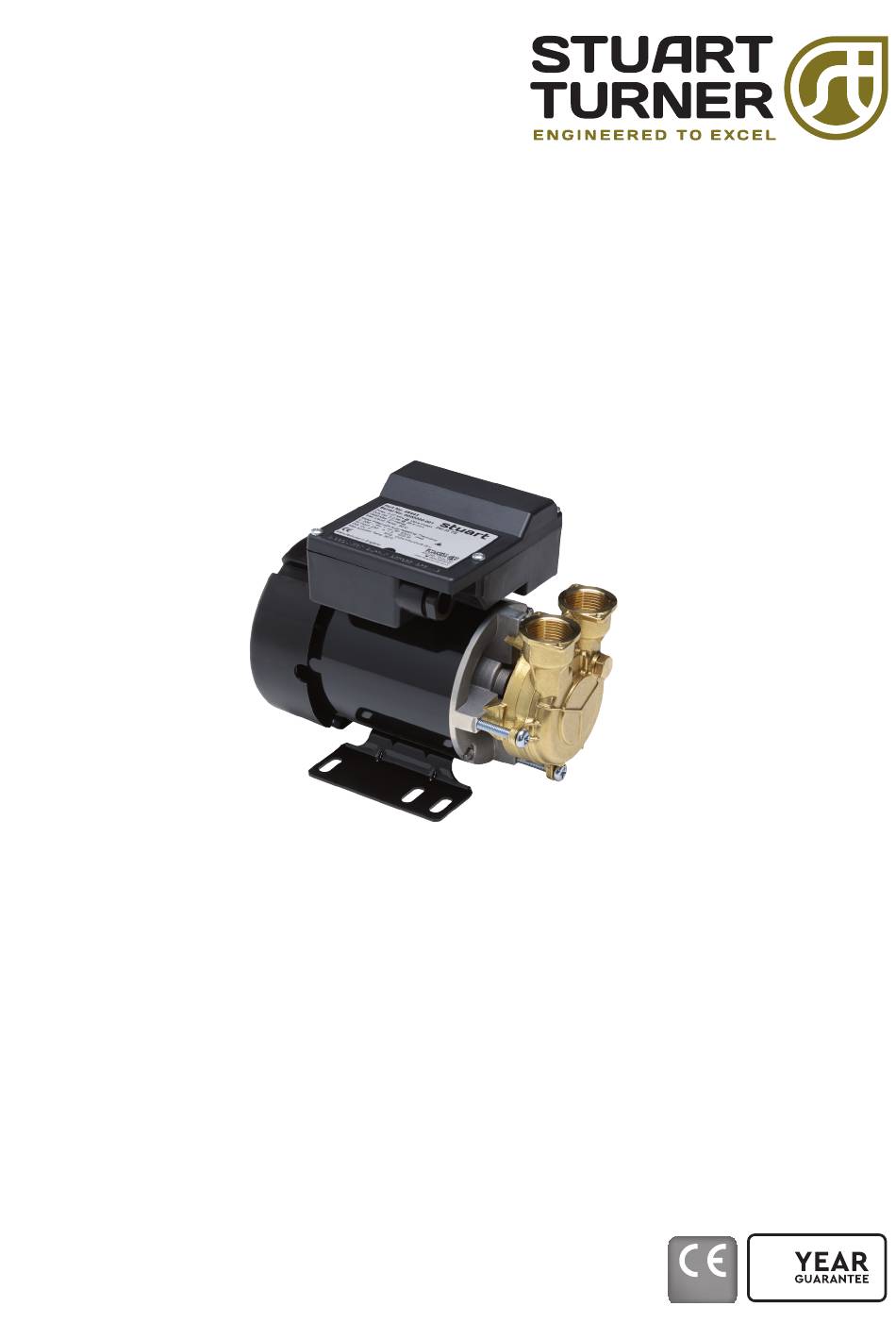

STUART
Installation, Operation & Maintenance
Instructions
Please leave this instruction booklet with the owner as it contains important
guarantee, maintenance and safety information
Read this manual carefully before commencing installation.
This manual covers the following products suitable for 230/1/50 supply:
PH 35 TS
Pt. No. 46496
PH 45 TS
Pt. No. 46504
PH 35 ES
Pt. No. 46563
PH 45 ES
Pt. No. 46564
FOR POSITIVE HEAD APPLICATIONS ONLY
50 Hz
PH 35 TS
Pt. No. 46445
PH 45 TS
Pt. No. 46448
PH 35 ES
Pt. No. 46451
PH 45 ES
Pt. No. 46454
CE compliant product
2

Advertisement

loading
Need help?

Need help?

Do you have a question about the STUART PH 35 TS and is the answer not in the manual?

Questions and answers

Summary of Contents for Stuart Turner STUART PH 35 TS

  • Page 1 STUART Installation, Operation & Maintenance Instructions Please leave this instruction booklet with the owner as it contains important guarantee, maintenance and safety information Read this manual carefully before commencing installation. This manual covers the following products suitable for 230/1/50 supply: PH 35 TS PH 35 TS Pt.
  • Page 2: Table Of Contents

    PRODUCT DESCRIPTION Electric motor driven peripheral pump. APPLICATION The PH range of peripheral pumps are designed for pressure boosting applications in vented stored, hot or cold, clean water systems. Inlet pressures to the pump and ambient temperatures must not exceed the values given in the technical specifications.
  • Page 3 WARNINGS: This pump set must not be used for any other application without the written consent of Stuart Turner Limited and in particular, must not be connected directly to the mains water supply. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given...
  • Page 4 If the supply cord is to be changed or is damaged, it must be replaced with a special cord assembly available from Stuart Turner or one of their approved repairers. Please read installation details carefully as they are intended to ensure this product provides long, trouble free service.
  • Page 5: Checklist

    CHECKLIST IMPORTANT: With the pump removed from its packaging check for any damage prior to installation. If any damage is found contact Stuart Turner Ltd within 24 hours of receipt. PH ES Fig. 1 PH TS Your product may vary slightly from the picture above.
  • Page 6: Important Facts - Read Before Commencing Installation

    1 IMPORTANT FACTS: READ BEFORE COMMENCING PUMP INSTALLATION A Water storage capacity. 1.11 The water storage capacity must be sufficient to meet the flow rates required by the pumped equipment and any other water using fittings and appliances, which may be operated simultaneously. DO NOT RUN PUMP DRY. 1.12 Ensure the pump is primed as described in the priming section before starting, damage to the shaft seal will result otherwise.
  • Page 7: Location

    2 LOCATION - GENERAL 2.11 Access: For emergencies and maintenance the pump must be easily accessible. 2.12 Protection: The pump must be located in a dry position, frost free and protected from freezing. 2.13 Ventilation: Ensure an adequate air flow to cool the pump. Separate the pump from other appliances that generate heat.
  • Page 8: Electrical Installation

    3 ELECTRICAL INSTALLATION / EARTHING 3.11 Regulations: The electrical installation must be carried out in accordance with the current local regulations by a qualified person. 3.12 Safety: In the interests of electrical safety a 30 mA residual current device (R.C.D. not supplied) should be installed in the supply circuit. This may be part of a consumer unit or a separate unit.
  • Page 9 3.21 If the supply cord is to be changed or damaged, it must be replaced by a special cord available from Stuart Turner or one of its approved repairers. - 9 -...
  • Page 10: Plumbing

    This product is maintenance free for its life, however it is a mechanical product and will eventually show signs of wear. Spare parts are available, for more information phone the Stuart Turner TechAssist team on +44 (0) 800 31 969 80.
  • Page 11: Technical Specification

    5 TECHNICAL SPECIFICATION PH 35 TS PH 35 TS PH 45 TS PH 45 TS Pump Model 50 Hz 50 Hz 50 Hz 50 Hz 46496 46445 46504 46448 General Guarantee 2 years WRAS approval Approved materials Approvals Pump type Peripheral Features Priming vent plug...
  • Page 12 Weight - including fittings 4.6 Kg 6.2 Kg Stuart Turner reserve the right to amend the specification in line with its policy of continuous development of its products. *Note: The maximum pressure that can be applied to the pump under any installation conditions.
  • Page 13: Trouble Shooting

    Check fuse (see fuse section). Check circuit breaker is set. Check wiring connections. Pump jammed. If motor ‘Buzzes’ switch off power and contact Stuart Turner. Integral motor Wait for thermotrip to auto-reset and thermotrip activated. check that duty point and run time is within specification (see technical specification).
  • Page 14: Guarantee

    Proof of purchase should accompany the returned unit to avoid delay in investigation and dealing with your claim. You should obtain appropriate insurance cover for any loss or damage which is not covered by Stuart Turner Ltd in this provision. Please record here for your records. TYPE NO.
  • Page 15 NOTES - 15 -...
  • Page 16 Signed ..........Stuart Turner are an approved company to BS EN ISO 9001:2015...
