Installation, Operation & Maintenance
Instructions
Please leave this instruction booklet with the home owner as it contains
important guarantee, maintenance and safety information
Read this manual carefully before commencing installation.
This manual covers the following products:
Supersub 230A
Pt. No. 46540
50 Hz
Supervort 140A
Pt. No. 46541
Supervort 240A
Pt. No. 46542
CE compliant product
Advertisement
Table of Contents
Related Manuals for Stuart Turner supersub 230a
Summary of Contents for Stuart Turner supersub 230a
- Page 1 Please leave this instruction booklet with the home owner as it contains important guarantee, maintenance and safety information Read this manual carefully before commencing installation. This manual covers the following products: Supervort 140A Supersub 230A Pt. No. 46541 Pt. No. 46540 Supervort 240A Pt. No. 46542...

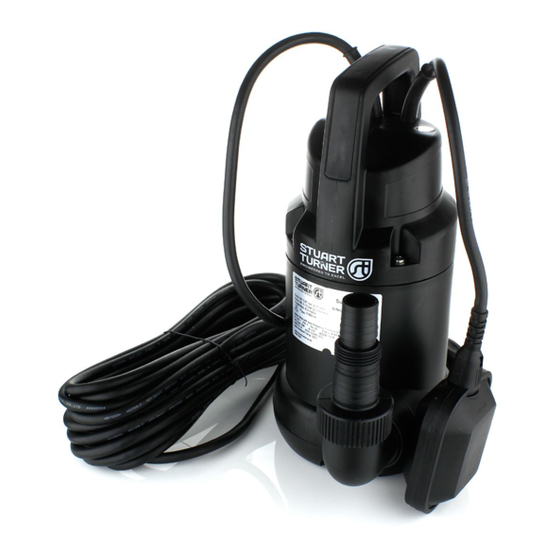

- Page 2 PRODUCT DESCRIPTION Electric motor driven submersible pump with float switch control on selected models. APPLICATION The submersible pump range is designed for re-circulation, drainage and transfer of fresh water in outdoor or indoor applications. Model types within the range which have the suffix ‘A’ incorporate an adjustable float switch assembly which provides automatic pump control.
-
Page 3: Table Of Contents
CONTENTS Page Checklist ............4 Important Facts - read before commencing installation . -
Page 4: Checklist
IMPORTANT: With the pump removed from its packaging check for any damage prior to installation. If any damage is found contact Stuart Turner Ltd within 24 hours of receipt. G 1½ F - 25/32 mm (bore hose) or G 1 M G 1½... -
Page 5: Important Facts - Read Before Commencing Installation
1 IMPORTANT FACTS: READ BEFORE COMMENCING PUMP INSTALLATION A. Water temperature The water entering the pump must be controlled as follows: 1.11 The maximum allowable water temperature is 35 1.12 The minimum allowable water temperature is 4 B. Pipework - General 1.13 All models are supplied with a 90 elbow and stepped hose connector (see pump connection section for details) which can be screwed directly into the pump... -
Page 6: Location
2 LOCATION - GENERAL 2.11 Access: For emergencies and maintenance the pump must be easily accessible. 2.12 Do not run against a closed valve for periods longer than 5 minutes. The water in and around the pump must not be allowed to freeze. This will result in pump damage. - Page 7 Fig. 7 Min. Size Of Sump Switch Movement Switch Movement START STOP CABLE START STOP CABLE PUMP TYPE (MIN.ADJ) (MIN.ADJ) (MIN.ADJ) (MAX.ADJ) (MAX.ADJ) (MAX.ADJ) Supersub 230A Supervort 140A Supervort 240A Chart shows min. and max. float switch adjustment Cont ... - 7 -...
-
Page 8: Pump Connections
3 PUMP CONNECTIONS 3.11 Supersub and Supervort pumps are supplied with a 90 elbow and stepped hose connector which can be screwed into the pump outlet port. Pump Pump Type Elbow Hose Connector Outlet Thread Hose Bore (mm) Supersub G1½ F G1½... -
Page 9: Electrical Installation
4 ELECTRICAL INSTALLATION 4.11 Regulations: The electrical installation must be carried out in accordance with the current national electrical regulations and installed by a qualified person. 4.12 Safety: In the interests of electrical safety a 30 mA residual current device (R.C.D. not supplied) should be installed in the supply circuit. This may be part of a consumer unit or a separate unit. - Page 10 4.22 Supply Cord Extension (Pump): The pumps are fitted with a supply cord suitable for outdoor and underwater use. The cord specification is as follows:- Pump Type Cord Type Cord Length (m) Supersub 230A HO5RN-F3 G 0.75 mm² Supervort 140A HO5RN-F3 G 0.75 mm² Supervort 240A HO5RN-F3 G 1 mm²...
-
Page 11: Commissioning
5.13 Turn on the electrical supply and water movement should be immediately evident from pump outlet. If it is not, repeat step 1. 5.14 For Further Technical Support: Phone the Stuart Turner PumpAssist team on +44 (0) 800 31 969 80. Our staff are trained to help and advise you over the phone. -
Page 12: Maintenance
6 MAINTENANCE 6.11 The water in and around the pump must not be allowed to freeze. This will result in pump damage. 6.12 Provision should be made for easy access to the pump to allow for regular maintenance. 6.13 The integral inlet filter grille should be checked periodically and cleaned if required. -
Page 13: Technical Specification
Pt No 20363 *This hose is suitable for the Supersub 230A and Supervort 240A models only. Stuart Turner reserve the right to amend the specification in line with its policy of continuous development of its products. 7.11 Noise: The equivalent continuous A-weighted sound pressure level at a distance of 1 metre from the pumpset does not exceed 70 dB(A). -
Page 14: Trouble Shooting
Float switch not Check the float switch by hand (do not working attempt to dismantle float switch) for (if fitted). further advice contact Stuart Turner. Pump runs but no Low water level. Ensure the pump is fully submersed water is supplied. -
Page 15: Guarantee
Installers – Register with Stuart Turner and move up to Approved Installer status We receive thousands of enquiries every month from people seeking a Stuart Turner installer and by registering your details with us, we can offer consumers the opportunity to quickly locate an installer in their area. -
Page 16: Declaration Of Conformity
Signed ......... Stuart Turner are an approved company to BS EN ISO 9001:2008...
