Installation, Operation & Maintenance

Instructions

Please leave this instruction booklet with the home owner as it contains

important guarantee, maintenance and safety information

Read this manual carefully before commencing installation.

This manual covers the following products:

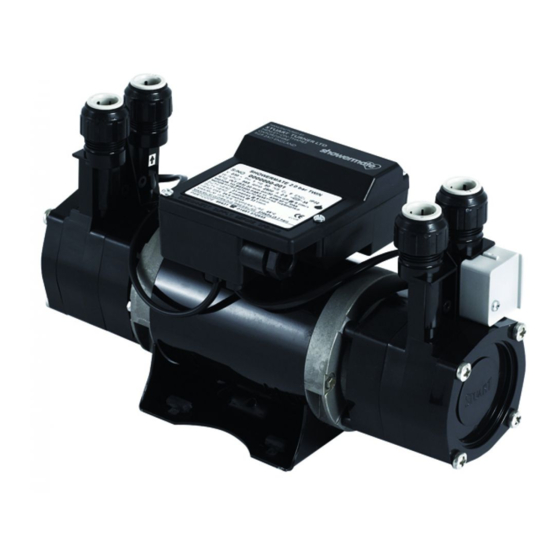

Showermate S2.6 bar Single

Pt. No. 46429

FOR POSITIVE HEAD APPLICATIONS ONLY

Pt. No. 46429 EXP

Showermate S1.8 bar Twin

Pt. No. 46407

Showermate S2.6 bar Twin

Pt. No. 46431

Pt No. 46407 EXP

Pt No. 46431 EXP

CE compliant product

Table of Contents

Need help?

Do you have a question about the Showermate S2.6 bar Single and is the answer not in the manual?

Questions and answers

Summary of Contents for Stuart Turner Showermate S2.6 bar Single

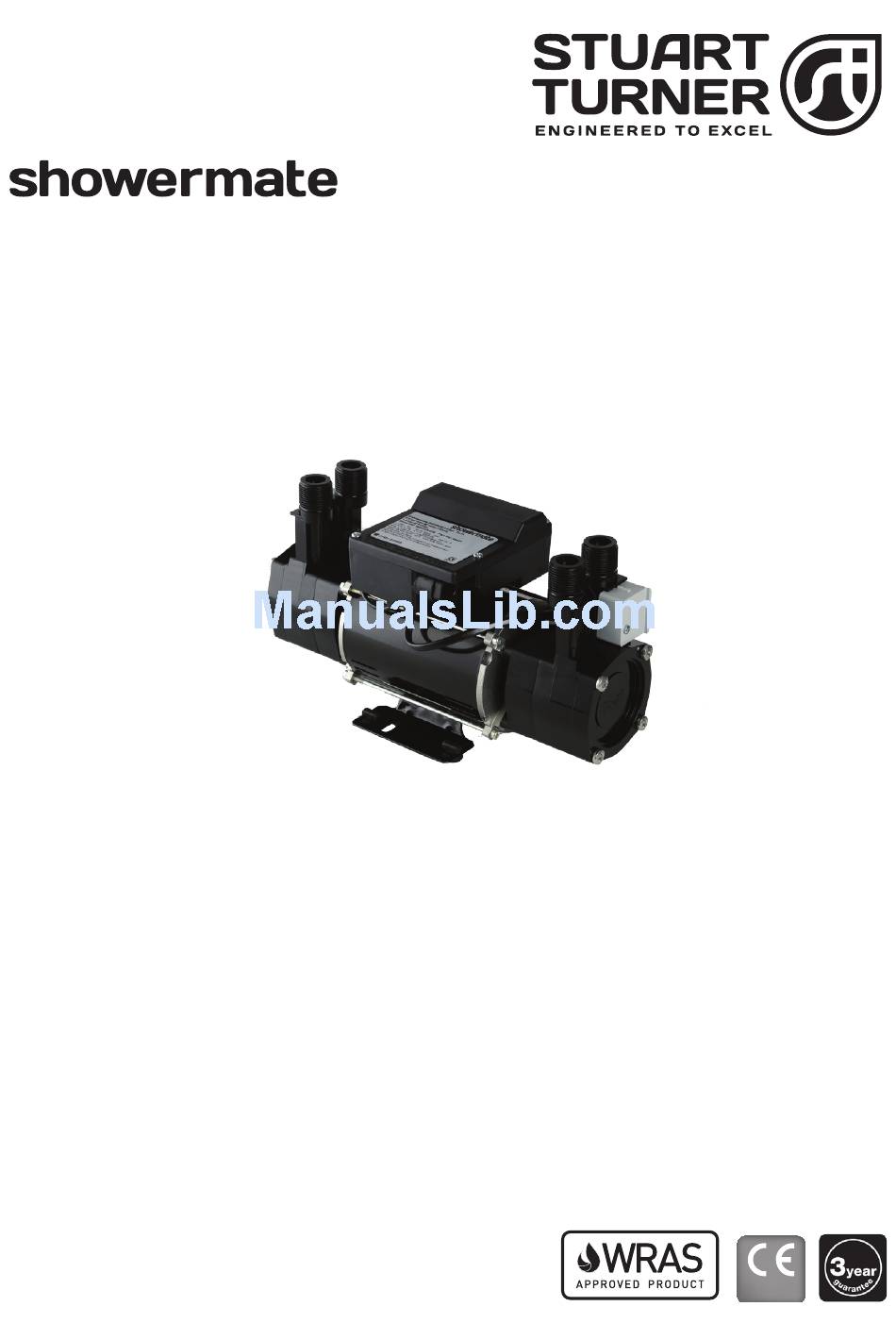

Page 1 Please leave this instruction booklet with the home owner as it contains important guarantee, maintenance and safety information Read this manual carefully before commencing installation. This manual covers the following products: Showermate S2.6 bar Single Showermate S1.8 bar Twin Pt. No. 46429 Pt. No. 46429 EXP Pt.
Page 2: Table Of Contents
Showermate Single pumps are not suitable for boosting a single side of a dual flow mixer valve or tap. Consult Stuart Turner for alternative pump. This pump set must not be used for any other...
Page 3: Checklist
IMPORTANT: With the pump removed from its packaging 15 mm pipework check for any damage prior to installation. If any damage is found contact Stuart Turner Ltd within 24 hours of receipt. Twin shown Fig. 1 Item Description Qty Item Description...
Page 4: Important Facts - Read Before Commencing Installation
1 IMPOTRANT FACTS: READ BEFORE COMMENCING PUMP INSTALLATION A. Water storage capacity. 1.11 The hot and cold water storage capacity must be sufficient to meet the flow rates required by the pumped equipment and any other water using fittings and appliances, which may be operated simultaneously.
Page 5: Location
2.20 Direction of flow: Ensure the water flow is in the direction of the arrow that is marked on the flow switch reed clamp (vertically upwards). 2.21 Flexible hoses: Only use the Stuart Turner hose set supplied with the pump. 2.22 Isolating valves: Separate system isolating valves (non restrictive) must be fitted to allow easy pump service.
Page 6 2 LOCATION - SINGLE PUMP Outlet head must be below bottom of cold water tank and able to pass a minimum of 0.8 l/min of gravity flow Single Pump System Fig. 2 2 LOCATION - TWIN PUMP Outlet head must be below bottom of cold water tank and able to pass a minimum...
Page 7 Hot water connection: 2.26 Hot water cylinder or storage tank: When a hot water cylinder or storage tank is used, ensure the pipework size from the cold water storage to the hot water storage is of adequate size and a minimum of 22 mm. 2.27 Hot water supply: The pump must be supplied with a dedicated feed direct from the hot water cylinder or storage tank, ensuring an air free connection to the pump.
Page 8 2.29 Non-preferred pump location: If it is necessary to position the Pump above the secondary tapping on the hot cylinder it is fed by, the risk of introducing air will be increased. To avoid this risk one of the two following solutions must be adopted: The use of a Stuart Top Entry (TE) cylinder flange.
Page 9: Pump Connections
3 PUMP CONNECTIONS Do not use stainless steel, chrome or nickel plated pipe with the flexible hose push-in plumbing connections. Do not introduce solder flux into the joint or surrounding area as connectors will be attacked and may fail. All solder joints should be completed and flux residues removed before final connection to push-in connections, on the flexible hose.
Page 10 3.12 Hose to pump: The pump inlet and outlet ports have fittings which are specifically designed for connection to the G ¾ female running nuts on the flexible hoses. The hose end running nut is fitted with a rubber sealing washer which is held captive within the nut assembly.
Page 11 2. Prior to inserting pipe into fitting, mark the insert depth on the wall of the pipe with a soft pencil at a distance of 31 mm from the end to be inserted (Fig. 9). 15 mm Pipe Pencil Mark Fig.
Page 12 3.14 Typical Low Level Installation: In certain installations it may be necessary to install a 90° bend on the inlet or outlet connections of the pump before the flexible hose to accommodate a low level installation. Below are some preferred connection options. All connections seal on the pump body using a fibre or rubber sealing washer.
Page 13: Electrical Installation
4 ELECTRICAL INSTALLATION 4.11 Regulations: The electrical installation must be carried out in accordance with the current national electrical regulations and installed by a qualified person. 4.12 Safety: In the interests of electrical safety a 30 mA residual current device (R.C.D. not supplied) should be installed in the supply circuit. This may be part of a consumer unit or a separate unit.
Page 14: Wiring Diagrams
If the supply cord is to be changed or is damaged, it must be replaced with a special cord assembly available from Stuart Turner or one of their approved repairers. On disassembly note the cord retention and routing system. Re-assemble to the same pattern.
Page 15 4.24 Cable Gland Fitting Instructions: Fig. 15 To enable correct assembly of the cable gland the ‘O’-ring (Fig. 15 item 1) must be placed over the cable before the clamping insert (Fig. 15 item 2) can be tightened. Note: Cable diameter range:- 6.5 mm to 9.5 mm. 4.25 Supply Cord Extension: The pumps are fitted with a supply cord to the following specification:- All models .
Page 16: Commissioning
Carefully check pump and pipework for leaks whilst pump running and stationary before leaving the installation unattended. 5.15 For Further Technical Support: Phone the Stuart Turner PumpAssist team on +44 (0) 800 31 969 80. Our staff are trained to help and advise you over the phone.
Page 17: Maintenance
6 MAINTENANCE 6.11 Turn off water supplies to the pump and release pressure by opening water outlets before attempting maintenance. 6.12 Water scale: As water is heated scale deposits are released in areas of hard water, scale can cause the mechanical seal to stick if left without use for long periods.
Page 18: Technical Specification
Weight (including fittings) 4.7 Kg 5.5 Kg 3.9 Kg Stuart Turner reserve the right to amend the specification in line with its policy of continuous development of its products. Note: For information on other voltages/frequencies which are not shown, consult PumpAssist on +44 (0) 800 31 969 80.
Page 19 Maximum permissible water temperature 65°C. 7.11 Noise: The equivalent continuous A-weighted sound pressure level at a distance of 1 metre from the pump does not exceed 70 dB(A). Cont ... - 19 -...
Page 20: Trouble Shooting
Check fuse (see fuse section). Check circuit breaker is set. Check wiring connections. Pump jammed. If motor ‘Buzzes’ switch off power and contact Stuart Turner. Integral motor thermotrip Wait for thermotrip to auto-reset and check that duty activated. point and run time is within specification (see technical specification).
Page 21: Guarantee
Proof of purchase should accompany the returned unit to avoid delay in investigation and dealing with your claim. You should obtain appropriate insurance cover for any loss or damage which is not covered by Stuart Turner Ltd in this provision. Please record here for your records. TYPE NO.
Page 22 Installers – Register with Stuart Turner and move up to Approved Installer status We receive thousands of enquiries every month from people seeking a Stuart Turner installer and by registering your details with us, we can offer consumers the opportunity to quickly locate an installer in their area.
Page 23 NOTES - 23 -...
Page 24: Declaration Of Conformity
Signed ..........Stuart Turner are an approved company to BS EN ISO 9001:2008...
