iBoost V200
6.12 The iBoost V200 control panel is seen mounted directly on the front of the
pump motor and has to be set up while the front cover is removed.
a) On switching on the power the display screen will light up showing two
figures, left hand being the system pressure and the right being the set
pressure, at this stage they will both be "0.0" bar. Please note the unit is
factory set to 3 bar.
b) Open a tap and then press "RUN" to start the pump.
c) At any time press "STOP" to stop the pump.
d) Use the "" and " " buttons to increase or decrease to the desired
operating pressure of the unit (right screen) and the unit will adjust itself
to match as can be seen on the left screen.
e) Now open another tap the unit will sense the increase in demand and
increase its performance to match demand accordingly.
f) When no flow is detected, the unit will slow the pump to a standby mode.
g) Once the iBoost V200 target pressure has been set the pressure vessel
pre-charge must be adjusted accordingly to ensure correct function of
the unit, see section 7.11 for instruction on how to set the pre-charge. This
must be completed both on first installation and checked every 12 months.
2
1

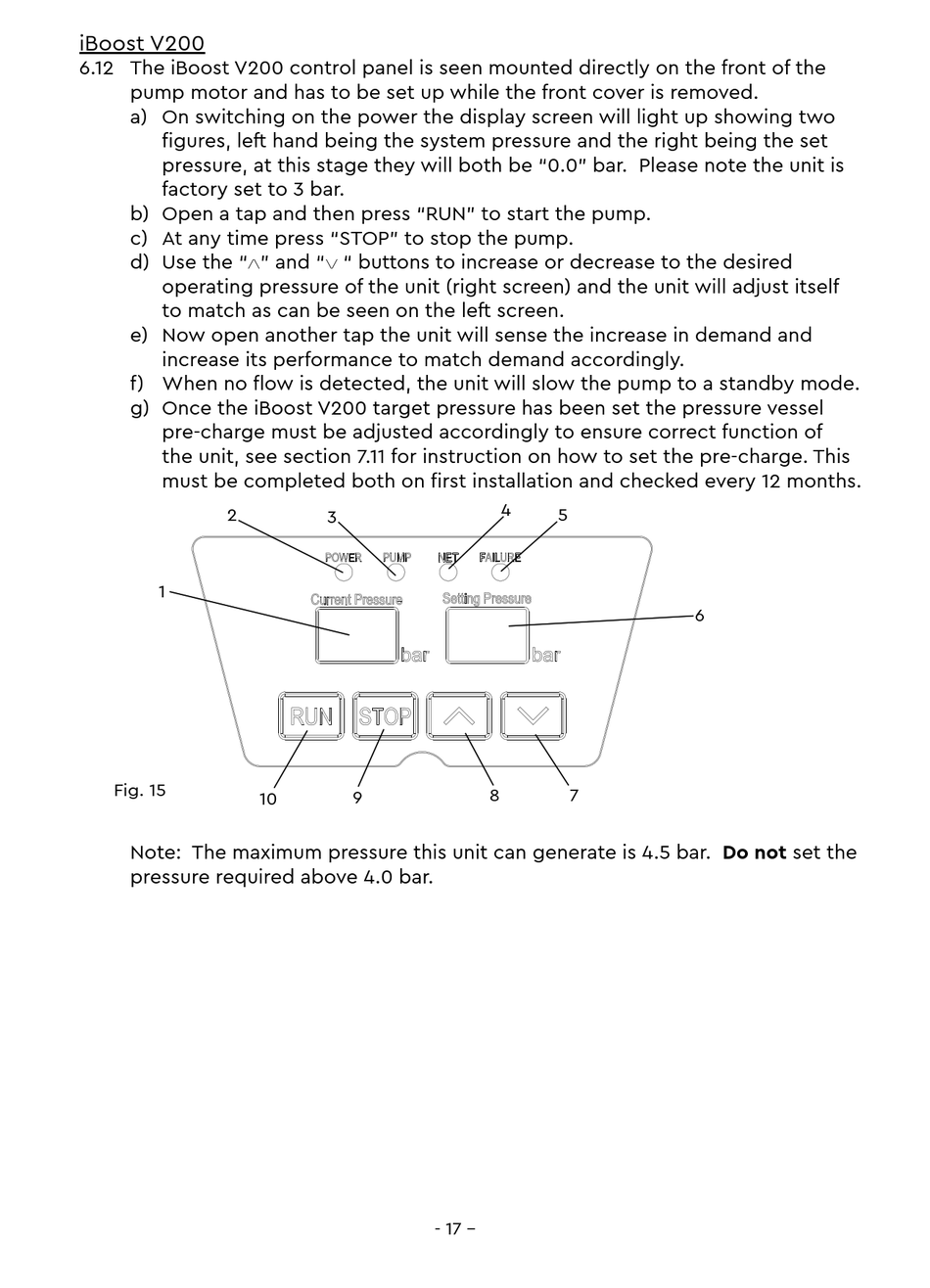

Fig. 15
Note: The maximum pressure this unit can generate is 4.5 bar. Do not set the
pressure required above 4.0 bar.
