7.
5-PIN DMX IN
8.
5-PIN DMX OUT
9.
3-PIN DMX IN
10.
3-PIN DMX OUT
11.
POWER IN
12.
POWER OUT

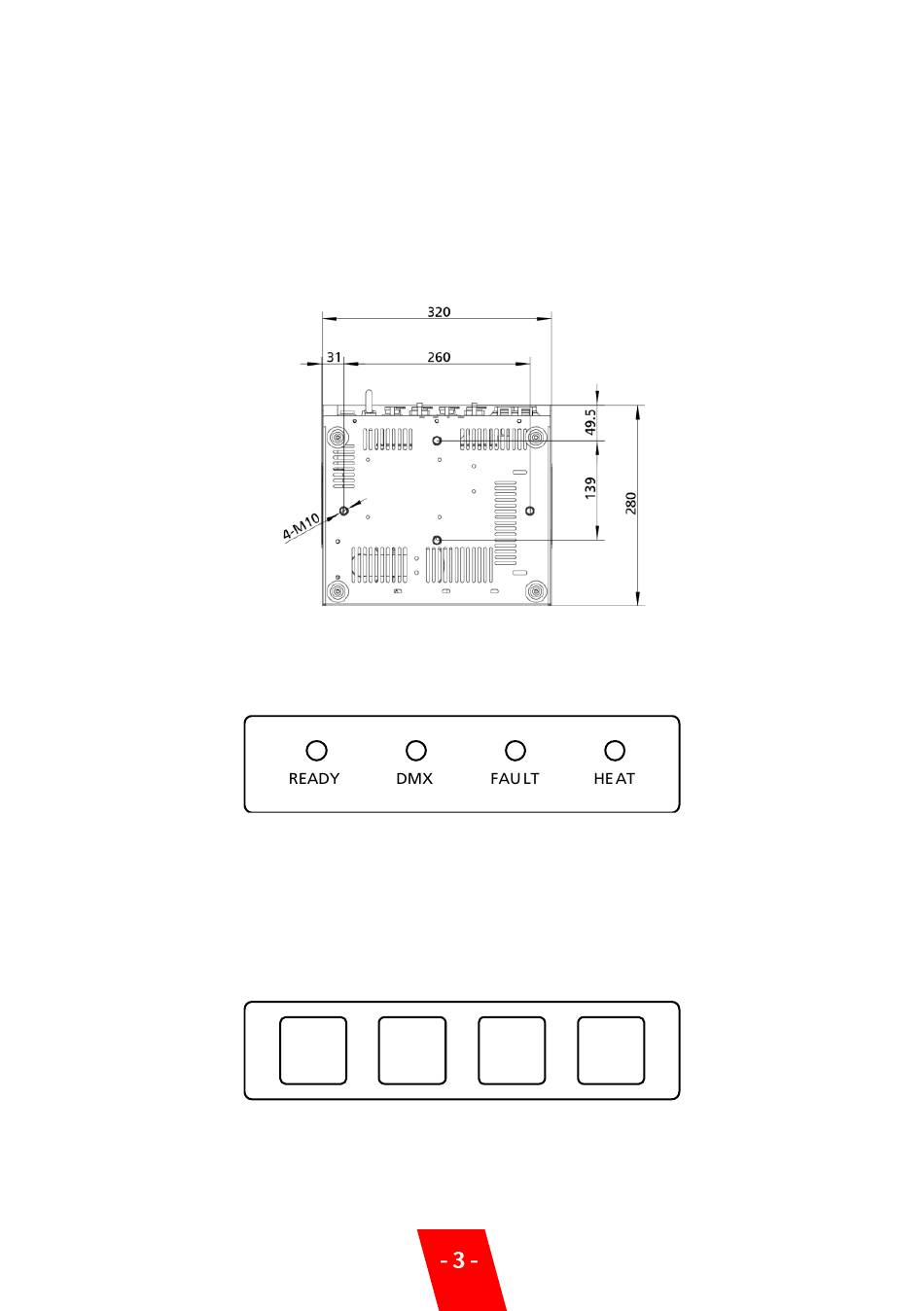

Diagram of Bottom Panel
Operation Panel
Δ
1. LED display area
READY: Green light flashing means heating up. Turns from flashing into long on, indicates that
the machine is ready to work
DMX:
Flashing shows that DMX signal is connected, light OFF means there is no DMX signal
FAULT: Light ON when error occurs
HEAT:
Light ON when system is heating up
2. Control button area
MENU: Press to switch through menu, press and hold for 3s enter advanced menu
DOWN: Parameter down
UP:
Parameter up
ENTER: Confirm and save parameters
MENU
DOWN
UP
ENTER
