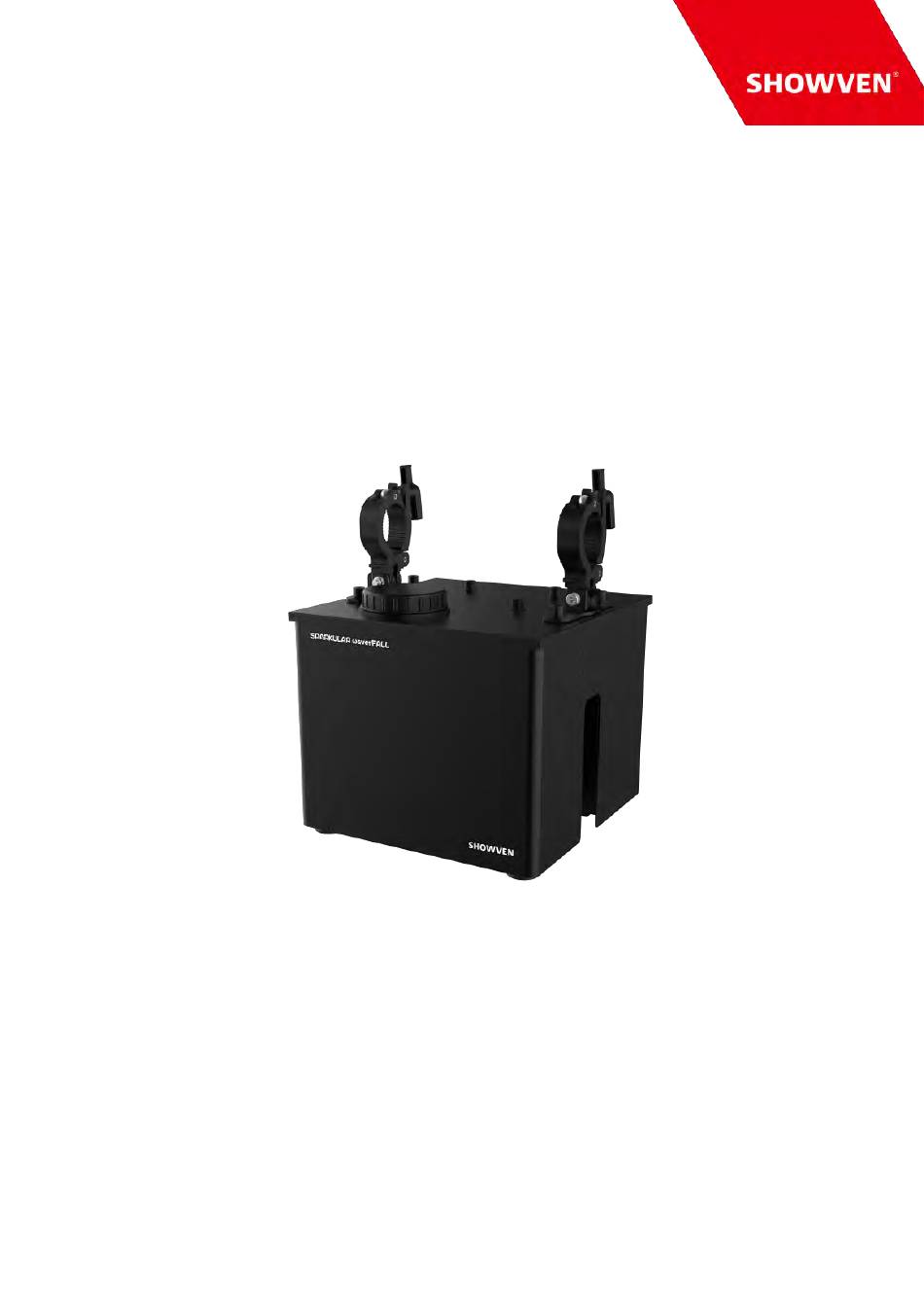

- Page 1 USER MANUAL SPARKULAR WAVERFALL V1.0 2024/03/21 Showven Technologies Co., Ltd. PREMIUM FACTORY - OFFICIAL DISTRIBUTOR info@premiumfactory.eu | www.premiumfactory.eu...
- Page 3 Thanks for choosing SPARKULAR waverFALL, we wish it will sparks up your show. ® Please read the following manual carefully before operating this product. Safety Instructions Δ Unauthorized repair are prohibited, it may cause serious incident. SPARKULAR waverFAL can be used in rain, please keep the device dry after use. ®...

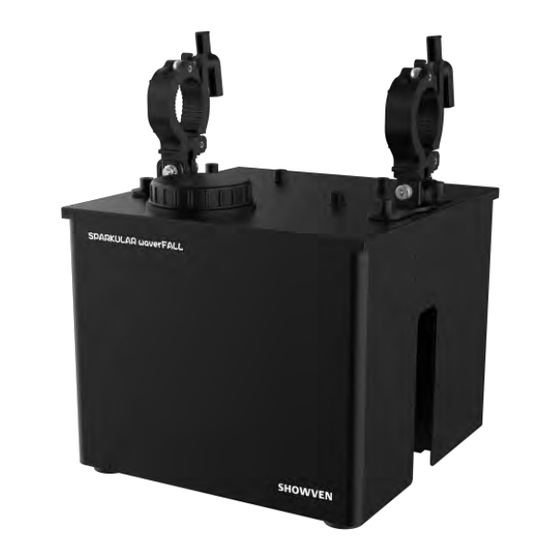

- Page 4 Description Δ SPARKULAR® waverFALL is 180°waving spark fall effect originally developed by SHOWVEN. It can firing in any single direction between -90° to 90° or in waving sequences. With 72 preset firing sequences and various editable sparks effect brings infinite creativity to your stage. It can also combined with SPARKULAR WAVER to generate a spark effect in any direction of 360 degrees.
- Page 5 ® Structure of SPARKULAR waverFALL Δ 1. Feeding Hopper Lid 2. Clamp 3. ARM alarming light 4. Display Screen 5. Power Switch 6. Fuse 7. Power IN 8. Power OUT 9. 3-PIN DMX OUT 10. 3-PIN DMX IN 11. 5-PIN DMX OUT 12.
- Page 6 UP: Parameter up DOWN: Parameter down MONI: Status monitoring of main part inside machine 2. Monitoring Interface From this interface, we can check the voltage and motor status of machine. 3. RFID area RFID card come with consumable HC8200 bags, swiping card to identify parameters and types of granules.
-
Page 7: Error Information
Background color of DMX area: red means DMX connected. Background color of TEMP area: red means heating chamber temp. reached setting temp. machine is ready for firing. Indicator light status on power switch: flash means machine is heating up, long on means temp. reached setting temp. - Page 8 Motor can’t waving when OFF Key Sound ON/OFF Keypad press sound setting *For better performance of SPARKULAR waverFALL, please don’t change the default value ® without permission from SHOWVEN ® 6. DMX Channel Mode SPARKULAR waverFALL occupies 6 operational channels.
- Page 9 Channel Function Value 0~255: angle change from -90° to 90° Manual Angle setup 128: straight upward (0°) Manual Nozzle 0 and 255: Max Speed Waving Speed setup 1~254: Speed increase 0~15: Firing OFF 16~90: Firing height low Firing ON/OFF 91~170: Firing height medium 171~255: Firing height high Maxi.
- Page 10 Channel 5 (CH5): Firing Sequence SPARKULAR waverFALL has 72 preset sequences, operator use related channel DMX value or sequence No. to access certain sequence. Below, you can find sequence list. CH5 DMX Ignition angle Description Firing Duration Reference Value Any angle...
- Page 11 (-45°)~ 45° ~ (-45°) Fast waving 10 times 77-79 (-30°)~ 30° ~ (-30°) 80-81 Fast waving 10 times (-15°)~ 15° ~ (-15°) Fast waving 10 times 82-84 (-75°)~ 0° ~ (-75°) Fast waving 10 times 85-86 (-60°)~ 0° ~ (-60°) Fast waving 10 times 87-89 (-45°)~ 0°...
- Page 12 D: Clear Material 3s. Please replace the battery when the indicator light on remote controller is weak. Battery mode: 9V stacked battery. Remote controller for SPARKULAR waverFALL is optional accessory. 8. SHOWVEN HOST CONTROLLER ZK6200/6300 control: When use our host controller control SPARKULAR waverFALL please press “F3”...
- Page 13 ® 2. Fill SPARKULAR waverFALL a) Open powder bags and fill the feeding hopper. b) Choose correct consumable according to the hanging height and safety distance.. SPARKULAR waverFALL can only use HC8200 LARGE / LARGE I / LARGE II. ® HC8200 Effect length (Low Output) Effect length (High Output)
- Page 14 Plug in a DMX terminator into the DMX OUT in last unit of machine to improve signal reliability. Signal amplifier is required for long distance (>200m) DMX signal transmission (SHOWVEN DMX splitter 8 with bidirectional signal transmission, thus can get signal feedback from device).
- Page 15 FLAMER-6CH”, then set the firing sequence, as for preset sequence the firing duration is fixed, so please set firing duration 1s. Please do allocate different DMX address for each unit of SPARKULAR WAVERFALL (6 channels), otherwise it will cause signal interference.
- Page 16 (except for the instrument damage caused by human factors) in warranty period. Please don't repair machine without factory permission Below situations NOT included in warranty service: Damage caused by use other type of consumable which is not from SHOWVEN ® SHOWVEN authorized distributor.
- Page 17 ASK US FOR YOUR PROFESSIONAL PRICES ! PREMIUM FACTORY SAS - OFFICIAL DISTRIBUTOR 1 Route Neuve, 71710 MONTCENIS – FRANCE Office +33 805 69 13 27 | +33 608 630 452 info@premiumfactory.eu | www.premiumfactory.eu...
