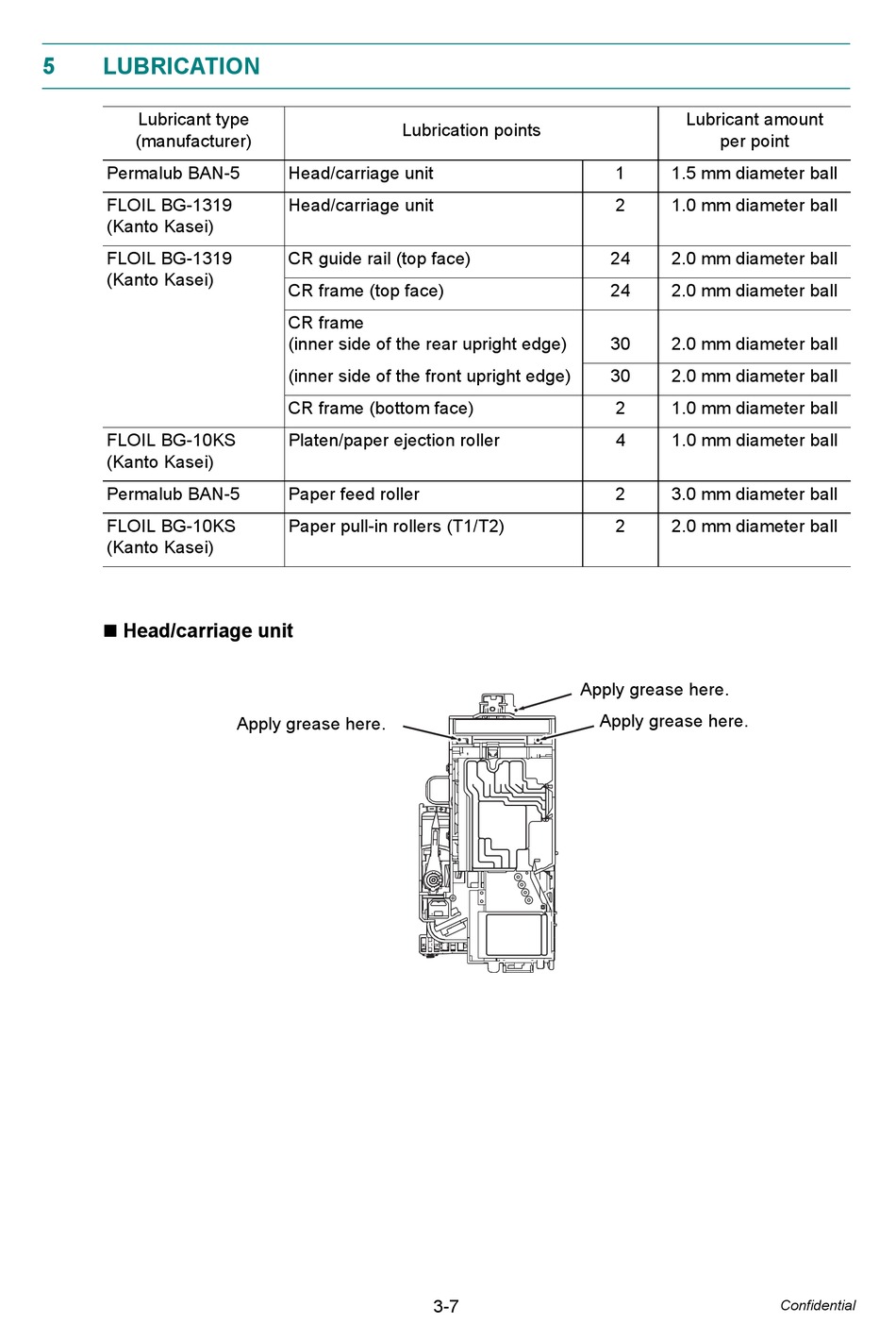

LUBRICATION

Lubricant type
(manufacturer)
Permalub BAN-5
FLOIL BG-1319
(Kanto Kasei)
FLOIL BG-1319
(Kanto Kasei)
FLOIL BG-10KS
(Kanto Kasei)
Permalub BAN-5
FLOIL BG-10KS
(Kanto Kasei)
 Head/carriage unit
Lubrication points
Head/carriage unit
Head/carriage unit
CR guide rail (top face)
CR frame (top face)
CR frame
(inner side of the rear upright edge)
(inner side of the front upright edge)
CR frame (bottom face)
Platen/paper ejection roller
Paper feed roller
Paper pull-in rollers (T1/T2)
Apply grease here.
Apply grease here.
Apply grease here.
3-7
Lubricant amount
per point
1 1.5 mm diameter ball
2 1.0 mm diameter ball
24 2.0 mm diameter ball
24 2.0 mm diameter ball
30 2.0 mm diameter ball
30 2.0 mm diameter ball
2 1.0 mm diameter ball
4 1.0 mm diameter ball
2 3.0 mm diameter ball
2 2.0 mm diameter ball
