Device Connection - Pepperl+Fuchs OBD30M-R2000-4EP Manual

2-D Laser Scanner
Installation
Figure 5.1
Note
Keep the emitting/receiving area clear
During assembly, make sure that the emitting/receiving area is kept clear. If the
emitting/receiving area is covered, this reduces the performance of the 2D laser
scanner.
5.4

Device Connection

Electrical connection in line with IP65
1.
Put protective covers on unused M12 connectors.
The device conforms to protection class III. This means that the power has to be
supplied as a low protective voltage (PELV).
The power supply of the device is 10 VDC ... 30 VDC. On account of the inte-
grated motor, an increased level of startup current is required compared with nor-
mal operation. It is recommended that power supplies with 1 A (at 24 V) or with
2 A (at 12 V) are used.
The maximum cable length is 30 m.
The pin assignment is as follows:
16
70
3 x M5
CLASS 1
LASER PRODUCT
IEC 60825-1: 2007 certified.
Complies with 21 CFR
1040.10 and 1040.11 except
for deviations pursuant to
Laser Notice No. 50,
dated June 24, 2007
20 20
106

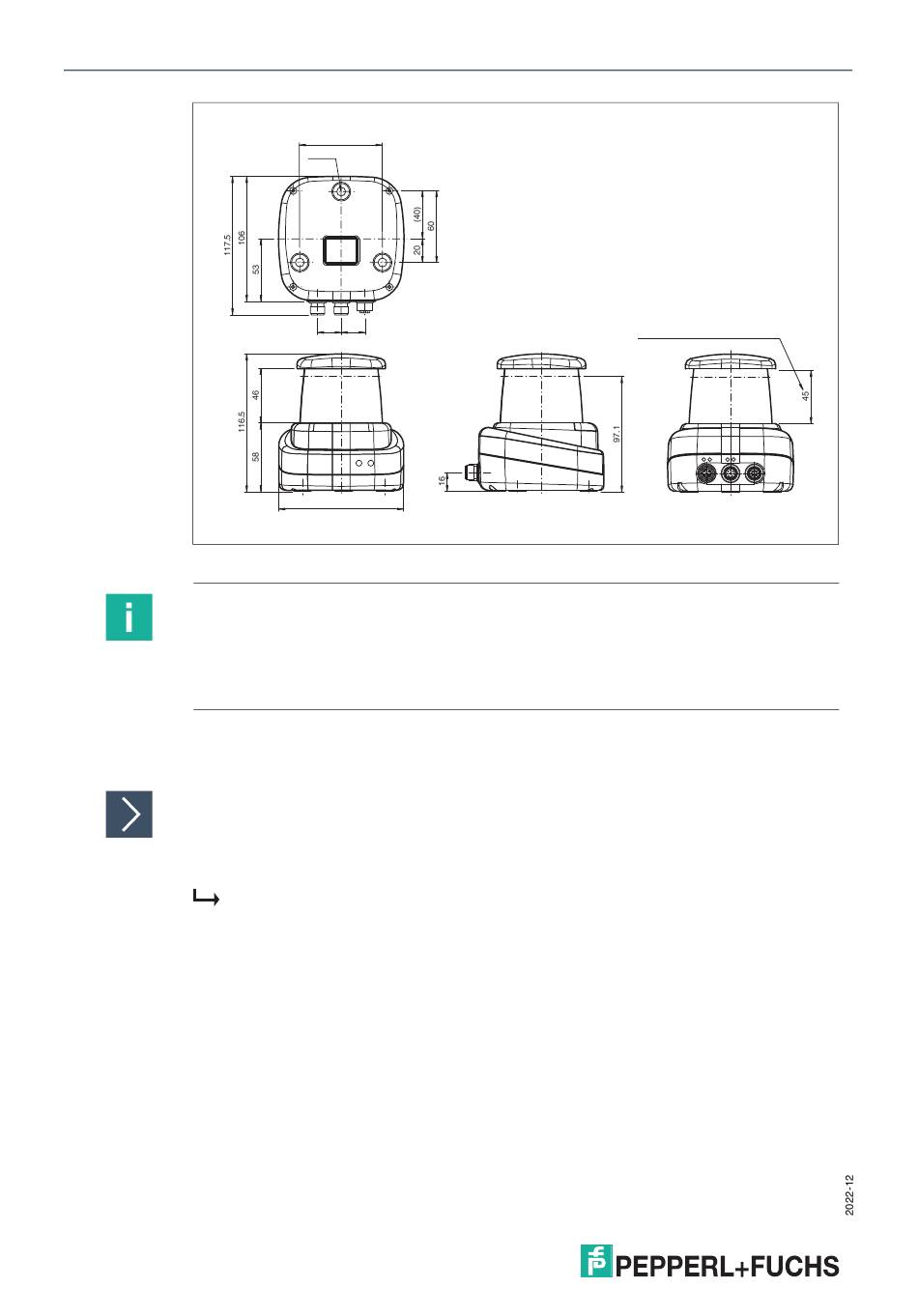

Dimensional drawing R2000
The IP65 protection class is achieved. The protective covers can be ordered
as accessories .
Emitter range and receiver range
