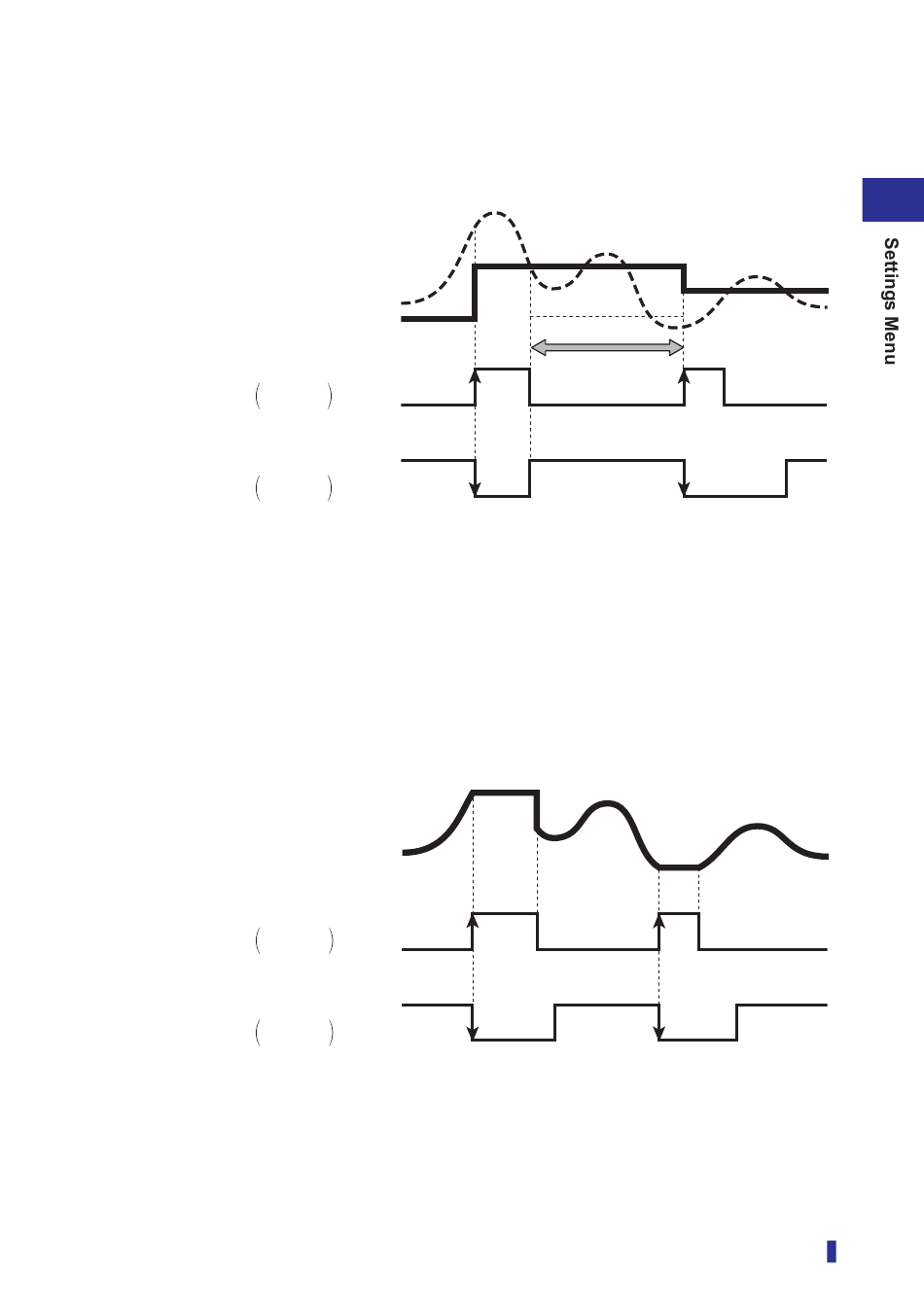

• Average value: When "Trigger on" is selected as the input mode, the average value while the external
input (hold input) is off is displayed and held as the next rising edge.
When "Trigger off" is selected as the input mode, the average value while the external
input (hold input) is on is displayed and held as the next falling edge. (Control output/
Analog output)
Input Hold Mode
Input mode
Trigger on
Input Hold Mode
Input mode
Trigger off
• Normal: When "Trigger on" is selected as the input mode, the measured value is held while the external
input (hold input) is on.
When "Trigger off" is selected as the input mode, the measured value is held while the external
input (hold input) is off. (Control output/Analog output)
Input Hold Mode
Input mode
Trigger on
Input Hold Mode
Input mode
Trigger off
Ramco Innovations 800-280-6933
Measured value
ON
OFF
ON
OFF
Measured value
ON
OFF
ON
OFF
Sampling period
www.ramcoi.com nsales@ramcoi.com
[D] Input
3-39
