4-2 Front Panel Operations of the UR

4-2-1 Overview of Display Operations

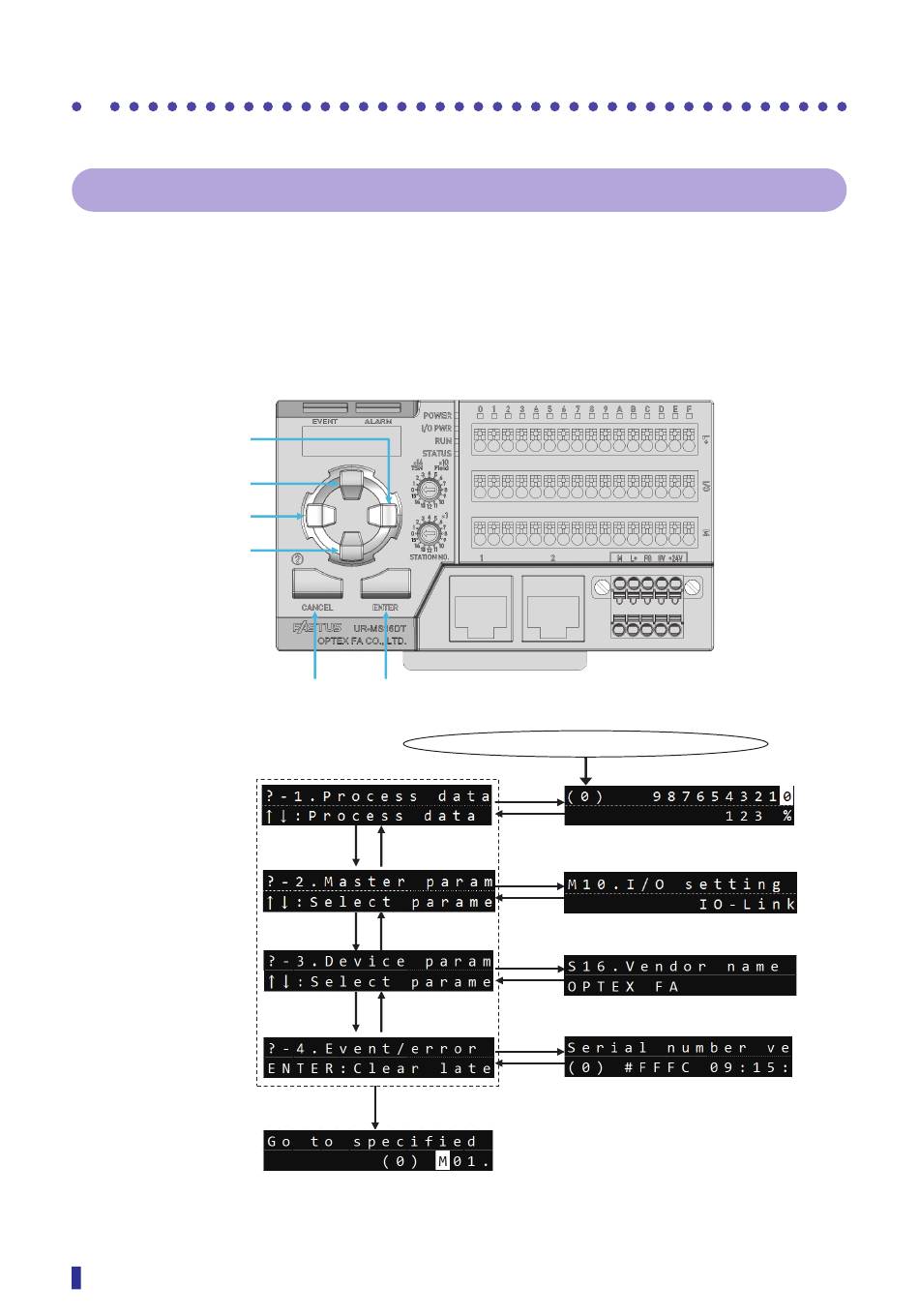

The following display operations can be made through the front panel of the UR.
• Process data display
• Master parameter display
• Device setting display
• Event/error display
The displays are operated, using the following keys.
[→] key
[↑] key
[←] key
[↓] key
Process data display
Master parameters
Device setting value
Event/error display
Front Panel Operations of the UR
4-4
Ramco Innovations 800-280-6933
[CANCEL] key [ENTER] key
Index display
[↓] [↑]
[↓]
[↑]
[↓] [↑]
[CANCEL]
After selecting language and turning power on
Examples of top displays
[ENTER]
[CANCEL]
[ENTER]
[CANCEL]
[ENTER]
[CANCEL]
[ENTER]
[CANCEL]
