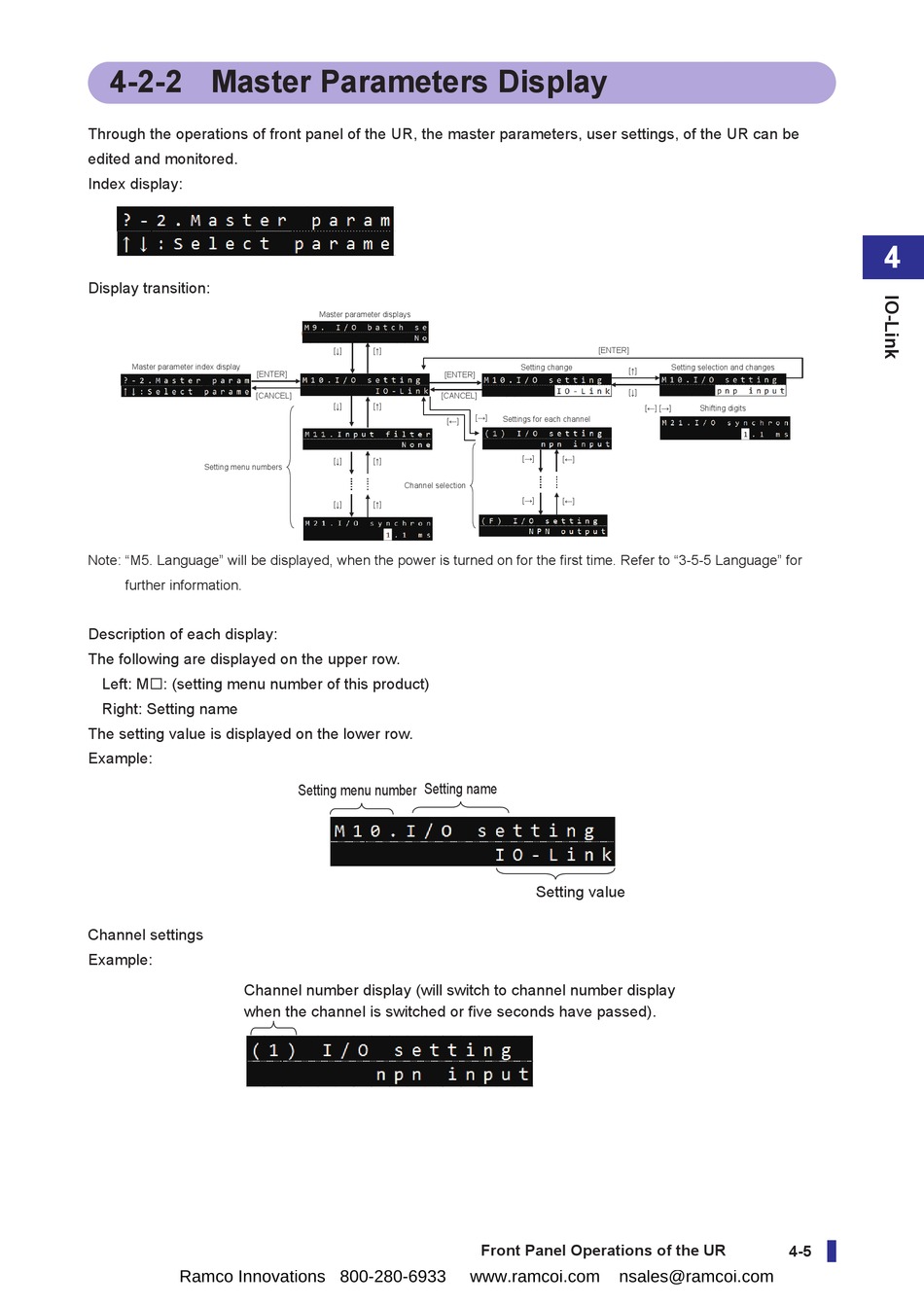

4-2-2 Master Parameters Display

Through the operations of front panel of the UR, the master parameters, user settings, of the UR can be
edited and monitored.
Index display:
Display transition:
Master parameter index display
[ENTER]
[CANCEL]
Setting menu numbers
Note: "M5. Language" will be displayed, when the power is turned on for the first time. Refer to "3-5-5 Language" for
further information.
Description of each display:
The following are displayed on the upper row.
Left: M£: (setting menu number of this product)
Right: Setting name
The setting value is displayed on the lower row.
Example:
Channel settings
Example:
Channel number display (will switch to channel number display
when the channel is switched or five seconds have passed).
