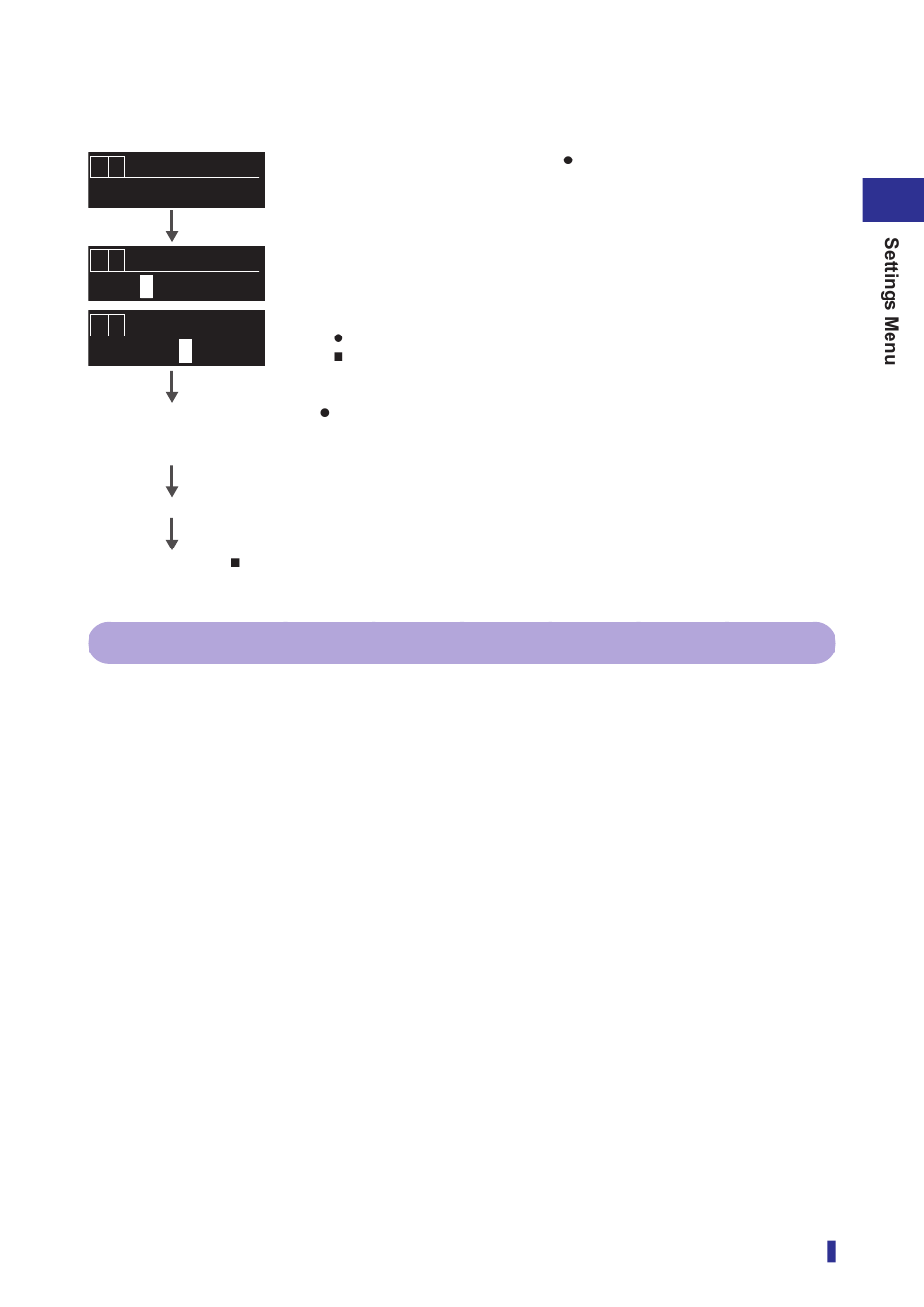

Number-based changes
„
Measured value offset / Mask near / Mask far / Error mode / Error hold time
A 7 Measured value offset
0.0mm
A 7 Measured value offset
+ 0000.0mm
A 7 Measured value offset
+ 00 0.0mm 3
After editing the rightmost digit, press the
If a value that cannot be set is entered, the numerical value display will flash,
and the leftmost digit will be highlighted (prompting the user to set the value again).
Press the + or - key to move to the next item to be configured.
When finished, press the key twice to return to RUN mode.

3-1-2 [A1] Sampling period

Sets the time needed to perform one measurement (sampling time).
The CD2H uses automatic sensitivity compensation to ensure the optimal received light amount within a set
sampling period.
When using a high-speed setting (such as 133.3 μs), the response time becomes very fast, but the received
light amount is reduced. This may prevent measurement from being possible at long distances, for black
targets with minimal reflection, or for tilted targets. In such situations, set a longer sampling period or change
the setting to Auto.
The response time will be slower when set to a longer sampling period, but this will allow more time for
capturing light. Note that setting the sampling period longer than necessary will result in high saturation.
When set to Auto, the sampling period is always changed to the optimum value so that measurements can
be performed with the optimum received light amount.
Use the received light waveform mode to check the received light amount.
• Setting value: 133.3 μs / 150 μs / 200 μs / 300 μs / 500 μs / 1 ms / 2 ms / 5 ms / AUTO
• Auto: The sampling period is automatically adjusted to ensure the fastest sampling time according to the
received light amount from the target.
• Default value: 200 μs
Ramco Innovations 800-280-6933
Select one of the above setting items and press the
The leftmost digit will be highlighted.
Press the + or - key to edit the highlighted value.
Press the key to select the digit to the left.
Press the key to move the highlight to the left.
key to confirm the set value.
key.
[A] Measurement
